Small chocolate depositor machine automatic chocolate making machine chocolate depositor machine

Short Description:

Send email to us Download as PDF

Product Detail

Product Tags

Overview

Quick Details

Condition:: New, New

Applicable Industries:: Hotels, Food & Beverage Factory, Restaurant, Home Use, Food Shop

After Warranty Service:: Online support

Local Service Location:: None

Showroom Location:: None

Brand Name:: LST

Place of Origin:: Sichuan, China

Voltage:: 220V/110V

Power(W):: 3kw

Dimension(L*W*H):: 1140*640*1440mm

Weight:: 340kg

Certification:: CE ISO

Application fields:: Snack food factory, Bakery, Beverage Factory

Machinery Function:: depositing

Raw material:: chocolate

Output product name:: one shot chocolate

Key Selling Points:: Multifunctional

Application:: Chocolate

After-sales Service Provided:: Engineers available to service machinery overseas

Material:: SSS304

Drive:: 4sets of servo motor drive

Function:: Chocolate Process

Warranty:: 1 Year

Small chocolate depositor machine automatic chocolate making machine chocolate depositor machine

product display

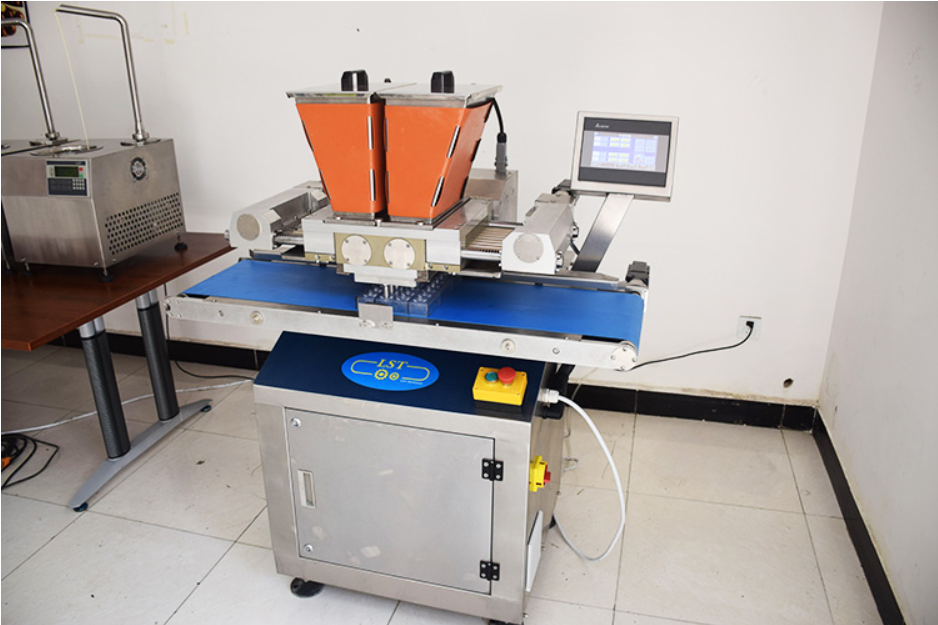

M2D8O2 mini one-shot depositor is able to produce many different kinds of high quality chocolate candies, such as chocolate blocks, chocolate and nuts mix, center filling, etc. The compact structure and advanced technologies makes it popular at home and abroad.

Moulds	275175mm,275135mm
Pistons	Standard 2*8 Φ 20mm Pistons
Heating	Separated heating for hoppers and valves
Conveyor Belt	Removable conveyor belt
Cleaning	Automatic hopper cleaning
Drive Motor	All movements are activated by 4 sets of 0.4kw servo motors
PLC	Standard DELTA PLC, Siemens PLC available
Productivity	Up to 150kg
Power	110/220V-single phase 50/60HZ, or customized

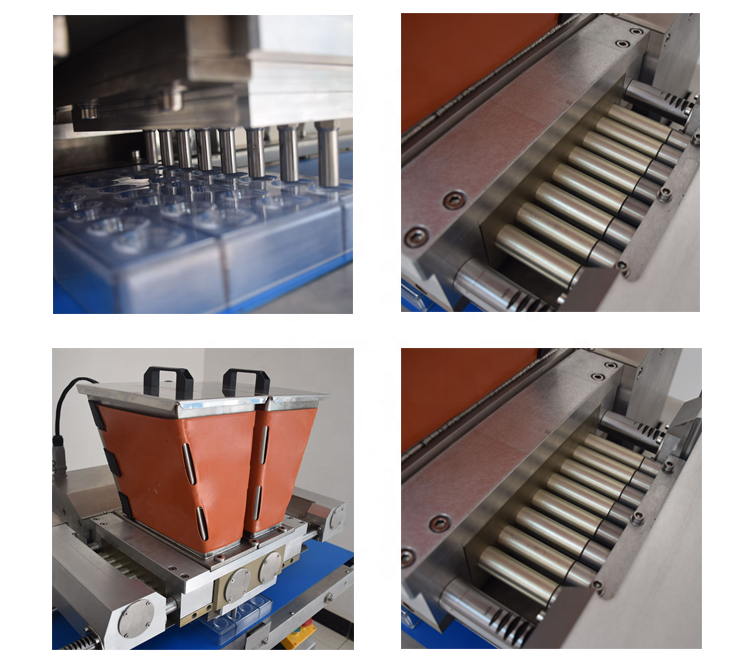

Product details

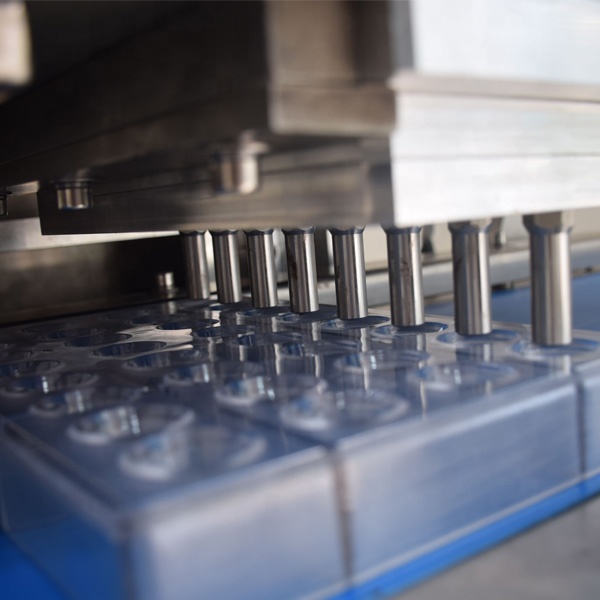

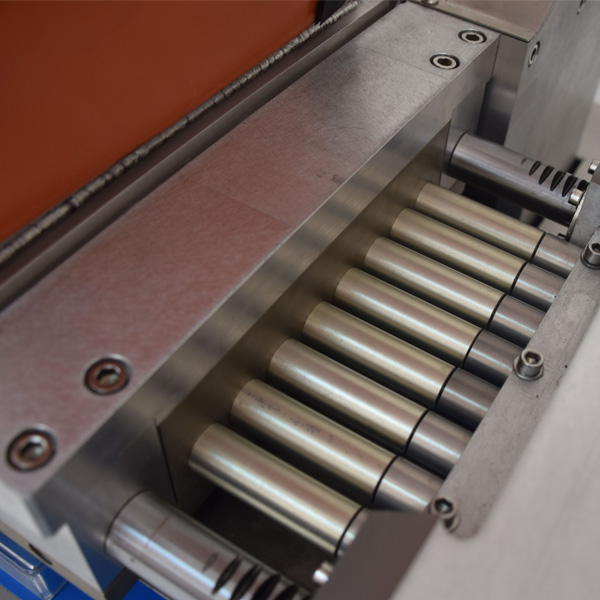

2*8 pcs, diameter 20mm Piston

8 Depositing One-shot Nozzels

Emergency Stop

Application

HOT SALE

Main category

Company INFO

Founded in 2009, Chengdu LST has professional R&D team and specialized equipment, specializes in manufacturing middle-high class of chocolate equipment, such as chocolate molding Machines, chocolate coating machines, chocolate enrobing machines, chocolate & grain mixture moulding machine, ball mill, etc.

Our chocolate equipment have been popular in the food industry. At the same time, the products produced by our equipment are also in the forefront of the candy industry as well. Besides the domestic market, our equipment have been widely sold to Germany, India,Vietnam, South Korea, Canada, Australia, Russia, Ecuador, Malaysia, Romania Israel,Peru and many other countries in the world.

We provide OEM service. At the same time, life-time after-sales service for our equipment are provided to world wide customer and we are looking forward to your visit.

Our Services

Pre-sale Services
1. We’ll guide you to choose the most suitable machines for your project.
2. When sign contract, we will notify the power supply voltage and frequency.
3. Strict with complete testing and well adjustment according to customers’ requirement before shipment.

After-sale Service
1. Technical service provided.
2. Installation and On-site training service provided. Debugger only debug and train 2 kinds of products. Extra charge apply for extra products.Technicians’ installation and commissioning charges include round-way tickets, inland traffic, lodging and boarding fee are on the Buyer’s account. A service charges of USD 60.00/day per technician applies.

3. One year warranty for standard operation. Life-time technical support provided.
Service charge applies for incorrect operation or artificial damage.

Delivery Clause
1. The Equipment will be collected from the Seller’s factory by Buyer, or will be delivered by Seller on agreed terms.
2. Leading time is usually 30-60 working days.

Packaging & Shipping
