Professional hot sale mini chocolate ball mill grinding machine

Professional hot sale mini chocolate ball mill grinding machine

Terms:

1.     Payment:TT,40% down payment, 60%before delivery.

2.     Lead Time:60 days after down payment received.

3.     One year warranty.

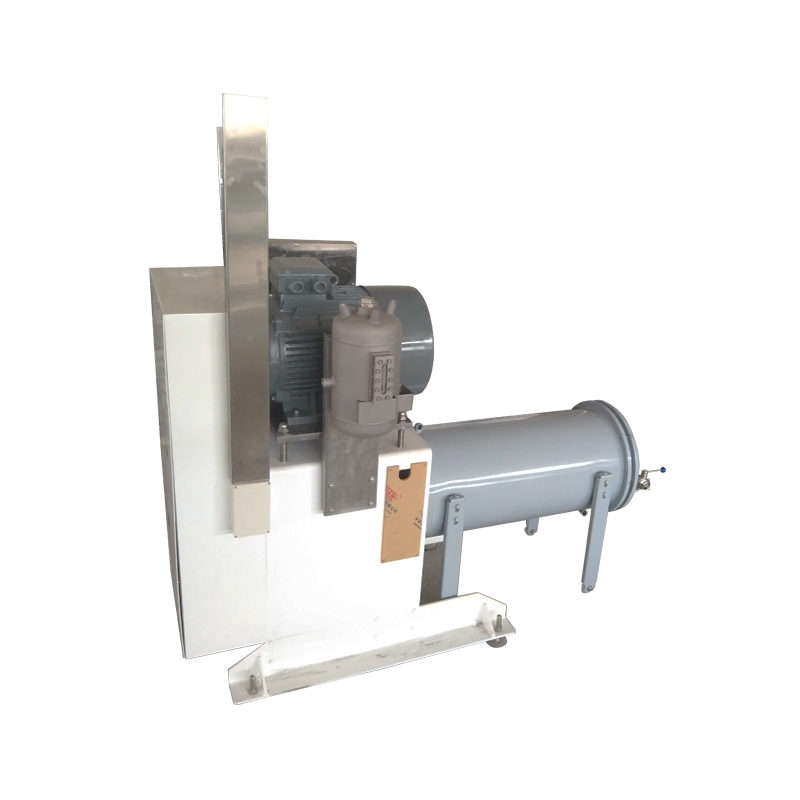

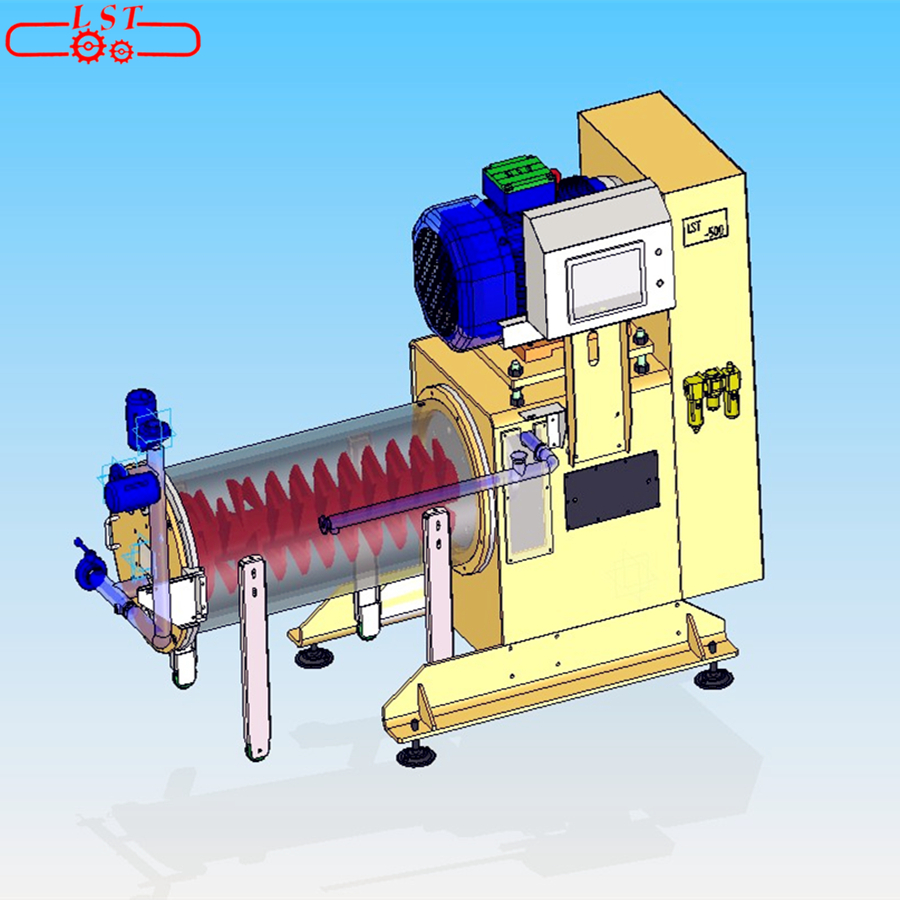

LST-BM600 Ball Mill Group

Comparing with refiner, ball mill has been improved with the advantages of low energy consumption, high productivity, low noise, super low metal content, easy to clean, one-touch operation, etc. In this way, it has shortened 8-10 times of milling time and saved 4-6 times of energy consumption. With leading advanced technology and imported accessories with original packing, equipment performance and products’ quality is guaranteed.

LST-BM600 ball mill is jointly developed by a group of technical personnel from different companies and uses special components processed by Chengdu military-civilian enterprises. At the same time, it has adopted the advantages of many horizontal ball mill such as German BUHLER, Naichi, and Lehman, and  also cold and hot water internal circulation automatic temperature control system. Delta PLC and Schneider low-voltage electrical appliances. All these makes this ball-mill fully meet the international advanced level.

7.To reduce the acquaintance cost,the inner sleeve is also designed to be replaceable.

8.Full graphic-touch screen control, easy operation, automatic grinding process, parameter visualization, only 1 person needed for operating the complete set of equipment.

Working Process:

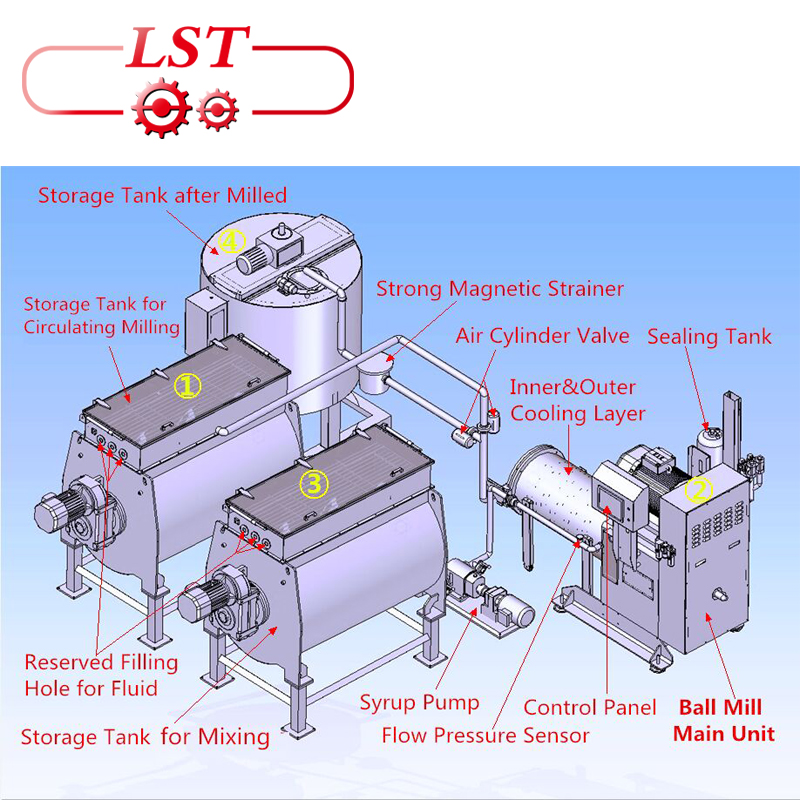

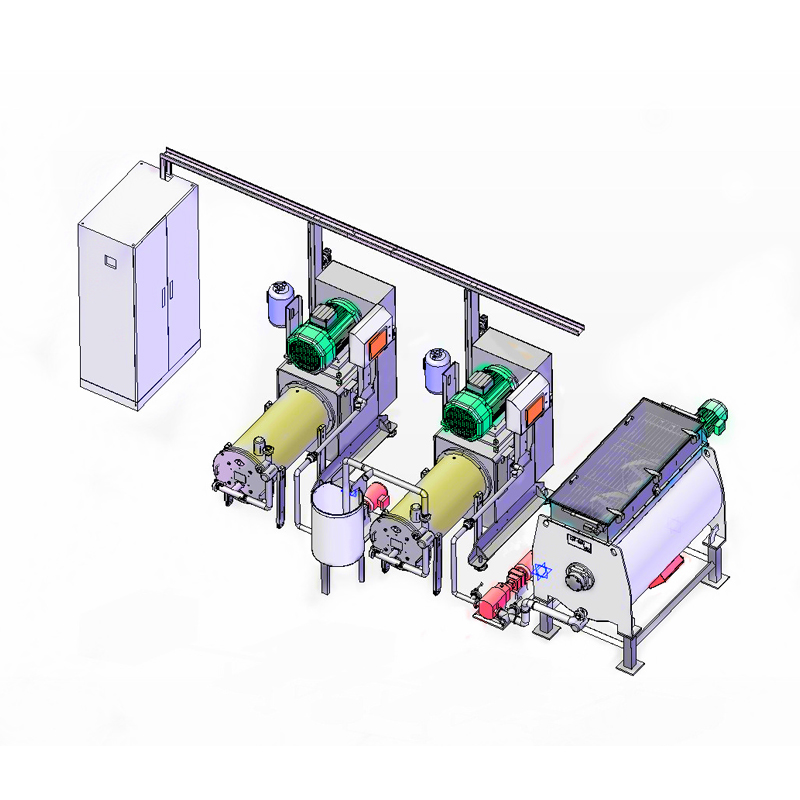

Load raw material into Mixer tank→Melting and Mix→First Ball Mill→Transit Tank→Second Ball Mill→Strong Magnetic Strainer→Out

Brief Introduction:

1.Granulated sugar can directly been added into the mixing tank and ready for milling process ( Currently, even some of the imported ball grinder can only grind powder sugar.) It tastes even better for grinded granulated sugar, and 99.99% of fineness can get 18-25 microns after milled.

2.With advanced technology in the world, and imported original parts, equipment performance and products’ quality is guaranteed. It also greatly reduces the noise, saves energy,as well as improves the production efficiency. Generally,it is maintenance-free.

3.Compared with foreign equipment, our machine only needs 7 HP water cooler, while 20 HP for some of foreign ones. Technically speaking, the durability of steel ball is improved, so the working life is lengthened. What’s more, recycle milling makes chocolate more tasty and greatly shorten milling time or even escape milling stage, which is what the foreign ball grinders can not do.

4.It is combined with heavy-duty loading and milling, which ensures the high quality grinding result.

5.It is easy to operate this machine.It is equipped with full set of imported fully automatic PLC. It only takes a few days training even for new staff to get all the operation knowledge. Only 1-2 staff/shift for each equipment is needed.

6.Important Parts are imported from Germany,Sweden,Taiwan,etc.,which makes the machine more stable and durable.

A.German imported original food grade chrome steel alloy mill bead.

B.   German imported sealing part-WSQ-90 model.

C.   Sweden imported SKF high speed double row roller bearing.

D.   Taiwan NAK lubricant oil sealing for bearing and O-rings.
