Oats Chocolate Making Machine Automatic Oatmeal Cereal Bar Making Machine Forming Machine

Short Description:

Send email to us Download as PDF

Product Detail

Product Tags

Overview

Quick Details

Applicable Industries:: Food & Beverage Factory

Condition:: New

Place of Origin:: Sichuan, China

Brand Name:: neste

Model Number:: 2000

Voltage:: 330/380v

Power(W):: 27kw

Weight:: 4000kg

Dimension(L*W*H):: 18000*1500*2000mm

Certification:: CE ISO

Year:: 2019

Warranty:: 1 year

After-sales Service Provided:: Field installation, commissioning and training, Engineers available to service machinery overseas

Application:: Biscuit

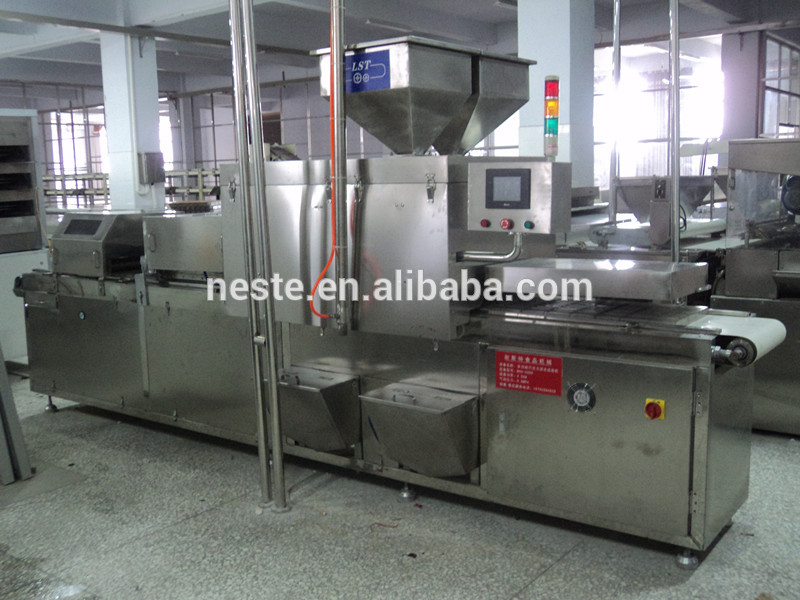

Oats Chocolate Making Machine Automatic Oatmeal Cereal Bar Making Machine Forming Machine

Product parameters

Project / Model		neste1000	neste2000	neste3000	neste4000
Capcity(kg/8hours)		800-1500	800-2000	800-2500	800-3000
Speed(n/min)		10-20storke
Chocolate shape		More than 100 kinds selected by customer
Power supllier	Voltage(v)	330/380V
Power supllier	Power(kw)	21	30	27	30
Compressed Air	Dosage 0.67m³/rain	0.22	0.412	0.2512	0.1925
Compressed Air	Pressure(Mpa)	0.6
Working condtion	Temp(d)	20-30
Cooling capacity	Kcal/h	22800	22800		22800
Cooling tunnel	Temp(°C)	5-10	5-10		5-1O
Chocolate weight	Pure chocolate	2.5-512g
Chocolate weight	Center filled choco	15-40g
Machine weight	kg	3000	4000	5000	6000
(L×W×H)Machine size(m)		10×11.2×2.5	15×12×2.5	18×12.5×2-5	20×12/5×2.5
(L×W×H)Mould size		280×200×30	280×200×30	275×175×30	385×225×30
(L×W×H)Mould size		300×225×30	300×225×30	300×225×30	385×225×30
Mould quantity(piece)		290	360	Oneself scheme	360

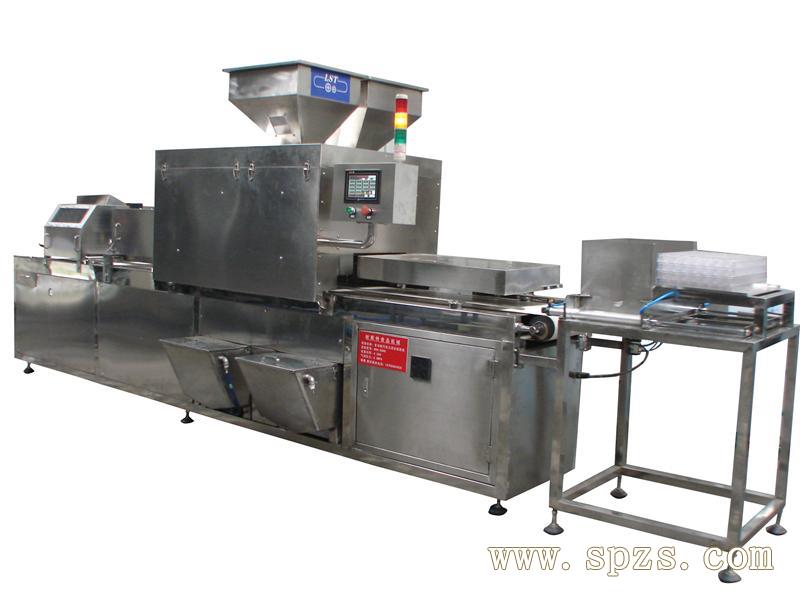

Multi-Functional Mixing And Forming Machine

technical features:

PLC control, auto-frequency control
man-machine touch interface to detect the levels of the liquid and solid material. Overload protection to alarm when there is something wrong, and to show it on the touch screen
programming storage of the products to change the chocolate color and products every 15 minutes. More stable when running with the prescription
separated heating and control system. The heating system keeps the chocolate in constant temperature when the control system is powered off, so the service life of the control system is longer.
it can mix chocolate, nut butter, fruit, or cereal with other particle food; the product loafs are varied and can be customized
equipped with 2 high precision cam rotor pumps to mix the material continuously. The batching system and the high precision cam rotor pumps can keep the stable proportion of the chocolate during producing
during the production, the mixing materials can be detected by the sensor, and supplemented by the transducer. The whole producing process is controlled by the sensor, and there is no need to stop.
made of stainless steel ,and matched with special accessories like SMC non-inductive magnetic cylinder, which can meet the food sanitary requirement
adopted with the imported technology, we improve our machines according to the after service and testing report. By customers’ requirement, we add another set of material conveying unit and chocolate conveying unit to diversify our products

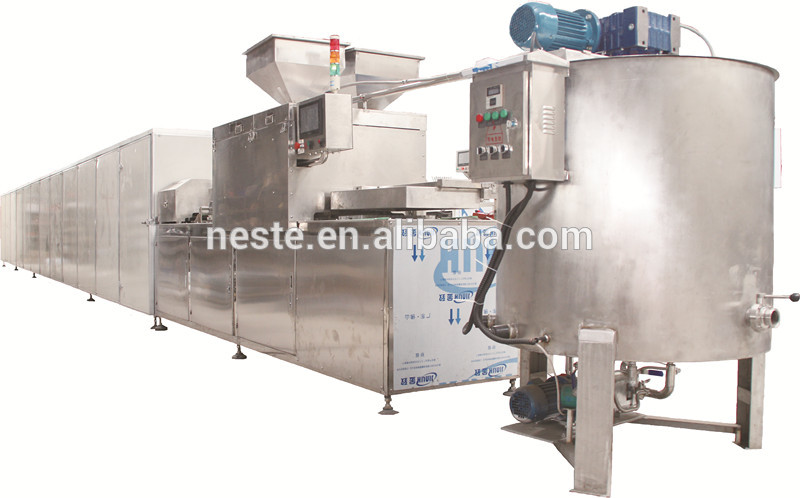

the whole production line includes: moulds, mixing and forming unit, cooling unit, packaging unit
the corn mould clamping device can be added according to the customers’ requirements

Contact Supplier

Hot Sale

Company INFO

Founded in 2009, Chengdu LST has professional R&D team and specialized equipment, specializes in manufacturing middle-high class of chocolate equipment, such as chocolate molding Machines, chocolate coating machines, chocolate enrobing machines, chocolate & grain mixture moulding machine, ball mill, etc.

Our chocolate equipment have been popular in the food industry. At the same time, the products produced by our equipment are also in the forefront of the candy industry as well. Besides the domestic market, our equipment have been widely sold to Germany, India,Vietnam, South Korea, Canada, Australia, Russia, Ecuador, Malaysia, Romania Israel,Peru and many other countries in the world.

We provide OEM service. At the same time, life-time after-sales service for our equipment are provided to world wide customer and we are looking forward to your visit.

Our Services

Pre-sale Services
1. We’ll guide you to choose the most suitable machines for your project.
2. When sign contract, we will notify the power supply voltage and frequency.
3. Strict with complete testing and well adjustment according to customers’ requirement before shipment.

After-sale Service
1. Technical service provided.
2. Installation and On-site training service provided. Debugger only debug and train 2 kinds of products. Extra charge apply for extra products.Technicians’ installation and commissioning charges include round-way tickets, inland traffic, lodging and boarding fee are on the Buyer’s account. A service charges of USD 60.00/day per technician applies.

3. One year warranty for standard operation. Life-time technical support provided.
Service charge applies for incorrect operation or artificial damage.
