New design LST 2D/3D mini chocolate making machine for chocolate bar/ball/center-filled

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Applicable Industries:
Food & Beverage Factory
Brand Name:
LST
Place of Origin:
Sichuan, China
Voltage:
380V
Power(W):
27kw
Dimension(L*W*H):
18500*1210*2500mm
Weight:
6500kg
Certification:
CE
Warranty:
1 year
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Application fields:
Snack food factory
Machinery Function:
depositing
Raw material:
chocolate
Output product name:
chocolate
Type:
Chocolate machinery
Name:
Automatic Servo-controlled Chocolate Ball Molding Machine
Customize:
Support

LST 2D/3D mini chocolate making machine for chocolate bar/ball/center-filled

New Features:

1.Depositor is covered. Good for Safty and food cleanness.

2.Specially designed structure enables fast assembling and disassembling of the depositor. Easy for cleaning and switching of product.





Main parameters:*Support Customization

Productivity

Nozzles

Power

Air supply

Power supply

Net Weight

Dimension

8-18 moulds/min

48/72/96*2

22kw

4MP

Customized

500kg

2200-1680-1800mm

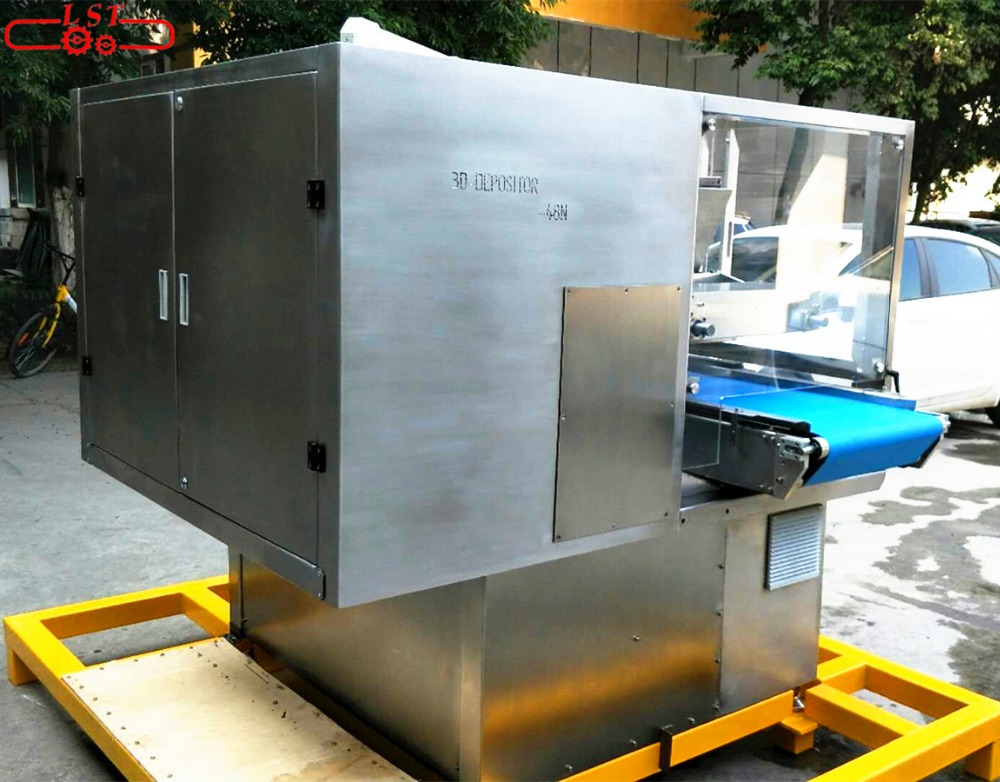

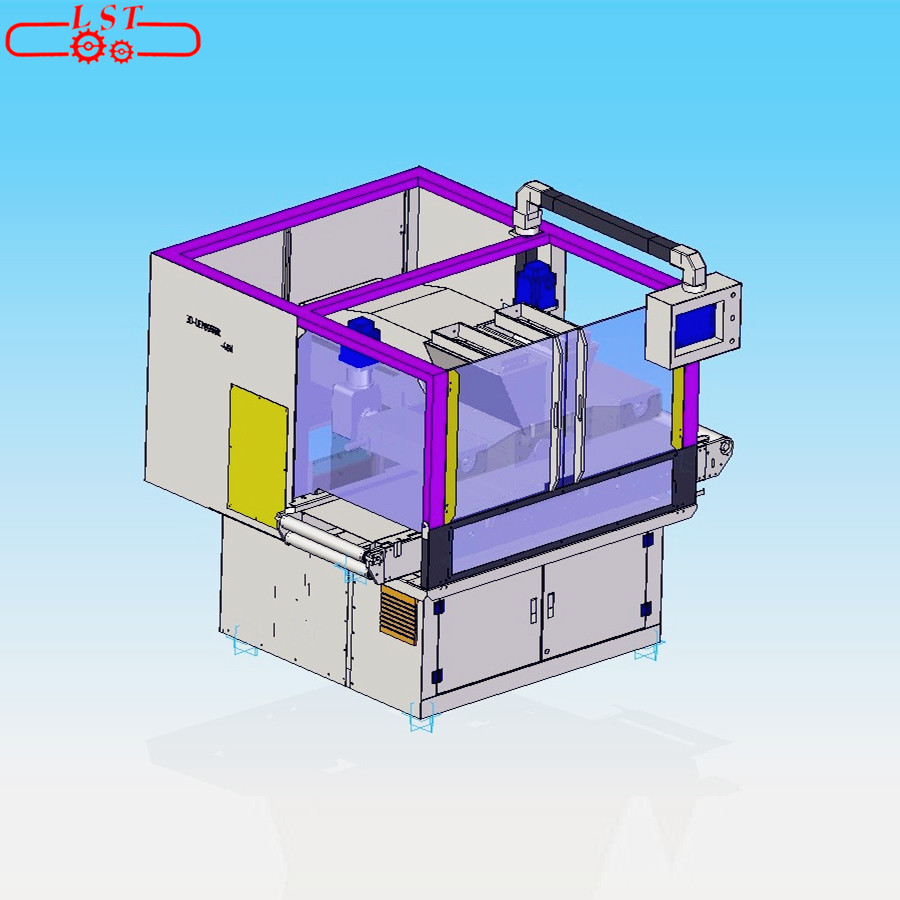

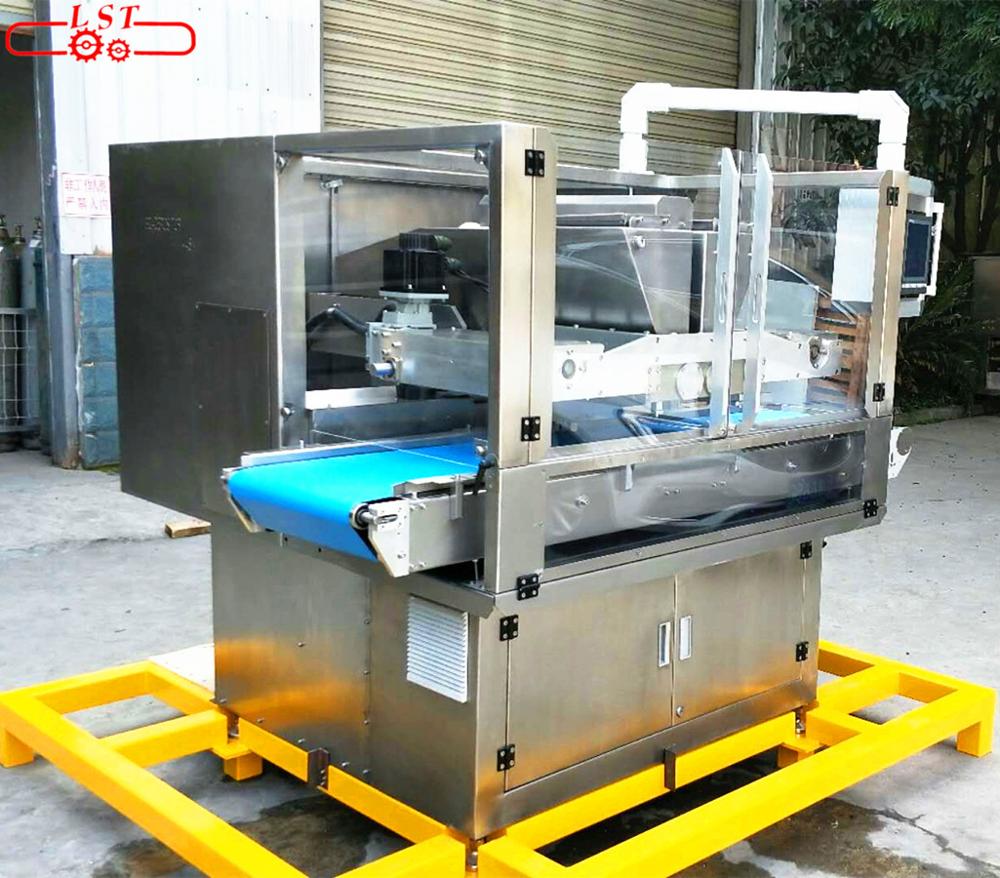

Servo Controlled Chocolate depositing Machine

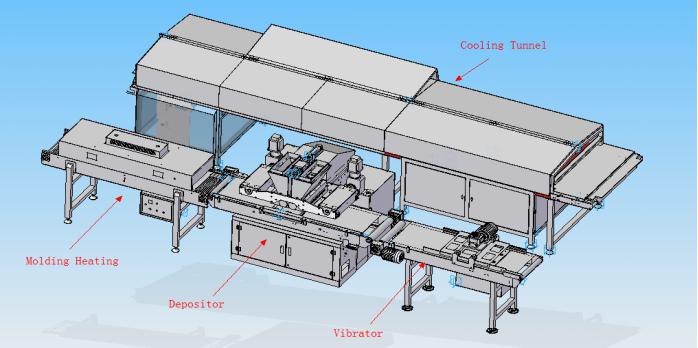

This machine is an advanced and exclusive equipment for chocolate molding , the whole producing process includes mould heating, conveying and depositing. It is a fully automatic producing equipment, which is good to produce pure chocolate, center-filled ,double-colored chocolate and crispy rice chocolate, with accurate pouring amount and easy operation.

This fully automatic chocolate servo controlled pouring machine is equipped with international famous brand servo motor and controlled by PLC system. It is a multi-functional chocolate pouring machine with pneumatic components. As the new generation of chocolate food machinery, it is suitable for small and medium-sized food enterprises to produce personalized, diversified chocolate candy. This machine is designed according to the international general standard. It can work individually, and also can be combined with other equipment. Flexibility is the main characteristic for this equipment, which makes it convenient to switch from different products.

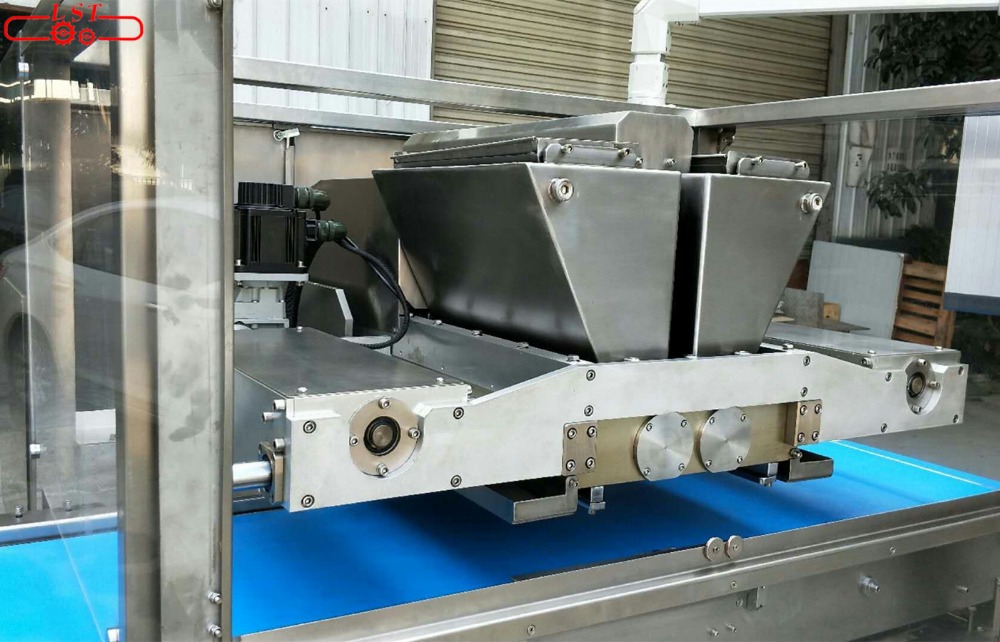

Depositor







a. 12/14 stainless steel piston-rods offer quantitative pouring controlled by dual servo motors.

b. SMC rotary valve cylinder control chocolate valve.

c. stainless steel pot with interlayer . Hopper is equipped with thermal insulation system(hot water circulation).

d. Special assemble and disassemble mechanism enables a very quick switch of distribution plate when needed for different

  products. At the same time. It is more easy for cleaning of the unit.

e. The particular structure of nozzle ensures uniform thickness of the filling layer and covering layer.

f. The number of pouring nozzle is 48*2.

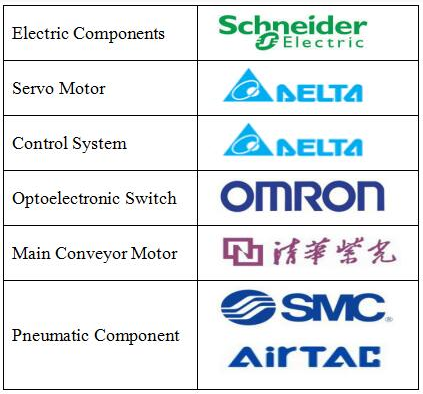

Main Configuration



Main category


Our Services

Pre-sale services

1. We’ll guide you to choose the best product for your project.

2. Strict with complete testing and well adjustment according to customers’ requirement before shipment.

After-sale Service

1. Technical service provided

2. On-site training service provided

3. Spare parts replacement and repair service provided
