Multi function rotary drum chocolate food coating machine with cooling system
- Brand Name:
-
LST
- Place of Origin:
-
Sichuan, China
- Voltage:
-
380V/50HZ/Three Phase
- Power(W):
-
45Kw
- Dimension(L*W*H):
-
2300*1650*2300mm
- Weight:
-
40000kg
- Certification:
-
CE
- Warranty:
-
1 year
- Product name:
-
food coating machine
- Matched machine:
-
refregination machine
- Usage:
-
chocolate/candy/food coating and polishing
- Raw material:
-
chocolate candy food
- Capacity:
-
400-1000kg/batch
- Feature:
-
fully automatic
- Type:
-
large machine system
- Color:
-
as your requirements
- Service:
-
good any supports
- Clients range:
-
industrial range
- Condition:
-
New
- Application:
-
Chocolate
- After-sales Service Provided:
-
Engineers available to service machinery overseas
Multi function rotary drum chocolate food coating machine with cooling system
Main Parameters
|
Mode |
500L |
1000L |
|
Capacity |
400-600KG/batch |
800-1000KG/batch |
|
Total power |
12KW |
14KW |
|
Rotary speed |
2-12rpm |
2-12rpm |
|
Feeding window diameter |
450MM |
450MM |
|
Rotary drum diameter |
1600mm |
1600mm |
|
Rotary drum length |
1500mm |
1900 |
|
Air supply for air cylinder |
0.4MPA |
0.4MPA |
|
Powder tank |
100L |
100L |
|
Hot water tank |
300L tank+6kw heating |
300L tank+6kw heating |
|
Power supply |
380V-50HZ or customized |
380V-50HZ or customized |
Product Feature
1. Automatic material loading, product processing and unloading.
2. Automatic syrup spray,powder spray and powder dust removal.
3. Automatic cleaning,drying and dehumidification.
4. Enclosed space, temperature and humidity controllable, no contamination.
5. Machine is capable of chocolate coating as well as crispy sugar coating.
6. Machine has been wildly used in foods and pharmaceuticals industrial as well as military industrial.

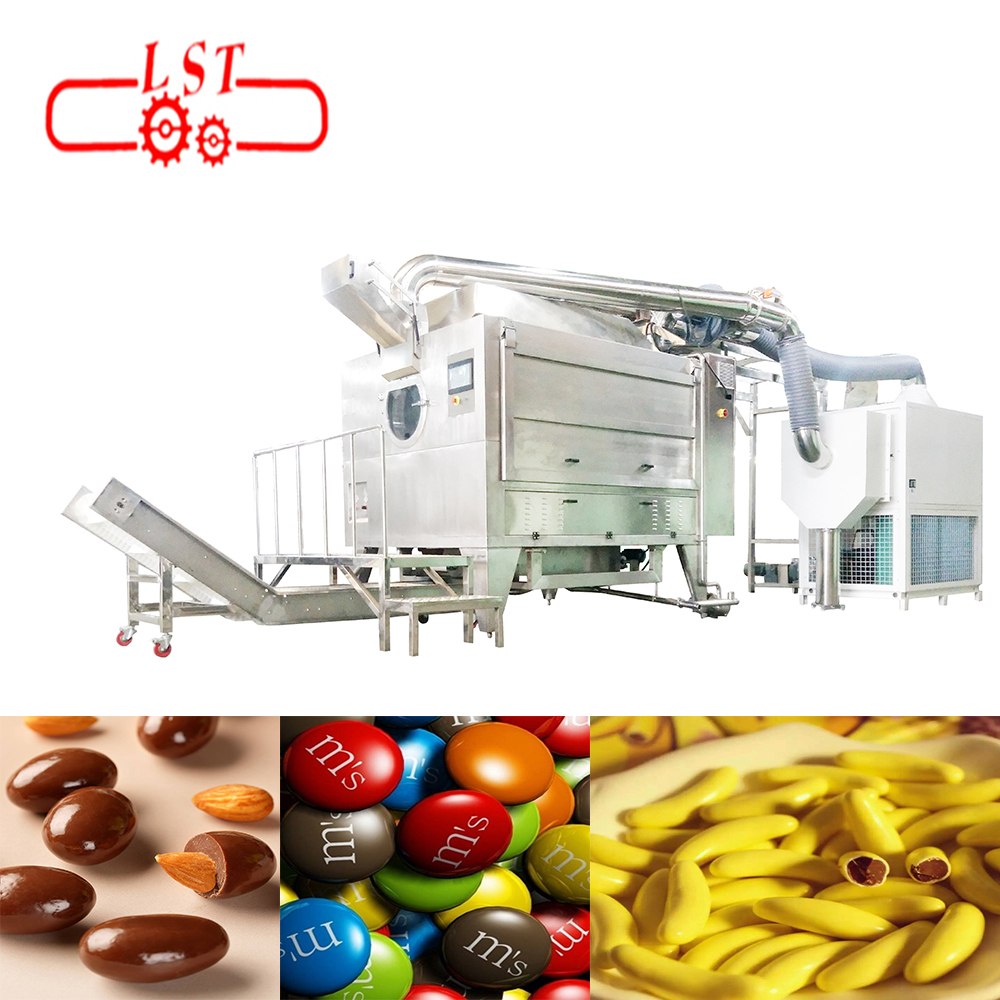

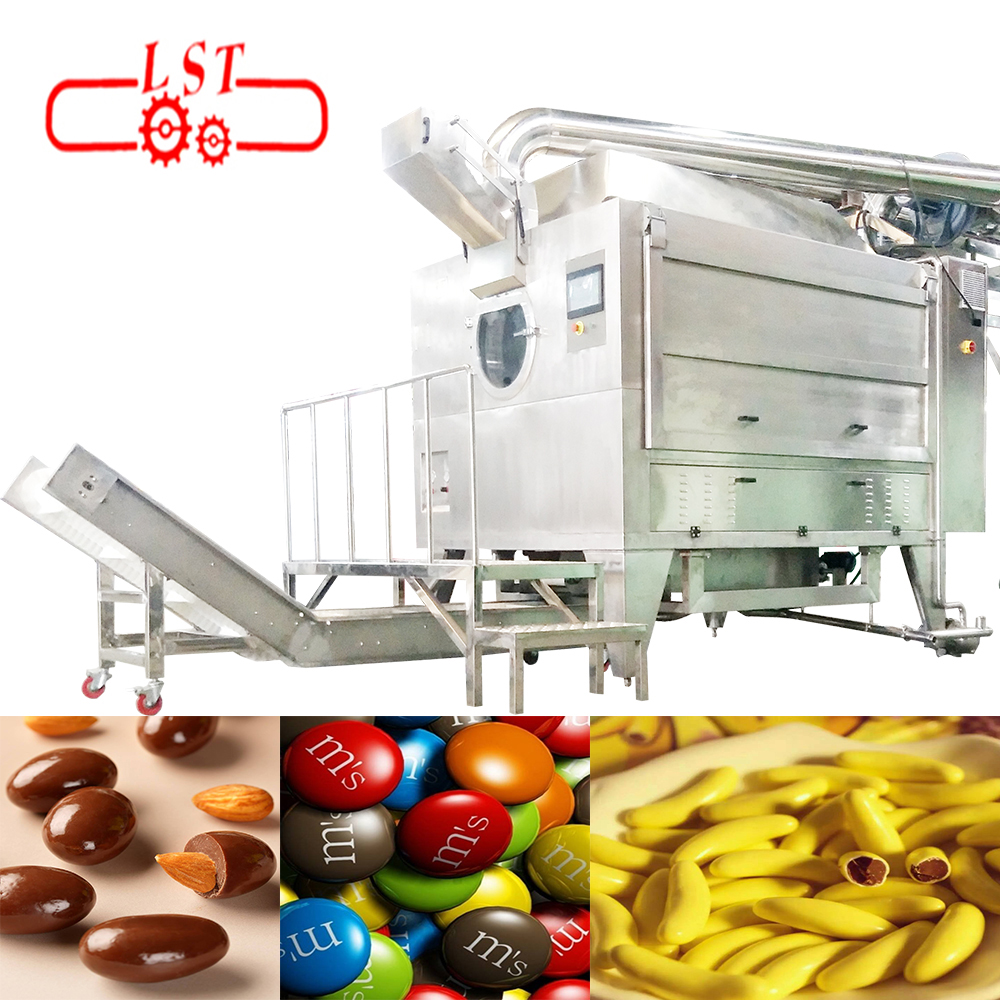

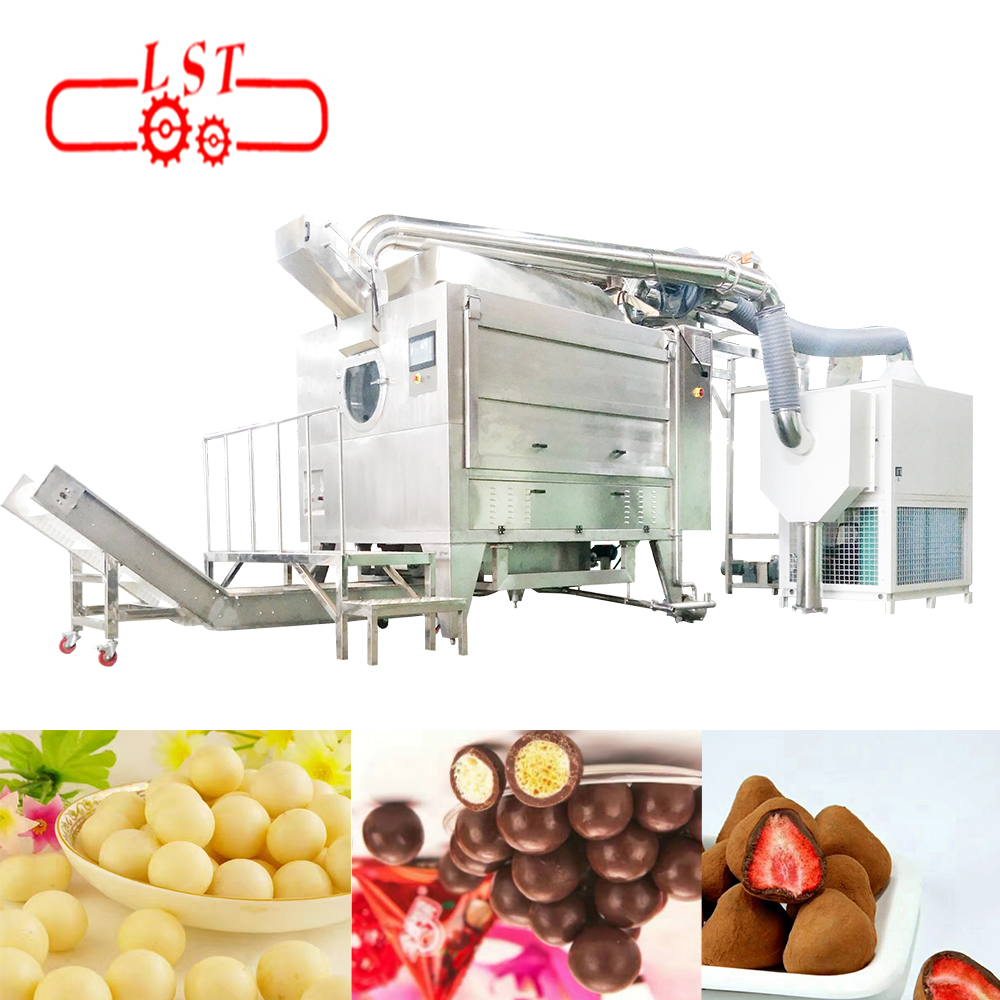

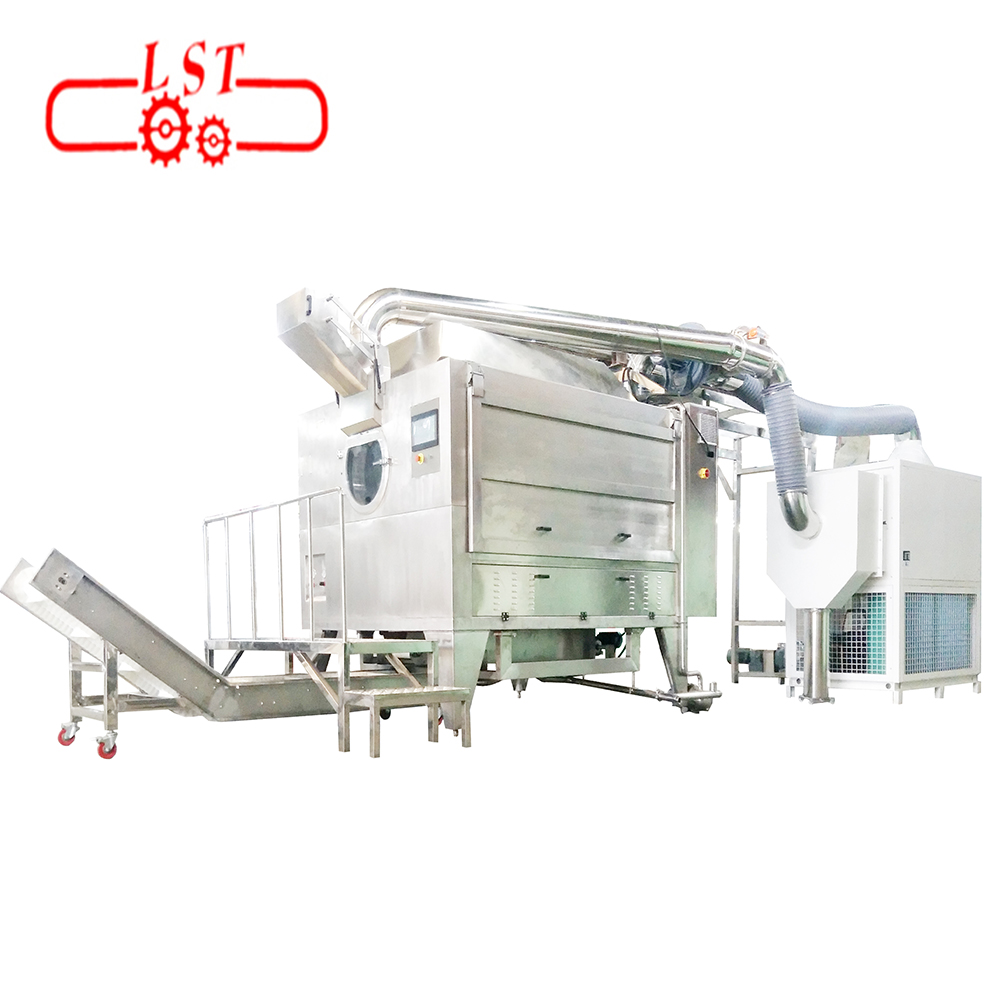

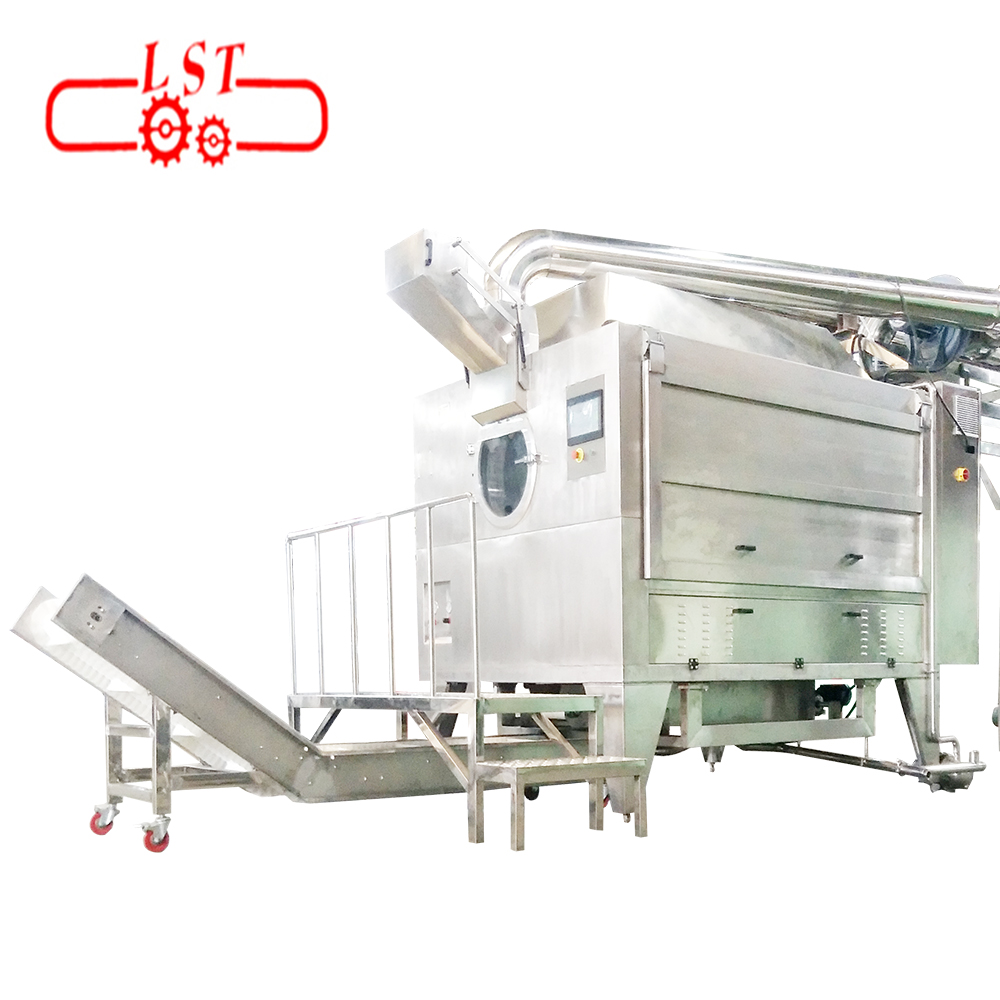

Product Show
Project Application
Freya Yang:Email:freya(at)chocolateequipment.net ,Ph/Wechat/Whatsapp/Skype:0086-17761306430
