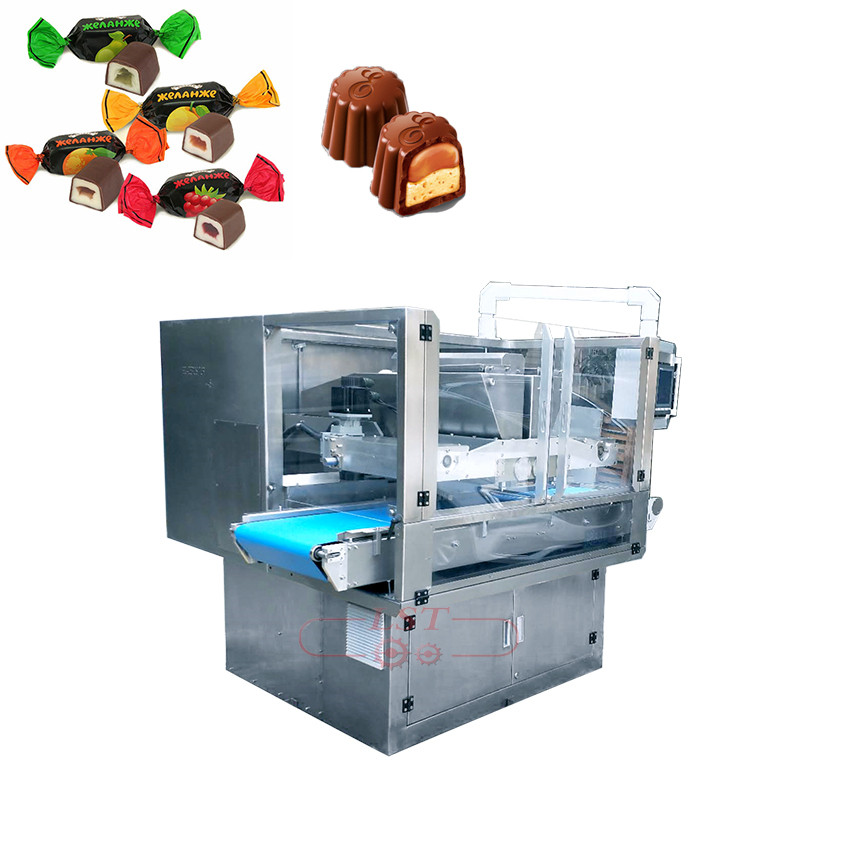

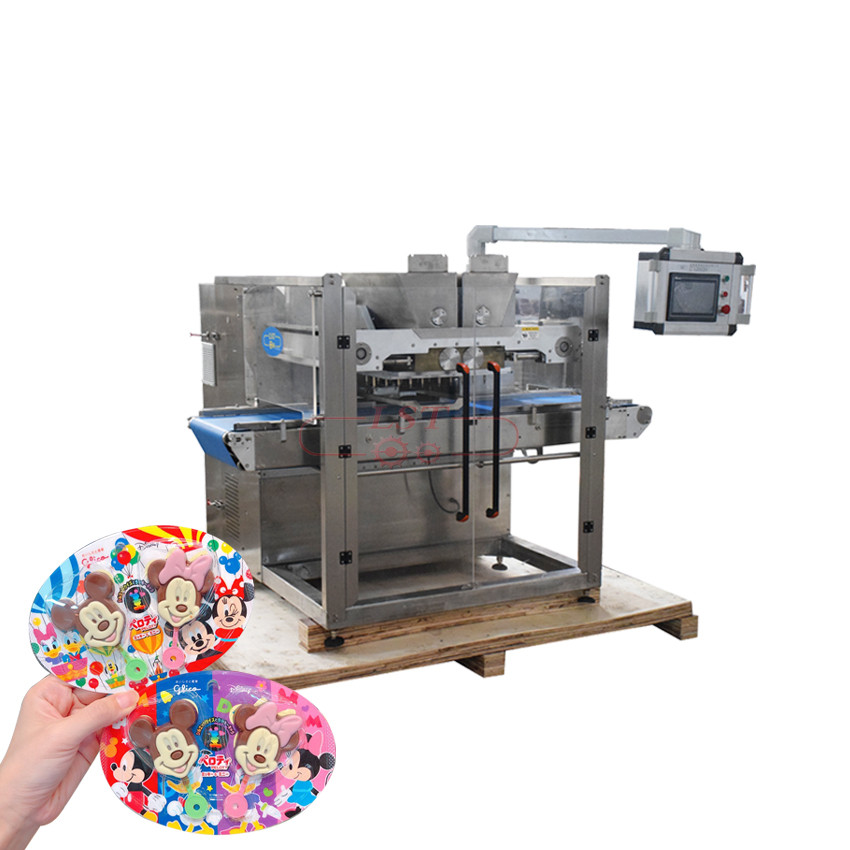

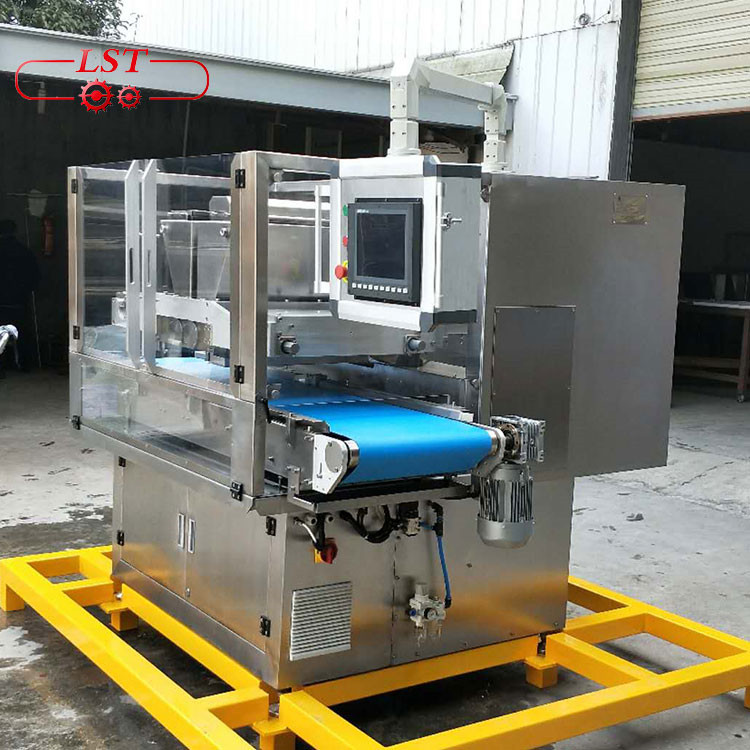

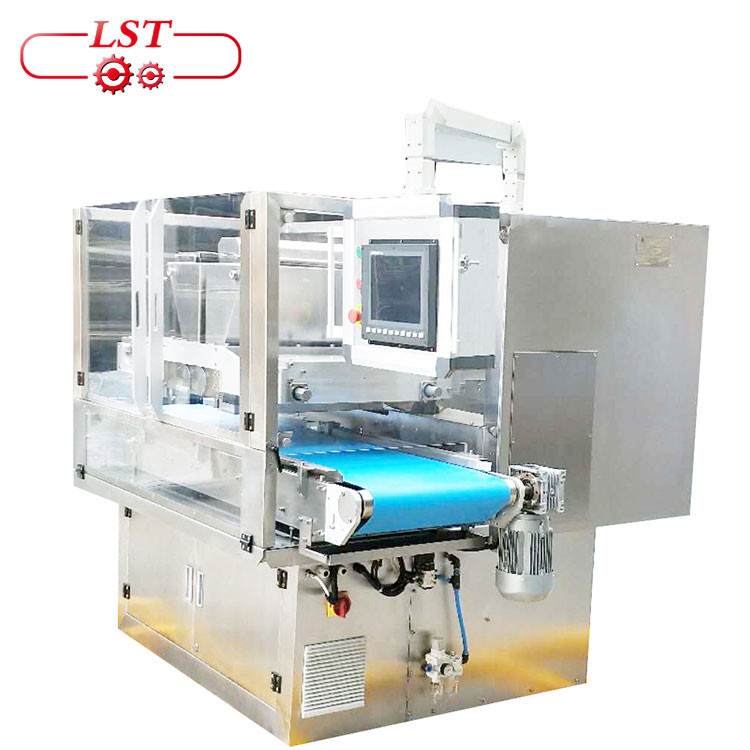

LST Full Automatic Chocolate 2D/3D One-Shot Depositor Production Line

Short Description:

In addition to the production of ordinary solid chocolate, this equipment can also produce three-dimensional and multi-color(3D), double color chocolate(2D),filled chocolate, particle mixed chocolate, accurately depositing rate and easy operation.

Item No: LST-M2D8O2/M3D8O2

Capacity: 6-12 moulds/min

Dimension(L*W*H): 2000*1580*1600mm

Certification: CE

Customization: for 1 set

EXW Price: /

Send email to us Download as PDF

Product Detail

Product Tags

●Product Introduction

2D/3D Depositor usually works with Mould heater,vibrator,cooling tunnel, demoulder ,mould conveying, biscuit feeder,sprinkler,cold press machine,etc.It can be a full automatic line or semiautomatic line. Choose whatever function you need to make your desired production line.
This Chocolate depositing line is a high tech full automatic chocolate machine for chocolate molding. Suitable for food company middle large scale, personalized, and diverse production.
The most special features of this line is the flexibility as every parts of this line can be used as a separate part and combine with some other machine.
This line has been widely applied in production of pure solid chocolate, center filled chocolate, double-colored chocolate, particle mixed chocolate, biscuit chocolate,etc.

●Features

1.Depositor is with shell, these shell is not only for hygienic purpose, but also for safety protection.

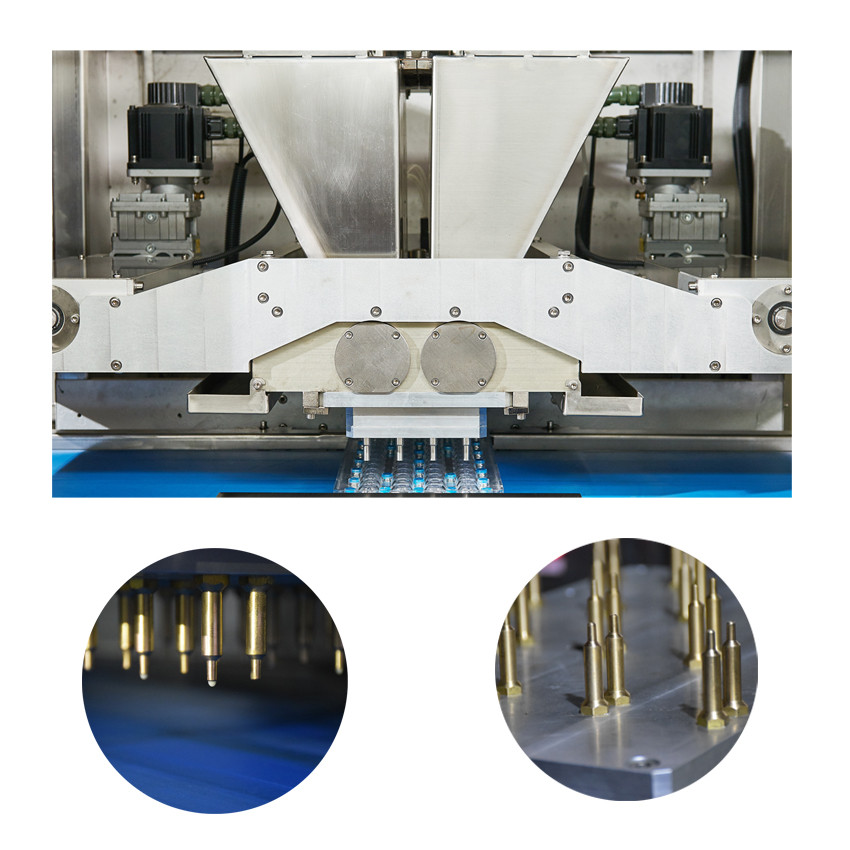

2. The depositing head is with completely new mechanism, which enables fast assemble and disassemble of the depositing head, depositing plate,etc. This design make it very fast and convenient for depositing plate change or depositor cleaning.
3. 2D one-shot depositor:One-shot depositor,single color,two color, center filling,chocolate ball,center filled chcolate ball, etc.
4. 3D one-shot decorating depositor: Has all the function of 2D one-shot depositor, specialized in decorating depositing function. Depositor is able to move to any direction necessary. It is even able to draw picture.

●Application

2D

3D(can do all 2D product)

●Parameter

Parameter/Model	2D One-Shot Depositor	3D Decoration depositor
PLC	DELTA	DELTA
Depositing Speed	6-12 mouds/min	4-12 mouds/min
Piston Numbers	48/72/96*2 pistons	48/72/96*2 pistons
Products Per Shot	Up to 192 pcs	Up to 192 pcs
Servo Motor	4sets	5sets
Movable Axis	Z+X or Z+Belt	X+Y+Z
Depositing Mode	A/B/A+B	A/B/A+B
Depositing Accuracy	≤±0.1g	≤±0.1g
Filling Rate	≤80%	≤80%
Power	12KW	13KW
Dimension	200015801600mm	200015801600mm
Mould size	450-300-30/450-230-30/275-175-30mm	450-300-30/450-230-30/275-175-30mm
