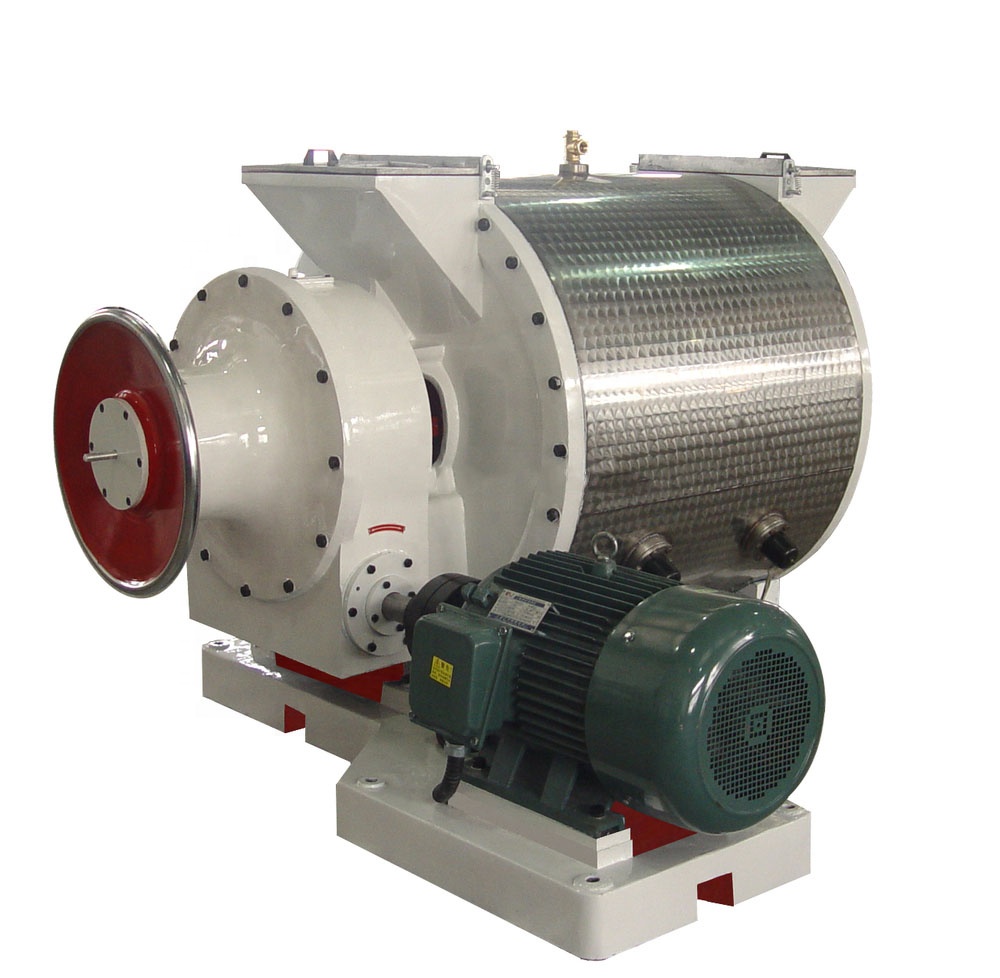

Hot Sale 1T Large Capacity Chocolate Conche Machine Chocolate Refiner Machine

Short Description:

Send email to us Download as PDF

Product Detail

Product Tags

Overview

Quick Details

Condition:: New, New

Applicable Industries:: Food & Beverage Factory

Brand Name:: LST

Place of Origin:: Sichuan, China

Voltage:: 380V/50HZ/Three Phase

Power(W):: 19Kw

Dimension(L*W*H):: 2000*1860*1280mm

Weight:: 2500kg

Certification:: CE

Warranty:: 1 year

Application fields:: Snack food factory

Machinery Function:: Conche

Output product name:: chocolate

Application:: Chocolate

Product name:: chocolate conche machine

Matched machine:: chocolate ,making machine

Usage:: conching of chocolate paste

Raw material:: chocolate food

Capacity:: 500-1000L

Feature:: Easy operation

Type:: Large type

Clients range:: Industrial range

After-sales Service Provided:: Field installation, commissioning and training

Product Description

Hot Sale 1T Large Capacity Chocolate Conche Machine Chocolate Refiner Machine

Main Parameters

Model	LSTC20	LSTC500	LSTC1000
Tank capacity(KG)	20	500	1000
Refining time(H)	6-8	12-16	16-22
Fineness(µm)	20-25	20-25	20-25
Main motor power(KW)	1.5	15	18.5
Electric heating power(KW)	1	4	4
Shaft speed(R/MIN)	93	37	30
Net weight(KG)	280	2500	3000
Dimension(MM)	8006501180	200018601280	258013501790

Main Features

It is the new generation chocolate conching machine. The special design ensures the easy operation, easy cleaning, low power consumption, good performance, nice appearance etc.

Product Details

Control Panel Inner Picture
