Hot chocolate ice cream spinner coating machine confectionery coating pan machine
- Applicable Industries:
-
Food & Beverage Factory
- Brand Name:
-
LST
- Place of Origin:
-
Sichuan, China
- Voltage:
-
220V
- Power(W):
-
100/4500
- Dimension(L*W*H):
-
1200*1250*1630mm
- Weight:
-
95/280
- Certification:
-
CE Certificate
- Warranty:
-
1 Year
- Application fields:
-
Fruit processing plant, Snack food factory, Beverage Factory
- Machinery Function:
-
coating
- Raw material:
-
Fruit, Nuts
- Output product name:
-
chocolate bean
- Application:
-
CANDY
- After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training
- Product name:
-
chocolate coating pan
- Usage:
-
chocolate sugar
- Matched machine:
-
chocolate making machine
- Function:
-
coating ,polishing ,spraying chocolate food
- Material:
-
304 Stainless Steel
- Refrigerant:
-
matched with cpating pan
- Type:
-
auto machine
- Service:
-
all supports
Hot chocolate ice cream spinner coating machine confectionery coating pan machine automatique
LST Hot selling auto mini chocolate spraying coating polishing machine

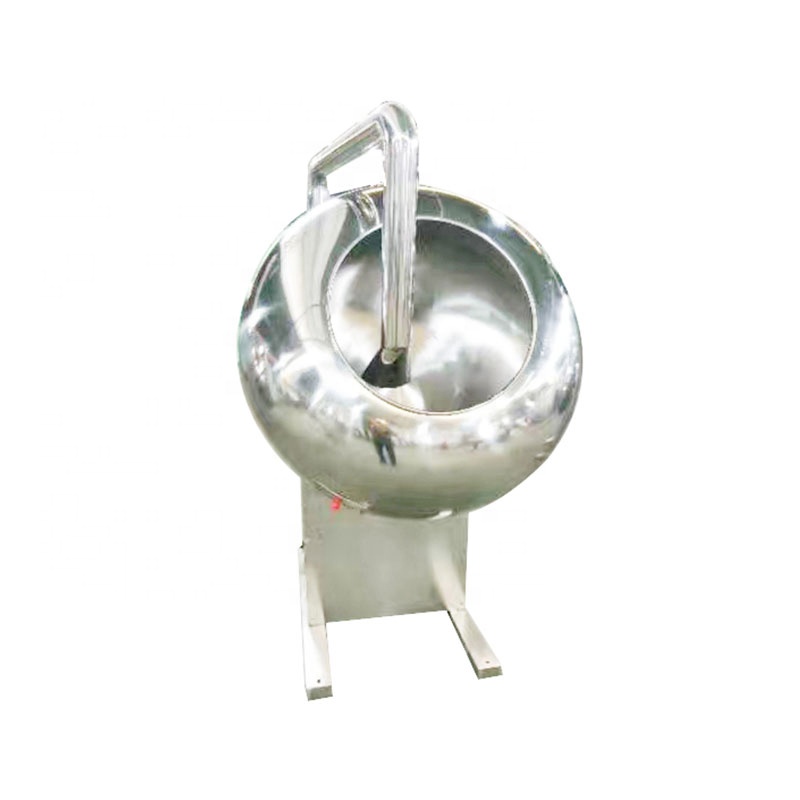

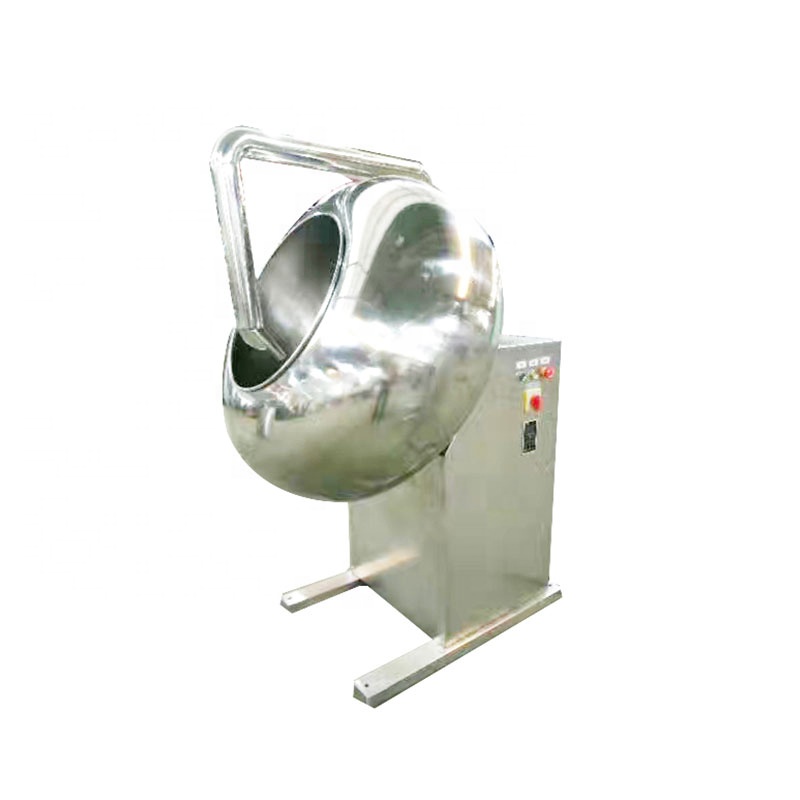

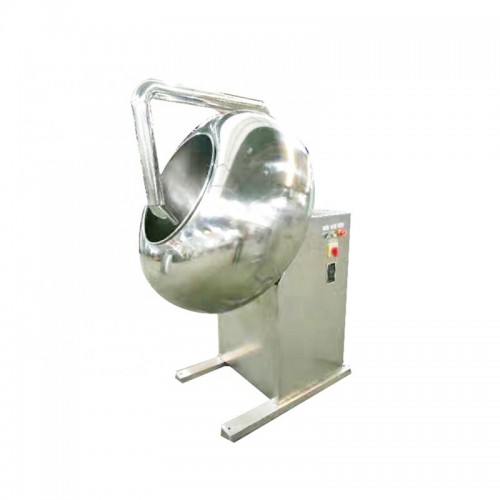

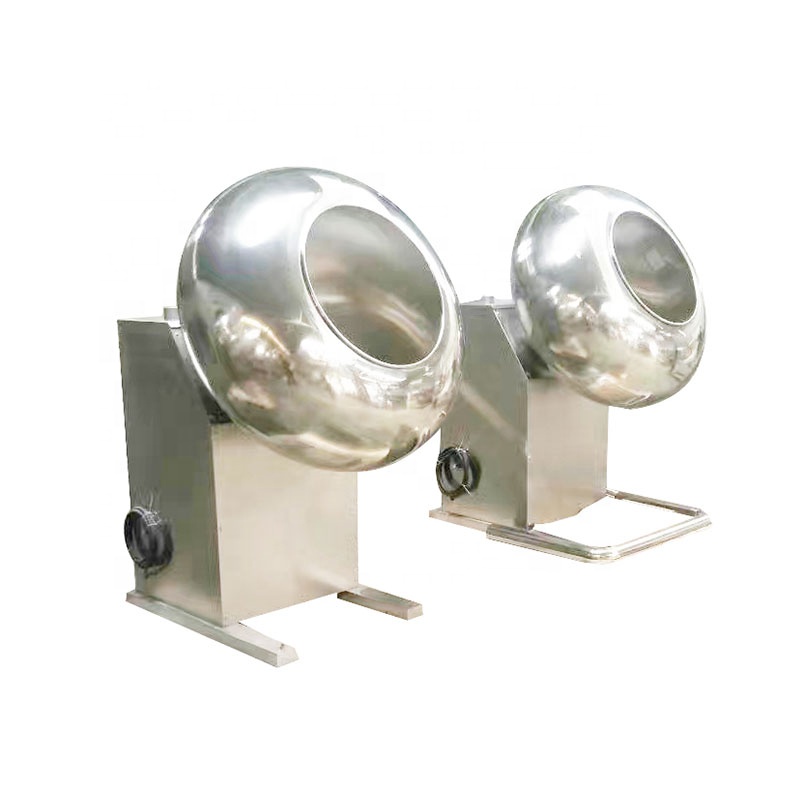

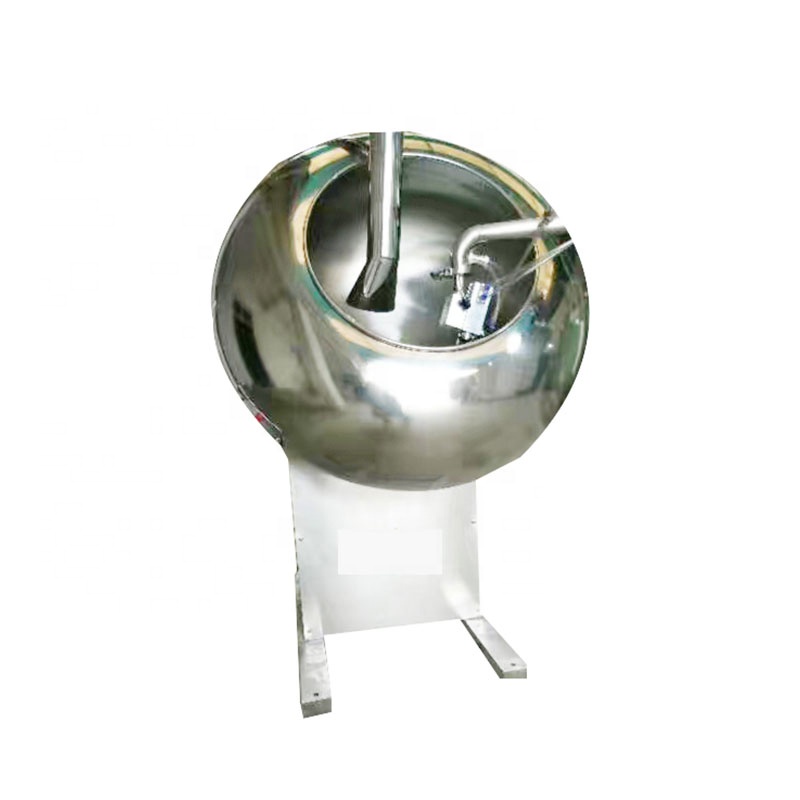

1.Main Performance and Structural Features
This machine is used for sugarcoat tablets and pills for pharmaceutical and food industries.It also can be used for roll-fry beans,nuts or seeds.The leaning angle is adjustable, and electrical stove or gas stove can be placed underneath as heating device.
Attached device include:
a.Single electrothermal blower, the wind outlet pipe(adjustable wind volume) can be put into the pot as heating or cooling.
b.Heat(temperature) can be adjusted.
c.Speed-adjustable motor
2.Scope of Application

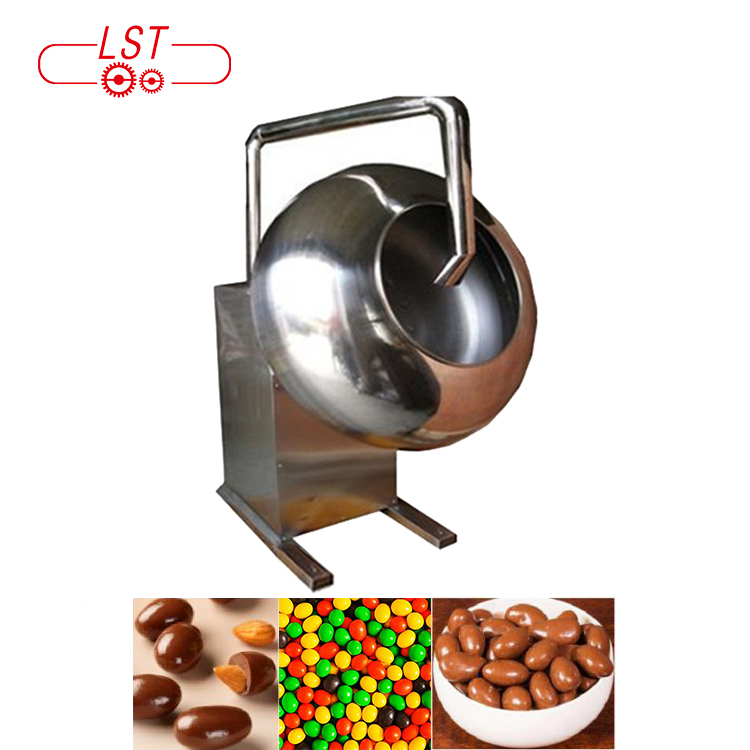

This machine can be used for polishing chocolates with various shapes,such as round, oblate, oval,sunflower seed shaped,cylindrical etc, making it glossy,and shining with lustre on the surface. Moreover, chocolates shall look more delicate after being polished.The cylindrical chocolates are usually wrapped by multi-colored aluminum foil,the wrapping paper fits better with the chocolate after being polished,the geometrical structure becomes clearer. This polishing pot also applies for enrobing nubbly products such as flour-coated peanuts, hard/soft candies,bubble gums,pills,etc.
3.Main Technical Parameters
Name |
PGJ-400A |
PGJ-600A |
PGJ-800A |
PGJ-1000A |
PGJ-1250A |
PGJ-1500 |
Pot Diameter |
400 |
600 |
800 |
1000 |
1250 |
1500 |
Rotating Speed |
32 |
32 |
28 |
28 |
28 |
28 |
Main Motor Power |
0.55 |
0.75 |
1.1 |
1.5 |
3 |
5.5 |
Blower Power |
60 |
60 |
250 |
250 |
250 |
250 |
Heating wire power |
1 |
1 |
2 |
2 |
3 |
6 |
Productivity |
6kg/batch |
15kg/batch |
30-50kg/batch |
50-70kg/batch |
70-120kg/batch |
100-200kg/batch |
Dimension |
600*550*880 |
700×700×1100 |
925*900*1500 |
1100*1100*1600 |
1200*1250*1800 |
1200*1500*2000 |
Net Weight |
80 |
120 |
230 |
250 |
300 |
350 |
1. Payment: T/T in advance. 40% down payment, 60% against acceptance from customers
2. Strict with complete testing and well adjustment according to customers’ requirement before shipment.
3. Customization is available.
5. What’s the information should I let you know if I want to get a full quotation?
Bag type, size, weight of material, type of material, thickness, printing, colors, quantity
6. When we create our own artwork design, what kind of format is available for you?
The popular format: AI, JPEG, CDR,PSD, TIF
7. Wooden case packed with machine and English manule
8. Transformer is provided
9. Technical manual in English is provided
10. The machine is stainless steel
11. In the line of exporting packing material
