High quality automatic candy chocolate equipment sugar coating machine

Short Description:

Send email to us Download as PDF

Product Detail

Product Tags

Overview

Quick Details

Applicable Industries:: Food & Beverage Factory

Brand Name:: LST

Place of Origin:: Sichuan, China

Voltage:: 380/415/660

Power(W):: 38kw

Dimension(L*W*H):: 5000*1800*3100

Weight:: 1500kg

Certification:: CE ISO

Warranty:: 1 Year

Application fields:: Snack food factory

Raw material:: Nuts

Condition:: New

Application:: Chocolate

After-sales Service Provided:: Engineers available to service machinery overseas, Field installation, commissioning and training

Name:: Chocolate Coating machine

Customiz:: Support

Production Capacity:: 500kg/h

Type:: COATING

Product name:: Chocolate bean machine

High quality automatic candy chocolate equipment sugar coating machine

product display

Product parameters

Mode	500L	1000L
Capacity	400-600KG/batch	800-1000KG/batch
Total power	12KW	14KW
Rotary speed	2-12rpm	2-12rpm
Feeding window diameter	450MM	450MM
Rotary drum diameter	1600mm	1600mm
Rotary drum length	1500mm	1900
Air supply for air cylinder	0.4MPA	0.4MPA
Powder tank	100L	100L
Hot water tank	300L tank+6kw heating	300L tank+6kw heating
Power supply	380V-50HZ or customized	380V-50HZ or customized

Product Feature:

1. Automatic material loading, product processing and unloading.

2. Automatic syrup spray,powder spray and powder dust removal.

3. Automatic cleaning,drying and dehumidification.

4. Enclosed space, temperature and humidity controllable, no contamination.

5. Machine is capable of chocolate coating as well as crispy sugar coating.

6. Machine has been wildly used in foods and pharmaceuticals industrial as well as military industrial.

Product Details

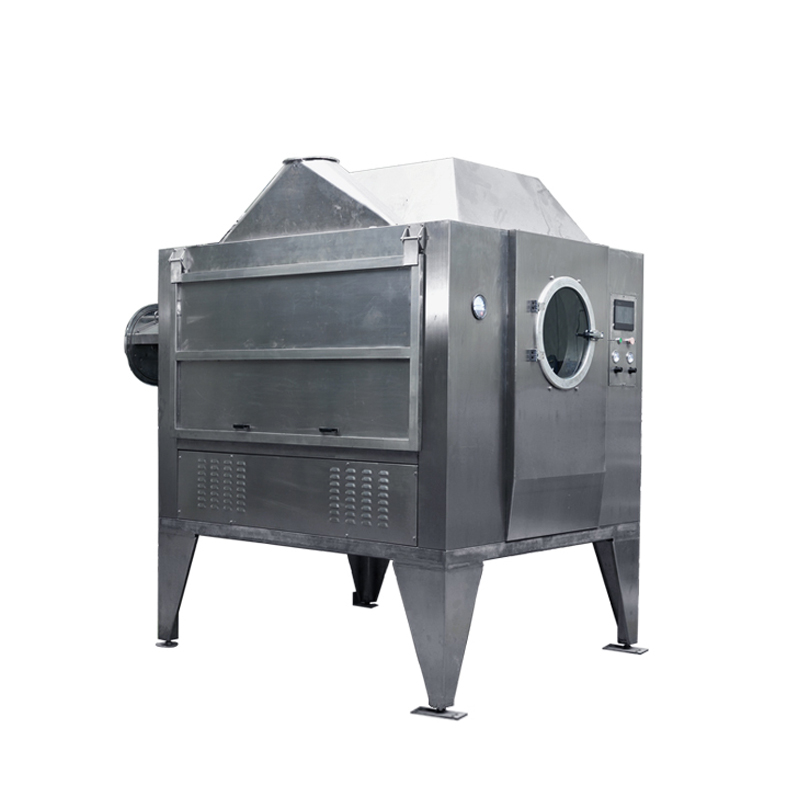

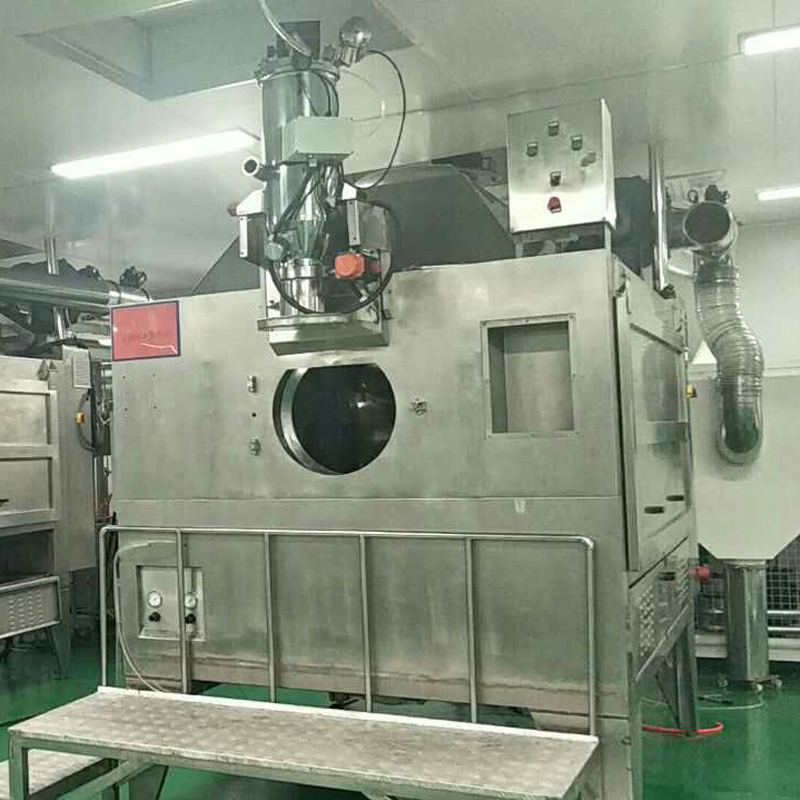

Rotary drum Coating / Polishing machine main unit

1) Spray system: Chocolate/sugar syrup

1.Six sets of special high pressure chocolate/ sugar syrup sprayer with anti-block device.

2.Inter-layer water heated temperature control system.

3.High pressure air nebulization of sugar syrup or chocolate.

4.Quick-wear part: Air cylinder of anti-block system.

2)Control system: Siemens

1.Frequency converter: YIQU.

2.Quick-wear part: Relay and switch.

3)Drive system

1.Main motor: KOR-30-4KW.

2.Rotary drum: 4mm thick SSS304, gear drive.

3.SSS guiding plate, easy assembling and dissembling.

4.Quick-wear part: None.

4)Unloading system

1.Airtec air cylinder control.

2.Quick-wear part: None.

Syrup feeding system

1)Syrup holding tank:

1.2 sets*300L, SSS304, arc bottom with bottom valve.

2.Mix motor: RV110-90-1.5KW, zhenyu gear motor.

3.Heating: 2pcs SSS heating tube.

4.Temperature control: PT100 temperature sensor.

5.Temperature display panel. Water heat preservation.

2)Pump

1.Durex rotor pump and flow control valve. 1.5T-2.2KW.

2.Circulating water heat preservation system.100w water pump.

3.Flow rate system and frequency converter automatically controls syrup feeding ratio.

4.φ38/51 SSS304 pipe.

Automatic cleaning system

1)0.5m³water tank, heated by 6KW heating pipe.

2)Adopt high pressure water pump to connect both internal and external spray nozzles.

3)While starting cleaning,high pressure rinsing with hot water will be done to internal part of the equipment.

4)The sewage will directly go to sewer tunnel through bottom pipe after back flow to filtered water tank.

Negative pressure power supply system

1)Powder tank:300L SSS304 tank.

2)Pipe: SS304, DN102

3)Vacuum power feeder:

1.Both side mirror polished.SSS304.

2.Feeding capacity:4T/h,powder density 1.0.

3.Size:560mm*1730mm.

4.Weight:90kg.

5.Filter:TI07 filtration precision.

6.Simense PLC/Synyder electronic components/SMC air valve

Power spray system

1)Powder tank:100L,SSS304.

2)Auto control ratio of powder according to the flow.

3)Evenly distributed.

4)Parts can be easily push off from the rail,makes cleaning work easy.

Dehumidifier

1)Equipped with the function of cooling, heating and humidity control.

2)Circular high/low pressure air inlet and outlet pipe.

3)Connection with dust filtration system to remove dust.

Lift feeding Machine & Unloading conveyor

1)Belt conveyor with frequency and speed control.

2)Auto unload to conveyor.

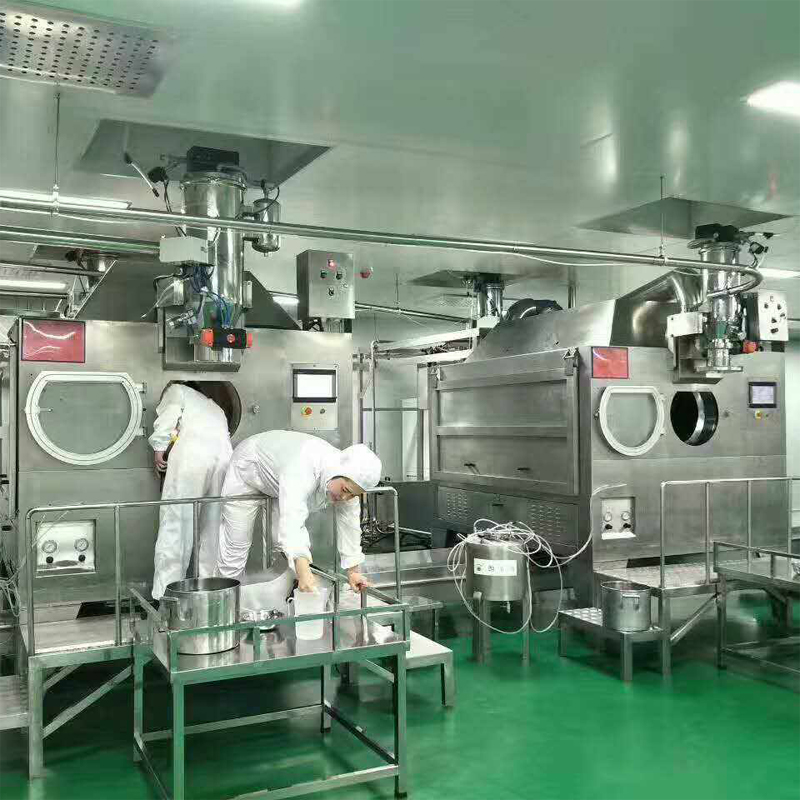

Prodiction Environment

4Mpa Compressed Air Source

Equipment Power:380+/-10% 50HZ

Be Equipped with air conditioner and dehumidifier to ensure the best temperature condition for product coating and polishing.

Product Application

The third generation of Full automatic Drum type sugar coating and polishing machine is mainly used in food industrial. It has been wildly used in chocolate and sugar coating for different kind of candies.
