High Quality 2D/3D Chocolate Making Machine For Sale

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Condition:
New
Applicable Industries:
Food & Beverage Factory
After Warranty Service:
Video technical support, Online support
Local Service Location:
Italy, Indonesia, India, Russia, Malaysia, South Africa
Showroom Location:
None
Brand Name:
LST
Place of Origin:
Sichuan, China
Voltage:
customed
Power(W):
10KW
Dimension(L*W*H):
8200*1080mm
Weight:
300kg
Certification:
CE
Warranty:
1 year
After-sales Service Provided:
Field installation, commissioning and training
Application fields:
Snack food factory, Bakery
Machinery Function:
MAKING CHOCOLATE
Raw material:
chocolate
Output product name:
CHOCOLATE
Key Selling Points:
Multifunctional
Item:
Small automatic full chocolate making line
Usage:
Making a variety of chocolates
Material:
Stainless Steel
Quality:
Great

Product Description

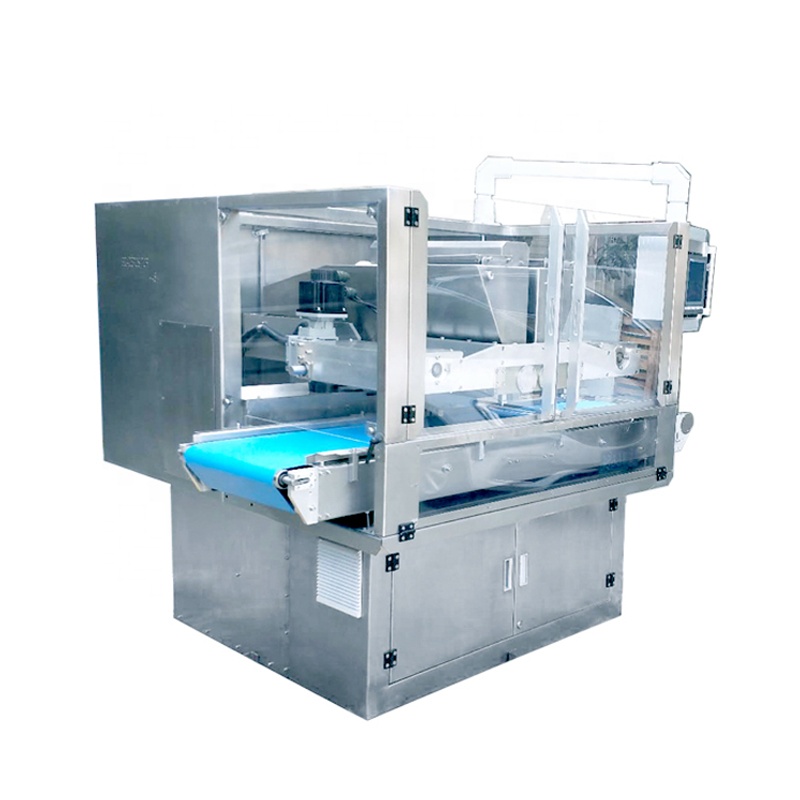

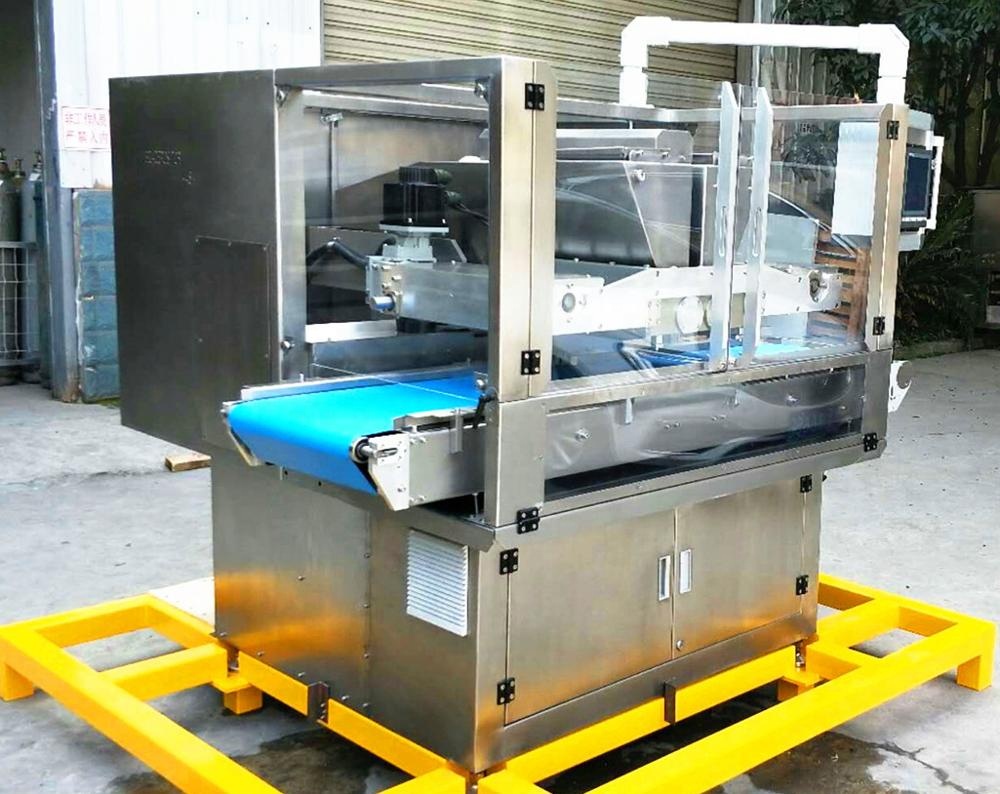

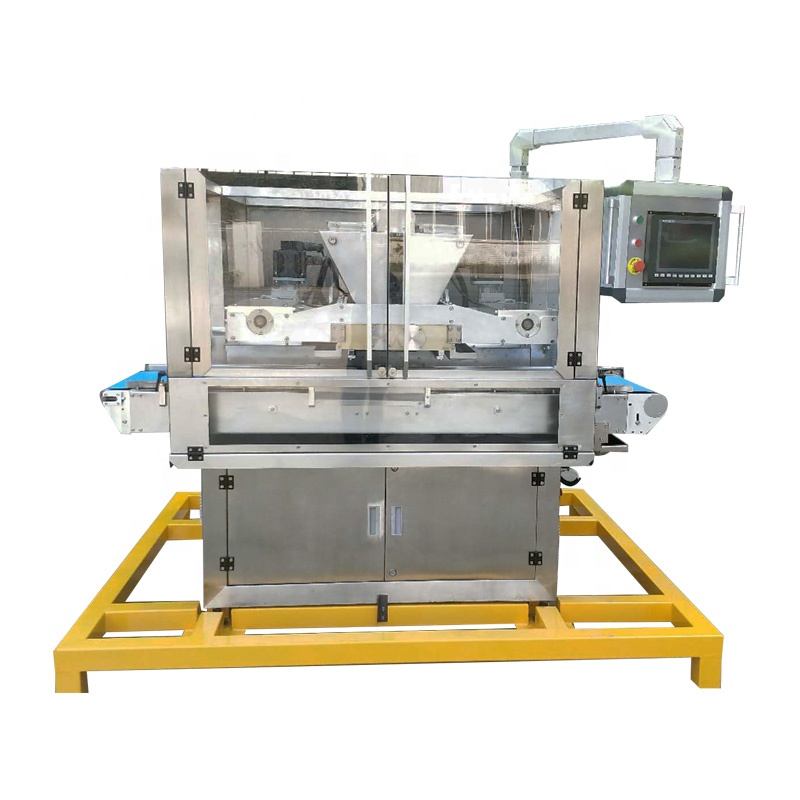

This Chocolate depositor is a high-tech automatic chocolate machine. The production process usually include mould heating, chocolate depositing, mould vibrating, mould conveying, cooling and demoulding. This line has been widely applied in production of pure solid chocolate, center filled chocolate, double-colored chocolate, particle mixed chocolate, biscuit chocolate, etc.

The most special features of this line is the flexibilityas every parts of this line can be used as an independent machine and also they can be combined with other machines.

Features of new version:

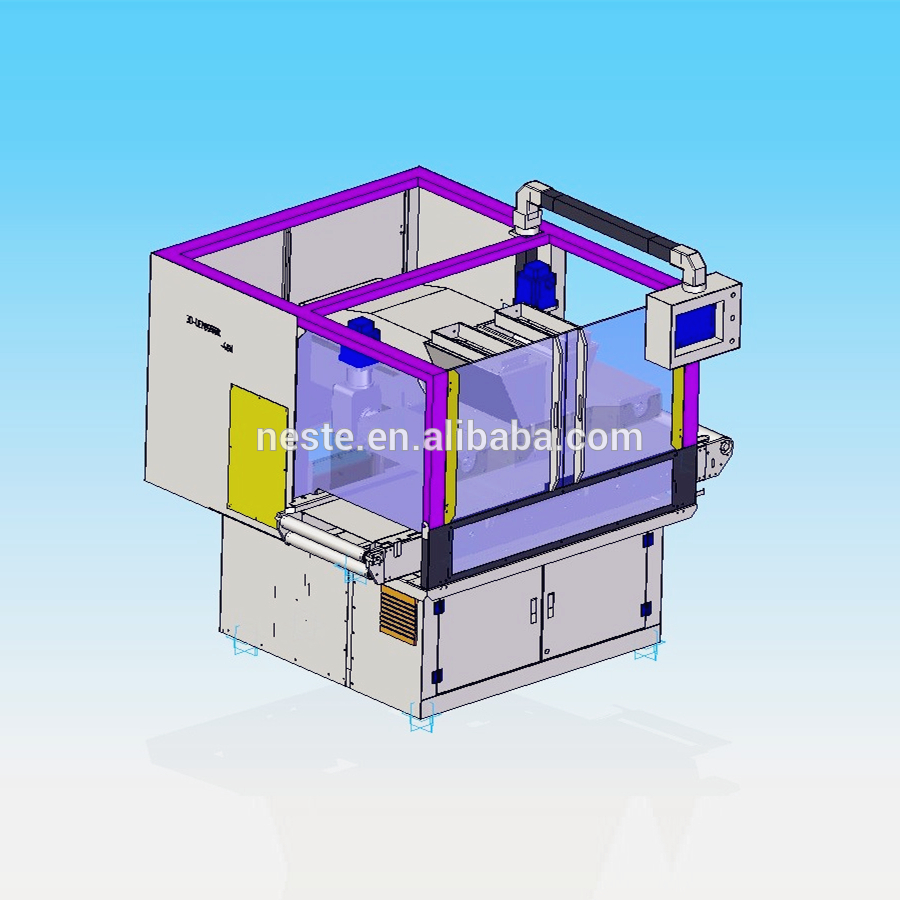

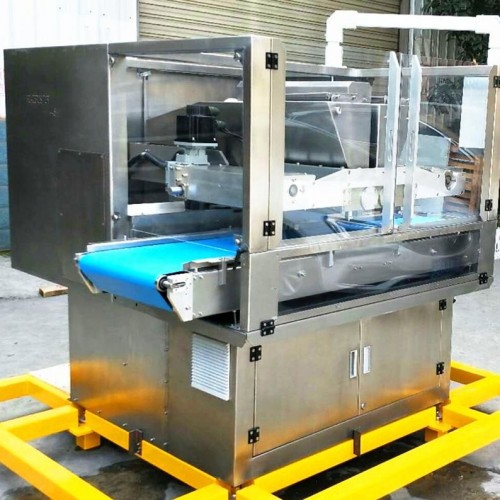

1.Depositor is with shell, these shell is not only for hygienic purpose, but also for safety protection.

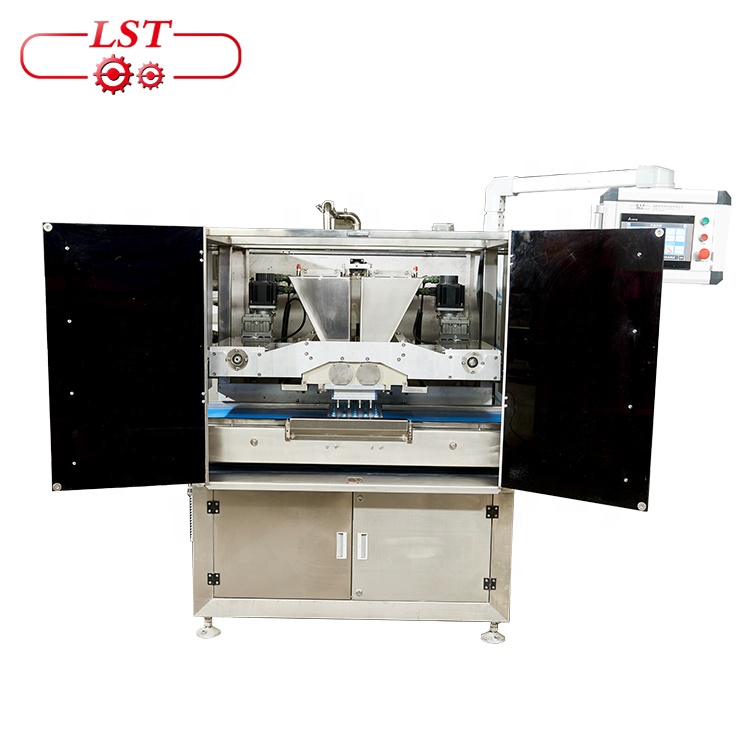

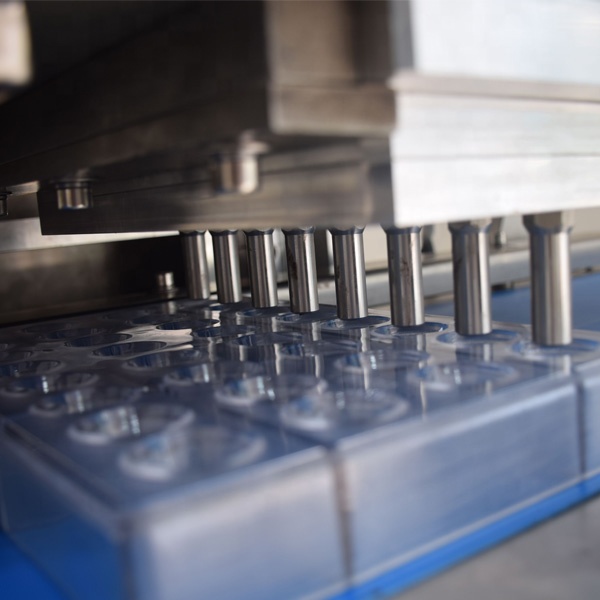

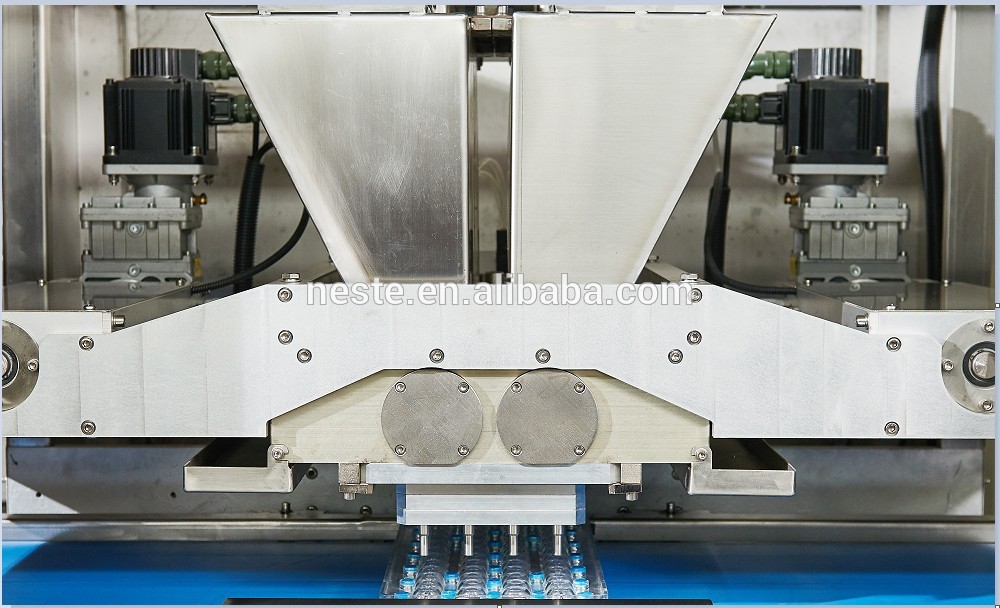

2.The depositing head is with completely new mechanism, which enables fast assemble and disassemble of the depositing head, depositing plate, etc. This design make it very fast and convenient for depositing plate change or depositor cleaning.

2D One-Shot Depositor: One-shot depositor, single color, two color, center filling, chocolate ball, center filled chocolate ball, etc.

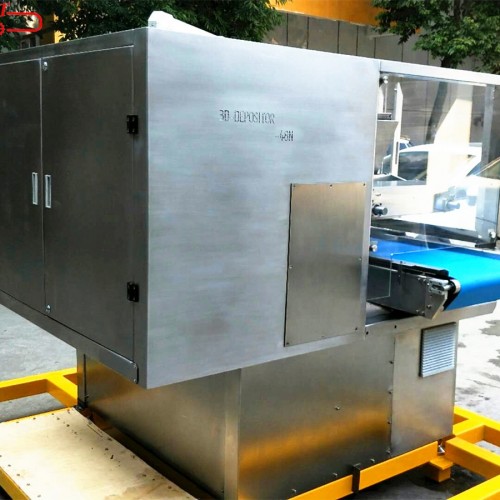

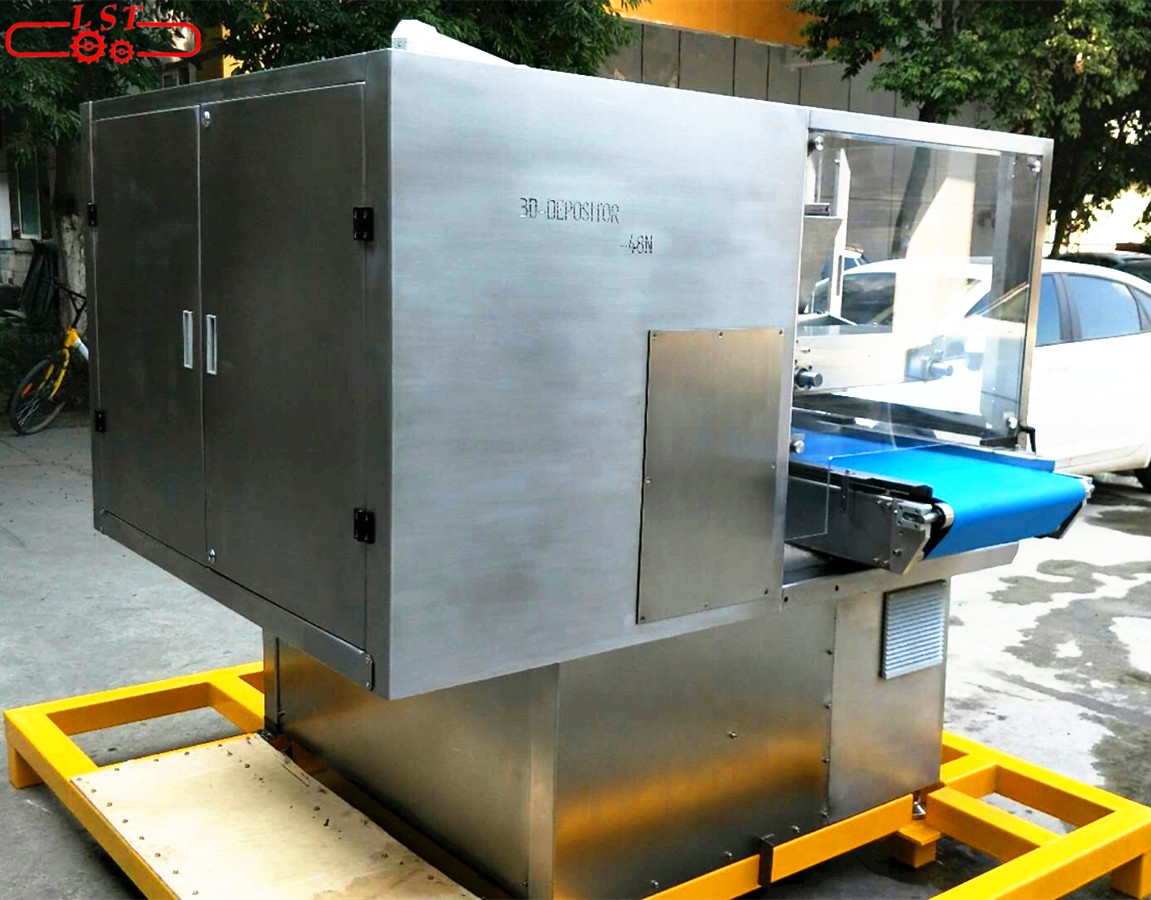

3D Decoration Depositor: Has all the function of 2D one-shot depositor, specialized in decoration depositing function. Depositor is able to move to any direction necessary. It is even able to draw picture



Parameter/Model

2D One-Shot Depositor

3D Decoration depositor

PLC

DELTA

DELTA

Depositing Speed

6-12 mouds/min

4-12 mouds/min

Piston Numbers

48/72/96*2 pistons

48/72/96*2 pistons

Products Per Shot

Up to 192 pcs

Up to 192 pcs

Servo Motor

4sets

5sets

Movable Axis

Z+X or Z+Belt

X+Y+Z

Depositing Mode

A/B/A+B

A/B/A+B

Depositing Accuracy

≤±0.1g

≤±0.1g

Filling Rate

≤80%

≤80%

Power

12KW

13KW

Dimension

2000*1580*1600mm

2000*1580*1600mm

Mould size

450-300-30/450-230-30/275-175-30mm

450-300-30/450-230-30/275-175-30mm
