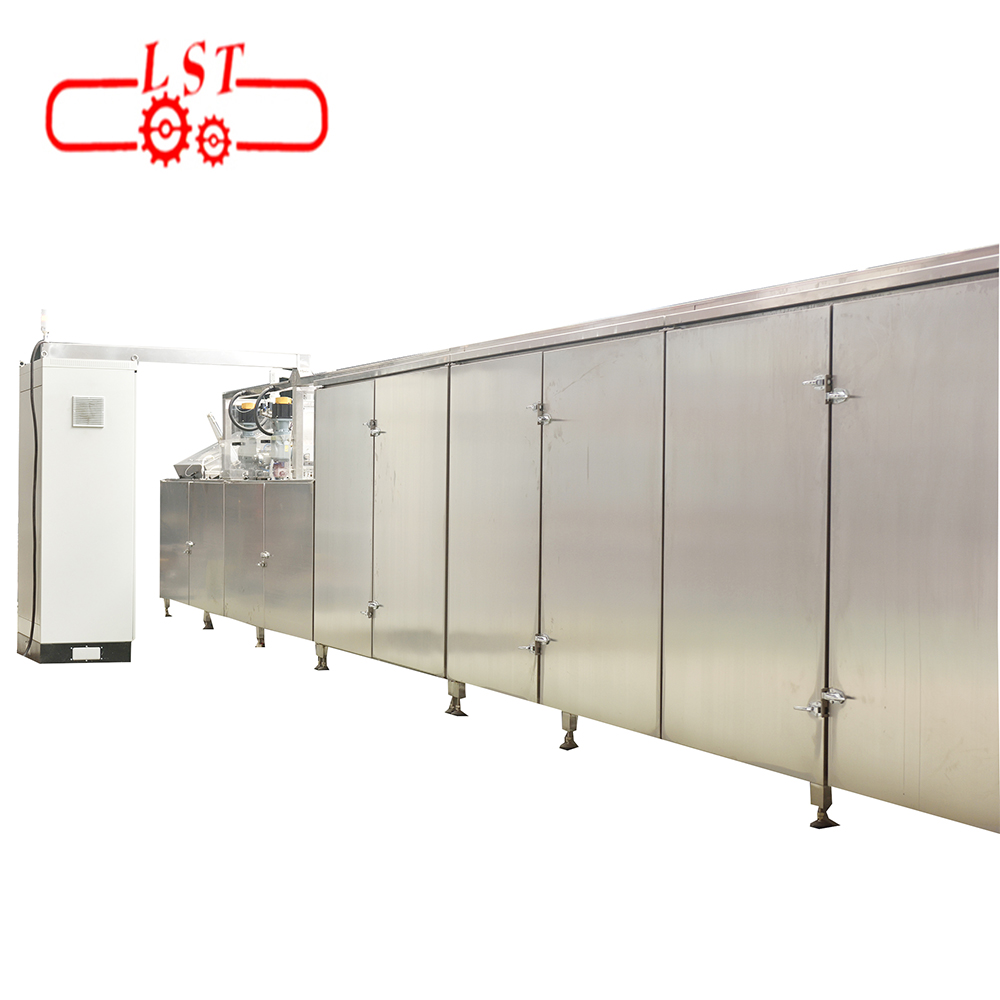

Fully automatic high output chocolate filled cereal snacks production line
- Brand Name:
-
LST
- Place of Origin:
-
Sichuan, China
- Voltage:
-
380V/50HZ/Three Phase
- Power(W):
-
24Kw
- Dimension(L*W*H):
-
18000*1500*1900mm
- Weight:
-
4000kg
- Certification:
-
CE
- Warranty:
-
1 year
- Product name:
-
chocolate production line
- Matched machine:
-
chocolate moulding machine
- Usage:
-
chocolate/candy/food moulding/depositing
- Raw material:
-
chocolate food
- Capacity:
-
12-24 moulds per min
- Compressor:
-
0.4Mpa
- Feature:
-
1D/2D/3D depositing
- Type:
-
direct line type
- Color:
-
as your requirements
- Service:
-
good any supports
- Condition:
-
New
- Application:
-
Chocolate
- After-sales Service Provided:
-
Engineers available to service machinery overseas

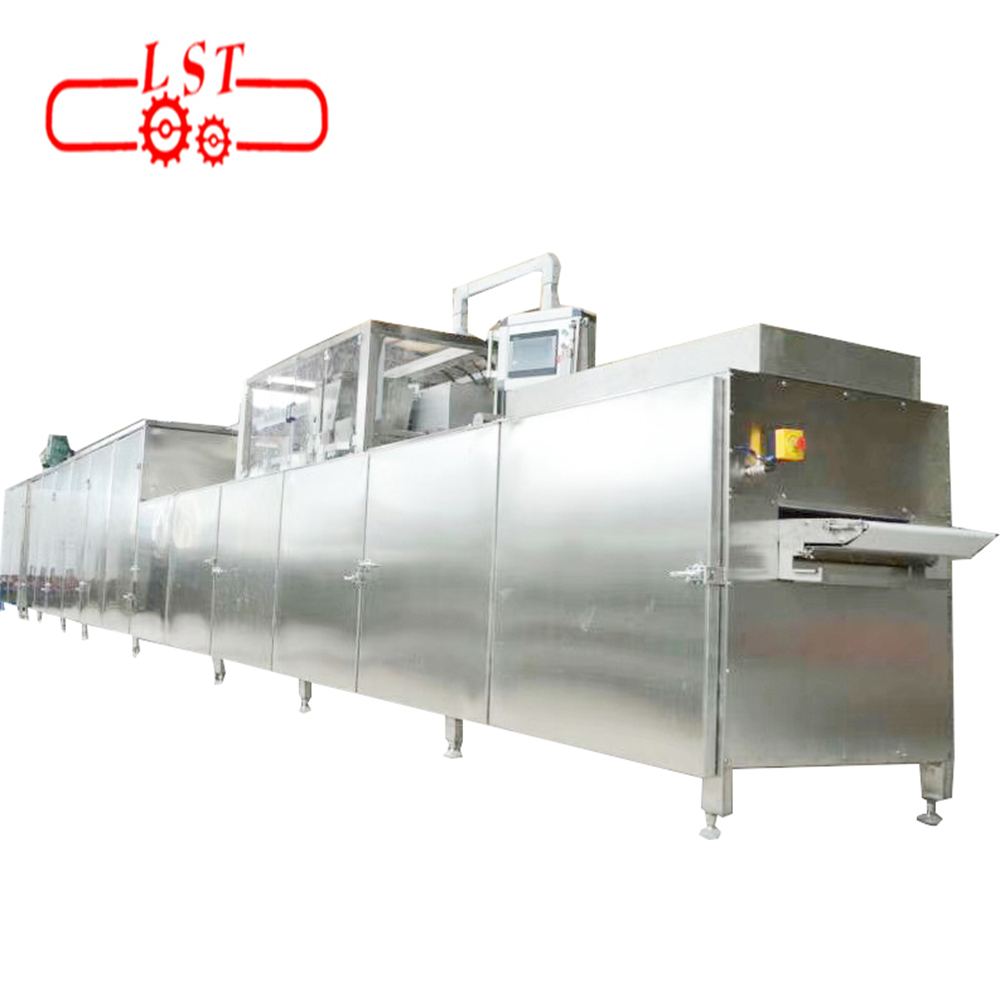

Fully automatic high output chocolate filled cereal snacks production line
This Chocolate depositing line is a high tech full automatic chocolate machine for chocolate molding. The production process include mould heating, chocolate depositing, mould vibrating, mould conveying, cooling and demolding. This line has been widely applied in production of pure solid chocolate, center filled chocolate, double-colored chocolate, particle mixed chocolate, biscuit chocolate,etc.
|
Model |
LST-1000 |
|
Production capacity( kg/shift) |
200~700 |
|
Speed of stroke( n/min) |
6~12 |
|
Mould heating and fan power |
6kw |
|
Mould temperature |
24~45 |
|
Vibrating motor power |
1.1kw |
|
Vibrating time |
30~60s |
|
Depositing motor power |
1.5kw |
|
Stirring motor power |
0.5kw |
|
Circulating hot-water power |
4.5kw |
|
Circulating pipe water pump power |
0.5kw |
|
Mould size and numbers needed |
510x225x30mm |
|
400pieces needed |
|
|
Compressed air consumption |
2.5m3/min |
|
Compressed air pressure |
0.4Mpa |
|
Gross weight (kg) |
6000kg |
|
Dimension |
1.Mould heating unit: |
|
L1700xW1045xH950mm |
|
|
2.Depositing unit: |
|
|
L1575xW1045xH1130mm |
|
|
3.Vibrating unit: |
|
|
L1500xW1045xH850mm |
Production process
Mould heating-chocolate depositing-mould vibrating-chocolate cooling-mould vibrating
Main fatures & advantages
1.Full automatic PLC controlled,highly stable and reliable. Servo system not only minimize the maintenance cost and contamination to products, but also realize a more stable and bigger center filling.
2.The Beckhoff Remote Control System from Germany enables us to modify system parameters,diagnosis & troubleshooting on line, which is not only easy and fast, but also cost-saving.
3.There are a lot of add-on devices can be attached to this production line, such as Auto Biscuits Feeder, Auto Wafer Feeder, Auto Sprinkler,etc. Customers can choose these add-on devices accordingly and add or change the add-on devices for new product whenever needed.
4.The high configuration production line can be combined by all kind of parts, and these parts can be separated and recombined with some other parts to makes another production line for different products.
5.There are single depositor,double depositor or more to meet different product production need. The special mechanism of the depositor device makes the installation, takedown and switch of the depositor EASY & FAST. It only takes a very short time to clean the depositor or switch to another depositor.
6.To produce different kinds of chocolate products, you only need to change a depositor or the chocolate
syrup distribution plate that used with the depositor.
7.The mobile depositor enables the mobile mould-follow-depositing function, which greatly increase the output of the production line by 20%.
8.With plastic guide-rail protection, the chain will not contact with spilled chocolate,which meets the overall food hygiene requirements.

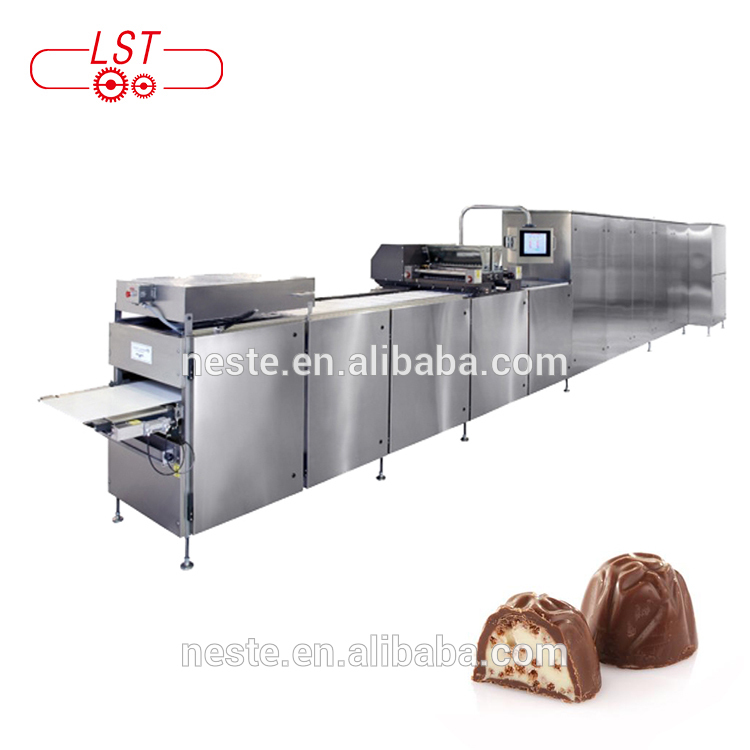

Products show

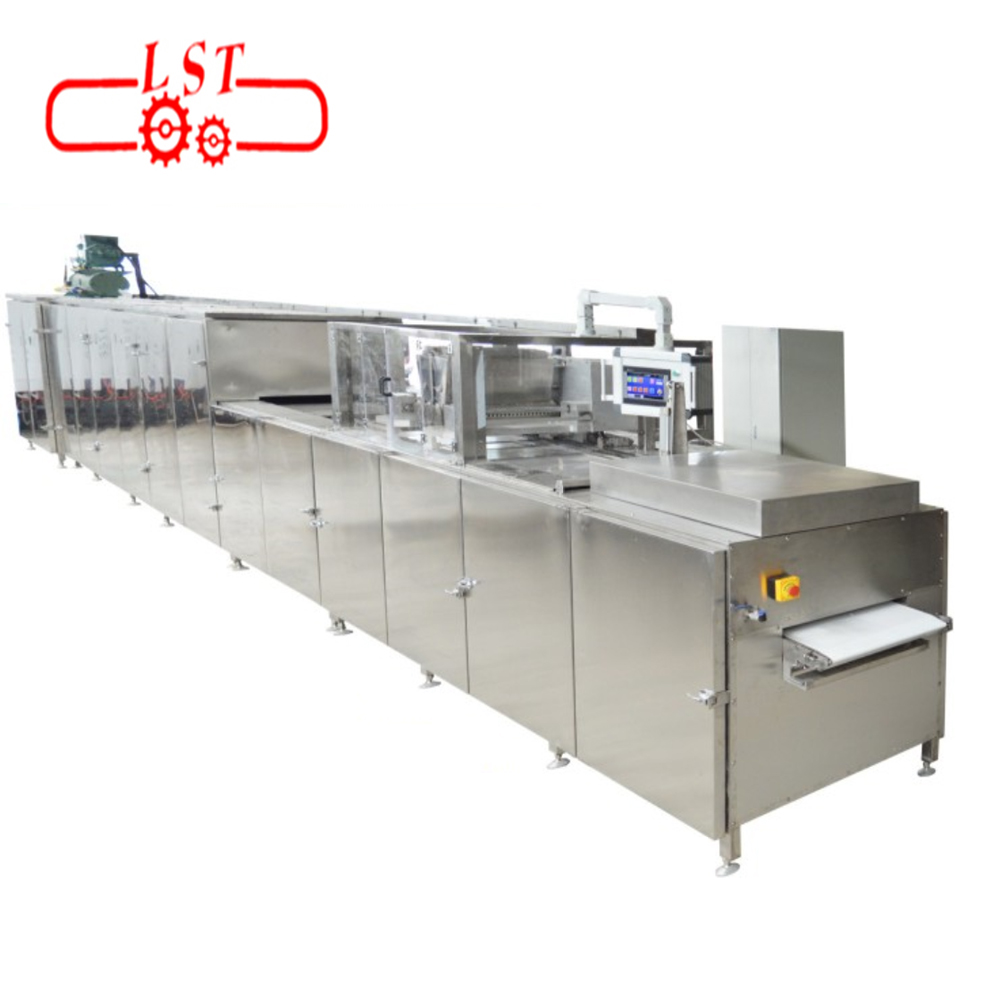

Fully automatic high output chocolate filled cereal snacks production line
Founded in 2009, Chengdu LST has professional R&D team and specialized equipment, specializes in manufacturing middle-high class of chocolate equipment, such as chocolate molding Machines, chocolate coating machines, chocolate enrobing machines, chocolate & grain mixture moulding machine, ball mill, etc.
Our chocolate equipment have been popular in the food industry. At the same time, the products produced by our equipment are also in the forefront of the candy industry as well. Besides the domestic market, our equipment have been widely sold to Germany, India,Vietnam, South Korea, Canada, Australia, Russia, Ecuador, Malaysia, Romania Israel,Peru and many other countries in the world.
We provide OEM service. At the same time, life-time after-sales service for our equipment are provided to world wide customer and we are looking forward to your visit.

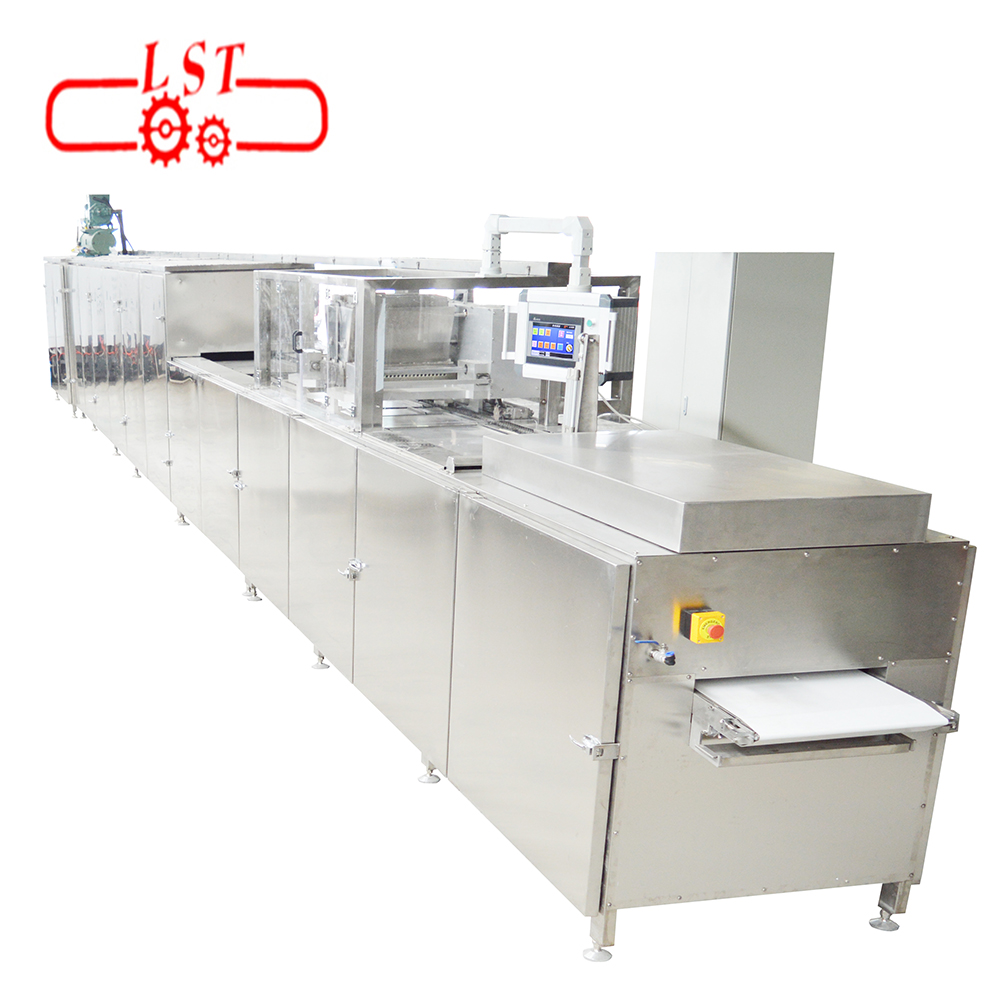

Fully automatic high output chocolate filled cereal snacks production line
Pre-sale Services
1. We’ll guide you to choose the most suitable machines for your project.
2. When sign contract, we will notify the power supply voltage and frequency.
3. Strict with complete testing and well adjustment according to customers’ requirement before shipment.
After-sale Service
1. Technical service provided.
2. Installation and On-site training service provided. Debugger only debug and train 2 kinds of products. Extra charge apply for extra products.Technicians’ installation and commissioning charges include round-way tickets, inland traffic, lodging and boarding fee are on the Buyer’s account.
3. One year warranty for standard operation. Life-time technical support provided.
Service charge applies for incorrect operation or artificial damage.
