Full Automatic Compound Chocolate Bar Production Line Chocolate Wafer Depositing Line

Short Description:

Send email to us Download as PDF

Product Detail

Product Tags

Overview

Quick Details

Condition:: New, New

Applicable Industries:: Food & Beverage Factory

Brand Name:: LST

Place of Origin:: Sichuan, China

Voltage:: 380V/50HZ/Three Phase

Power(W):: 24Kw

Dimension(L*W*H):: 18000*1500*1900mm

Weight:: 4000kg

Certification:: CE

Warranty:: 1 year

Application fields:: Snack food factory

Machinery Function:: depositing

Raw material:: chocolate, chocolate food

Output product name:: chocolate/biscuit

Application:: Chocolate

After-sales Service Provided:: Engineers available to service machinery overseas, Field installation, commissioning and training

Product name:: chocolate bar production line

Matched machine:: chocolate moulding machinery

Usage:: chocolate/candy/food moulding/depositing

Capacity:: 12-24 moulds per min

Feature:: 1D/2D/3D depositing

Service:: good any supports

Product Description

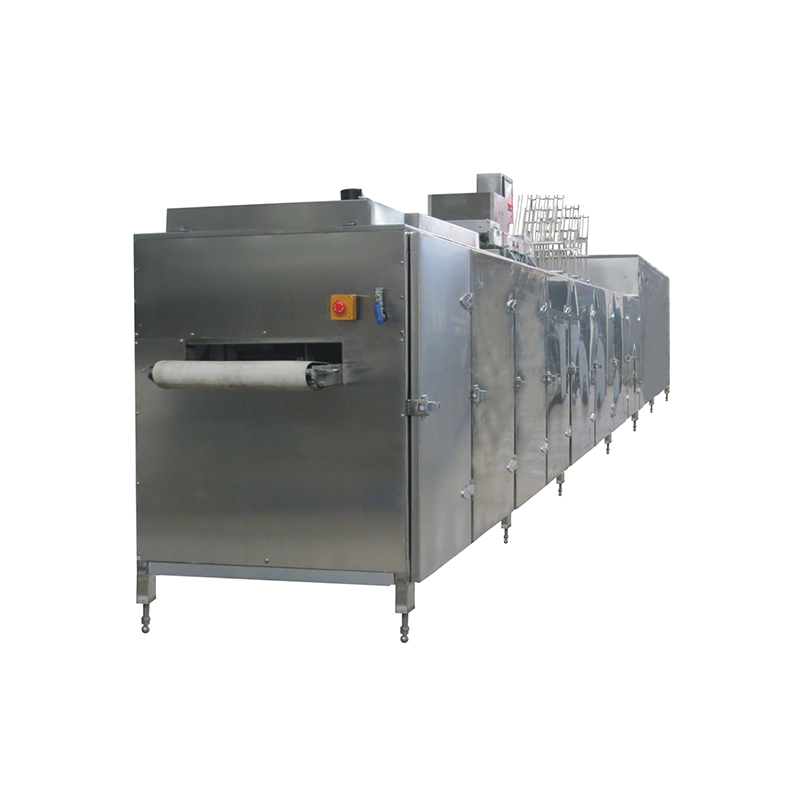

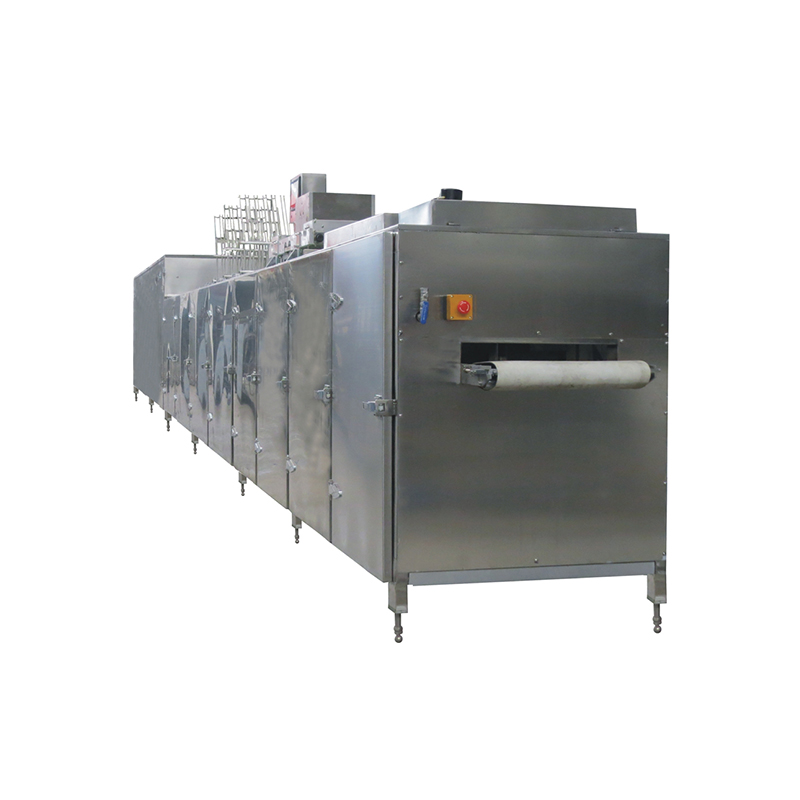

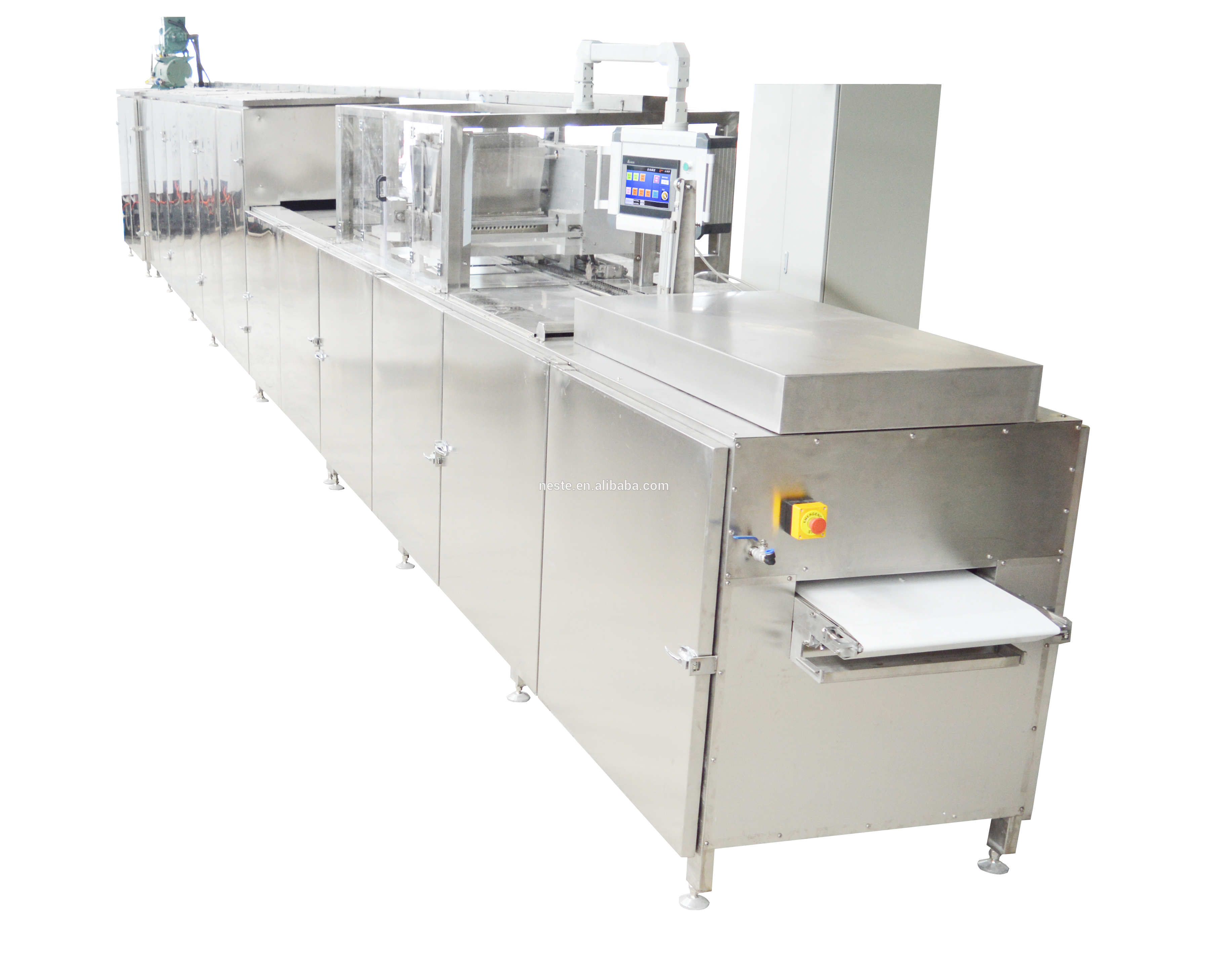

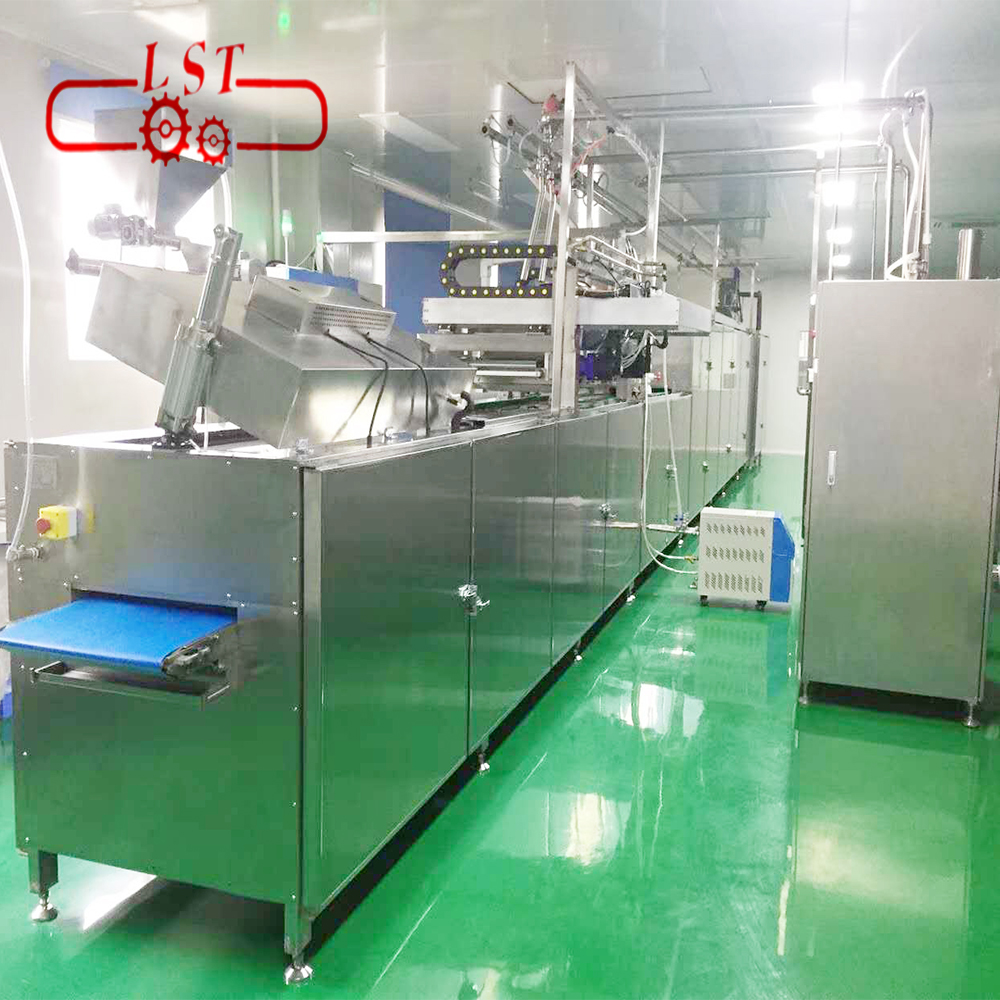

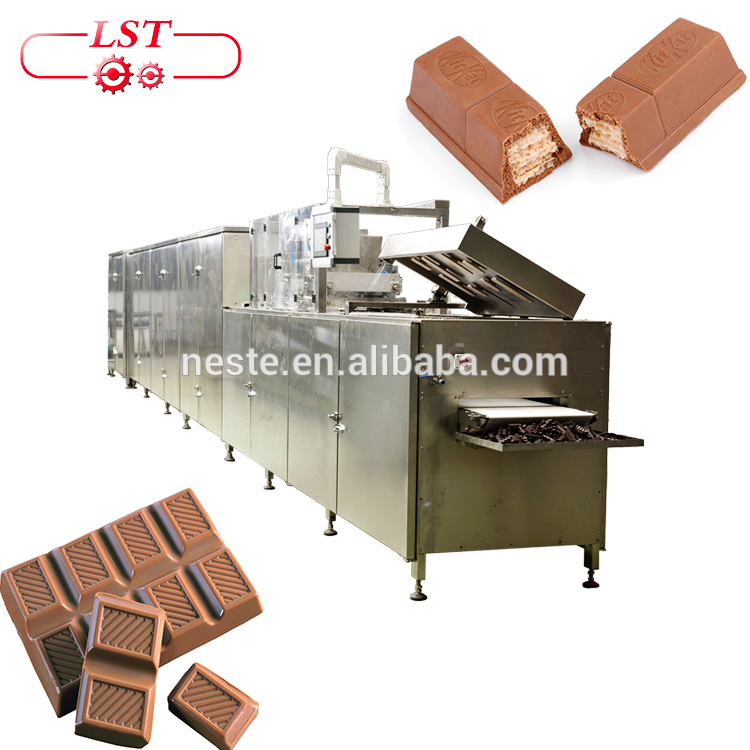

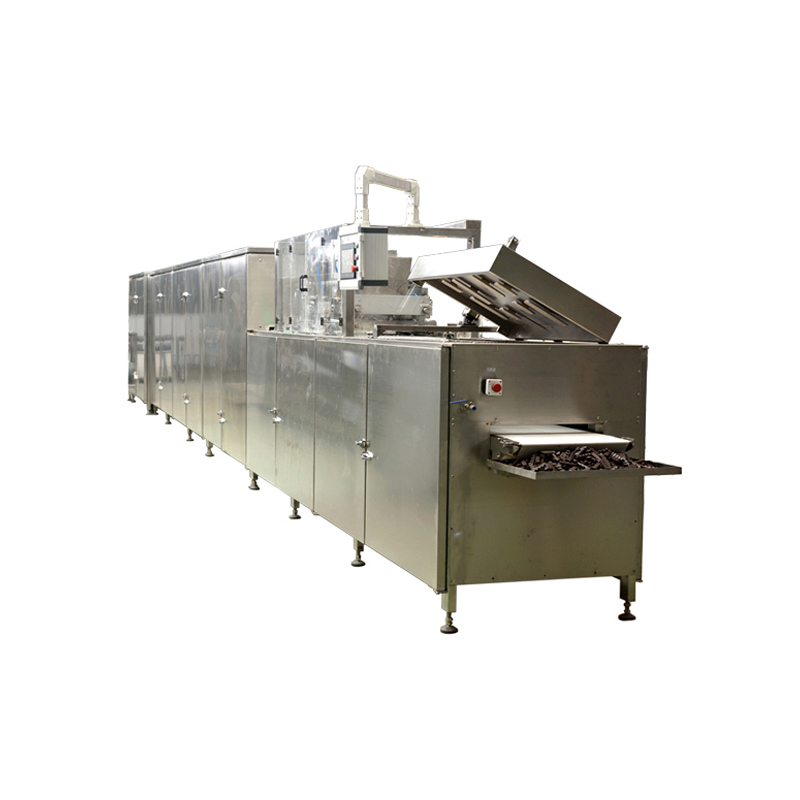

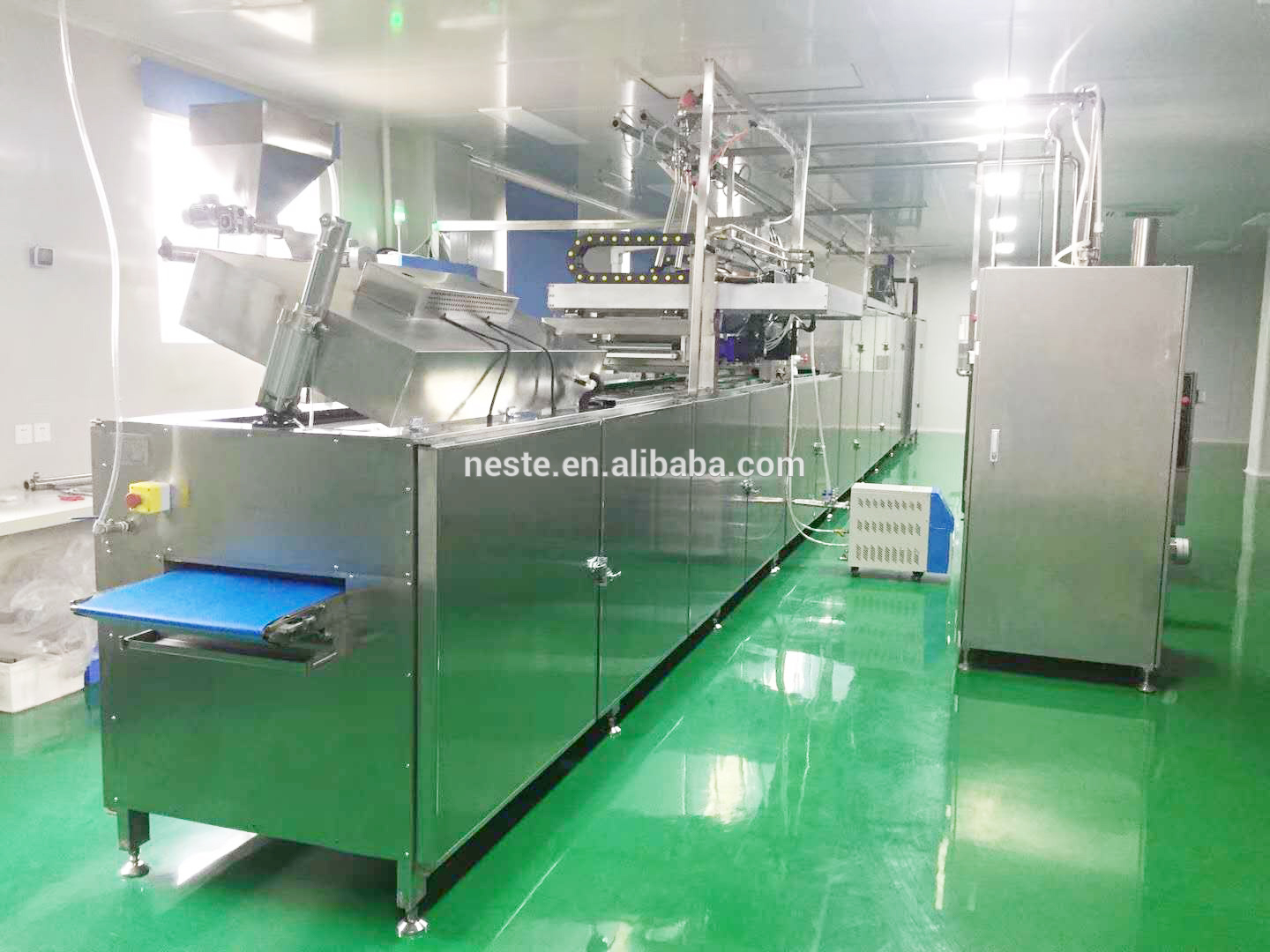

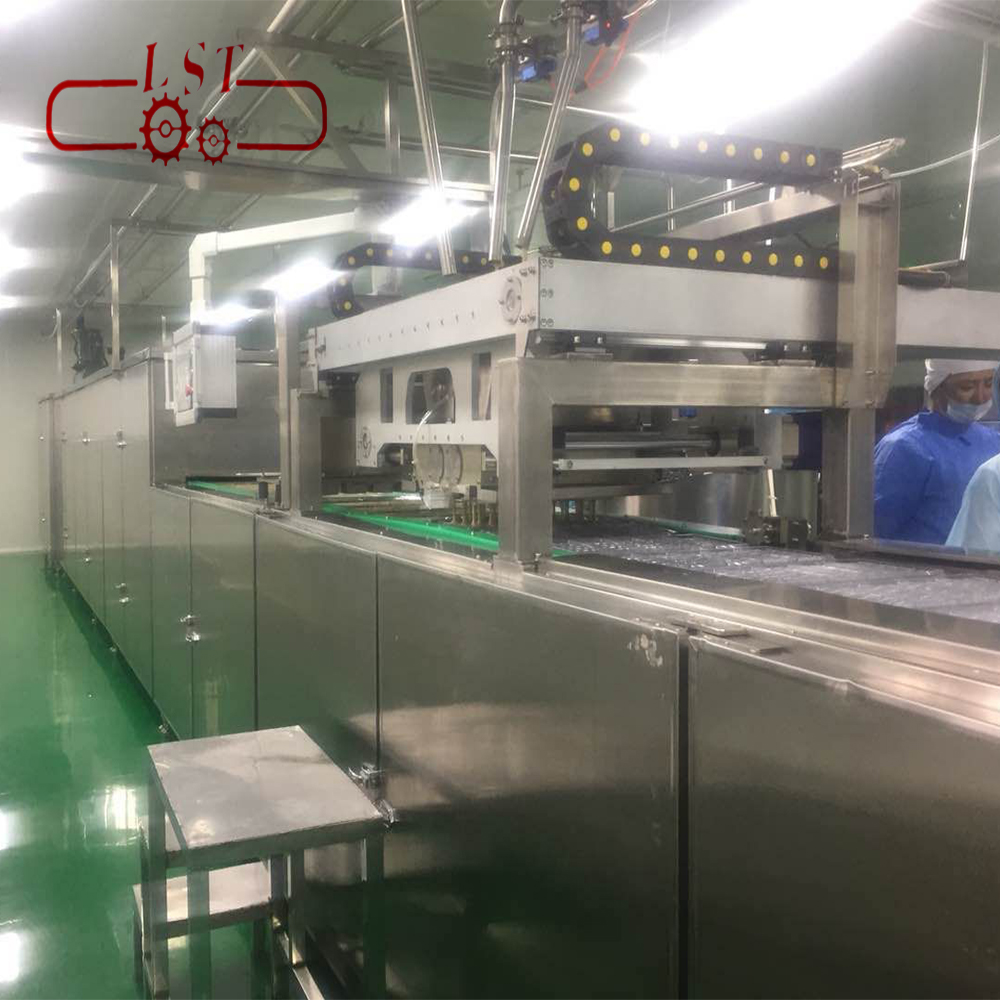

This Chocolate depositing line is a high tech full automatic chocolate machine for chocolate molding. The production process include mould heating, chocolate depositing, mould vibrating, mould conveying, cooling and demolding. This line has been widely applied in production of pure solid chocolate, center filled chocolate, double-colored chocolate, particle mixed chocolate, biscuit chocolate,etc.

Model	LST-1000
Production capacity( kg/shift)	200~700
Speed of stroke( n/min)	6~12
Mould heating and fan power	6kw
Mould temperature	24~45
Vibrating motor power	1.1kw
Vibrating time	30~60s
Depositing motor power	1.5kw
Stirring motor power	0.5kw
Circulating hot-water power	4.5kw
Circulating pipe water pump power	0.5kw
Mould size and numbers needed	510x225x30mm
Mould size and numbers needed	400pieces needed
Compressed air consumption	2.5m3/min
Compressed air pressure	0.4Mpa
Gross weight (kg)	6000kg
Dimension	1.Mould heating unit:
	L1700xW1045xH950mm
	2.Depositing unit:
	L1575xW1045xH1130mm
	3.Vibrating unit:
	L1500xW1045xH850mm
