Full automatic chocolate making machine chocolate molding machine production line

Short Description:

Send email to us Download as PDF

Product Detail

Product Tags

Overview

Quick Details

Condition:: New, New

Applicable Industries:: Food & Beverage Factory

After Warranty Service:: Online support

Local Service Location:: None

Showroom Location:: None

Brand Name:: LST

Place of Origin:: Sichuan, China

Voltage:: 330/380V

Power(W):: 24

Dimension(L*W*H):: 14500*1200*1800mm

Weight:: 4000kg

Certification:: CE ISO

Warranty:: 1 year

After-sales Service Provided:: Field installation, commissioning and training, Engineers available to service machinery overseas

Application fields:: Snack food factory, Beverage Factory

Machinery Function:: Depositing Molding

Raw material:: Fruit, Nuts, chocolate

Output product name:: chocolate

Key Selling Points:: High Productivity

Product name:: Full automatic chocolate production line

Application:: Chocolate

Material:: Food Grade Stainless Steel

Motor:: Servo Motor

Package:: Wooden Case

Full automatic chocolate making machine chocolate molding machine production line

Product parameters

Model	LST-1000
Production capacity( kg/shift)	200~700
Speed of stroke( n/min)	6~12
Mould heating and fan power	6kw
Mould temperature	24~45
Vibrating motor power	1.1kw
Vibrating time	30~60s
Depositing motor power	1.5kw
Stirring motor power	0.5kw
Circulating hot-water power	4.5kw
Circulating pipe water pump power	0.5kw
Mould size and numbers needed	300x225x30mm
Mould size and numbers needed	100pieces needed
Compressed air consumption	2.5m3/min
Compressed air pressure	0.65Mpa
Gross weight (kg)	800
Dimension	1.Mould heating unit: L1700xW1045xH950mm
	2.Depositing unit: L1575xW1045xH1130mm
	3.Vibrating unit: L1500xW1045xH850mm

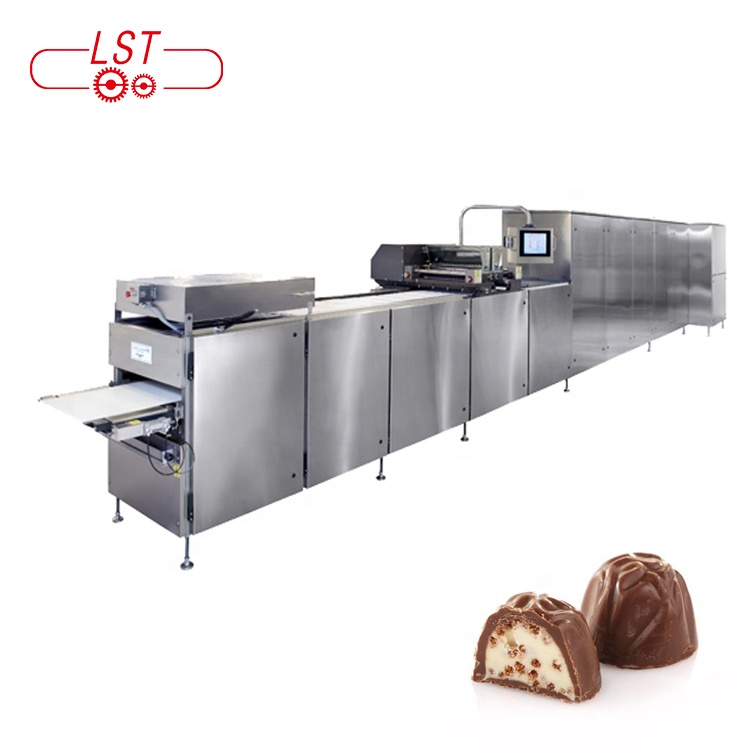

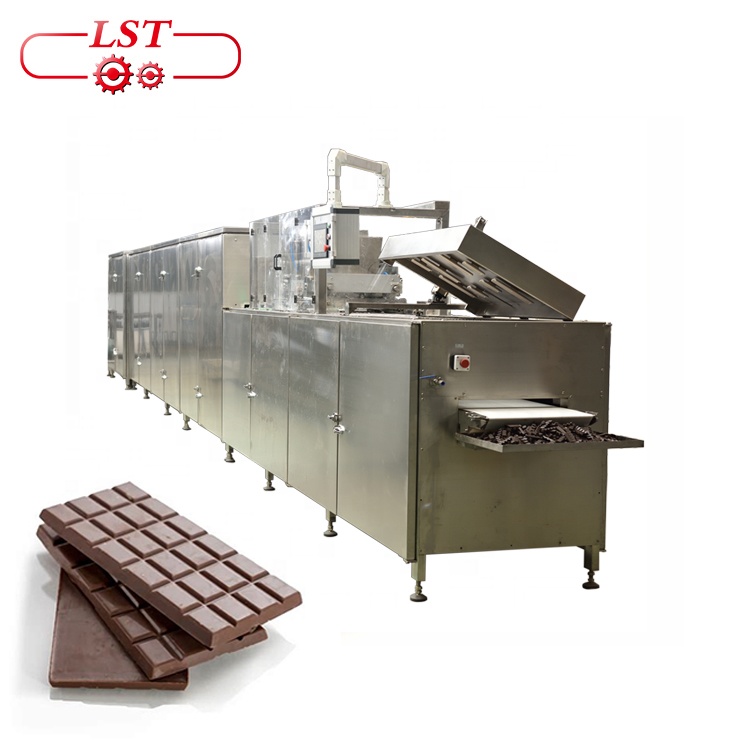

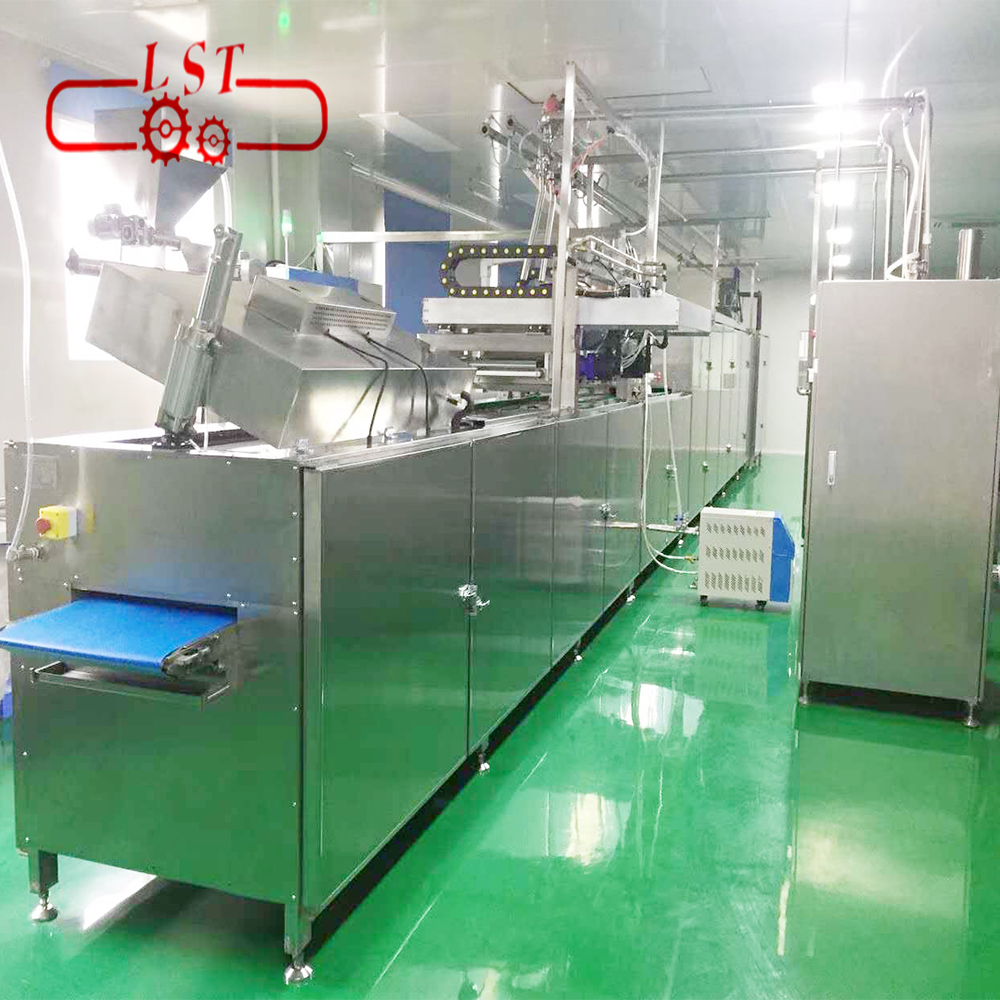

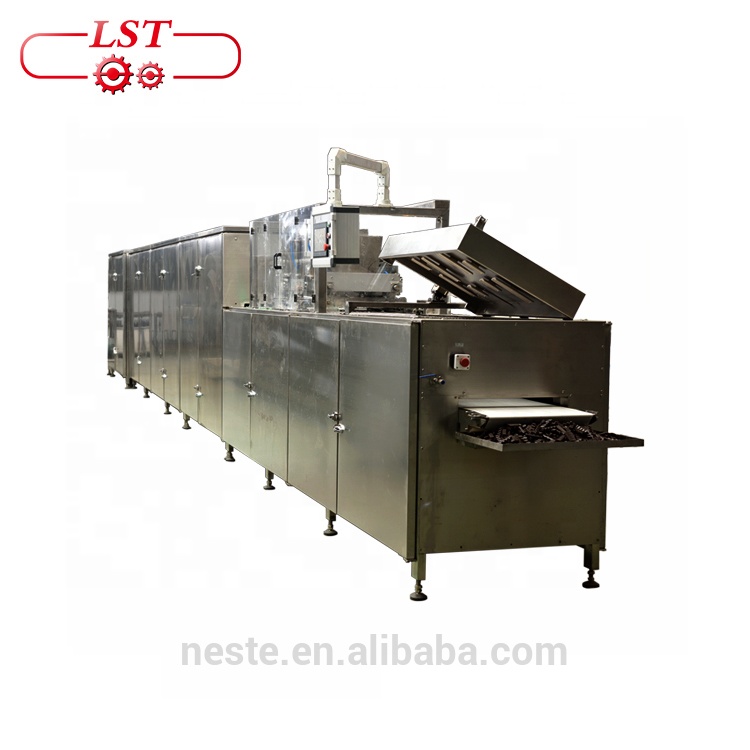

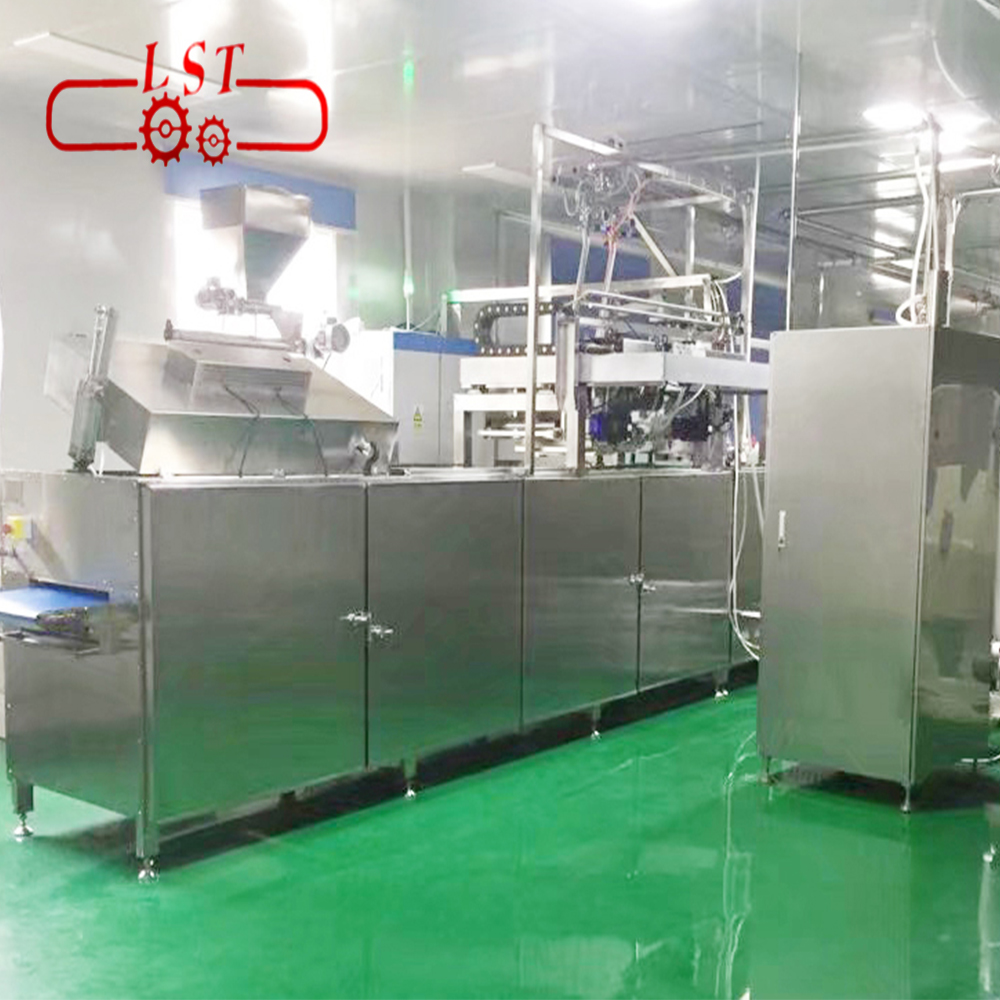

This Chocolate depositing line is a high tech full automatic chocolate machine for chocolate molding. The production process include mould heating, chocolate depositing, mould vibrating, mould conveying, cooling and demolding. This line has been widely applied in production of pure solid chocolate, center filled chocolate, double-colored chocolate, particle mixed chocolate, biscuit chocolate,etc.

Main Features & Advantages

-Stable production,large output.
-The automatic chocolate molding line includes mold heating machine,one-shot depositing machine,mold vibrating machine,vertical cooling machine and demoulding machine.We can also add special machines according to your needs.
-This line can produce pure chocolate,center filling chocolate,two-color chocolate,granules mixed with chocolate and biscuit chocolate.The product is smooth and beautiful,and accurate.

There are many other add-on devices,such as auto mould loader,sprinkler,biscuit feeder,Conche, tempering machine,decorating machine and many more. You can add whatever part you need to make it a full automatic production line and produce different kinds of products.
