Factory Supply Chocolate Depositing Machine Automatic Chocolate Machine Production Line

Short Description:

Send email to us Download as PDF

Product Detail

Product Tags

Overview

Quick Details

Condition:: New, New

Applicable Industries:: Food & Beverage Factory

After Warranty Service:: Video technical support, Online support

Local Service Location:: Indonesia, India, Russia, Malaysia, Australia, South Korea, Uzbekistan

Showroom Location:: None

Brand Name:: LST

Place of Origin:: Sichuan, China

Voltage:: 330/380V

Power(W):: 24

Dimension(L*W*H):: 18000*1500*1900mm

Weight:: 4000kg

Certification:: CE ISO

Warranty:: 1 year

After-sales Service Provided:: Field maintenance and repair service, Engineers available to service machinery overseas

Application fields:: Snack food factory, Bakery

Machinery Function:: depositing

Raw material:: Milk, Corn, Fruit, Wheat, Nuts, Soybean, Flour, Vegetables, Water

Output product name:: Chocolate

Key Selling Points:: Multifunctional

Application:: Biscuit

Model Number:: LSTJ2000

Factory Supply Chocolate Depositing Machine Automatic Chocolate Machine Production Line

Product parameters

Model	LST-1000
Production capacity( kg/shift)	200~700
Speed of stroke( n/min)	6~12
Mould heating and fan power	6kw
Mould temperature	24~45
Vibrating motor power	1.1kw
Vibrating time	30~60s
Depositing motor power	1.5kw
Stirring motor power	0.5kw
Circulating hot-water power	4.5kw
Circulating pipe water pump power	0.5kw
Mould size and numbers needed	510x225x30mm
Mould size and numbers needed	400pieces needed
Compressed air consumption	2.5m3/min
Compressed air pressure	0.4Mpa
Gross weight (kg)	6000kg
Dimension	1.Mould heating unit:
	L1700xW1045xH950mm
	2.Depositing unit:
	L1575xW1045xH1130mm
	3.Vibrating unit:
	L1500xW1045xH850mm

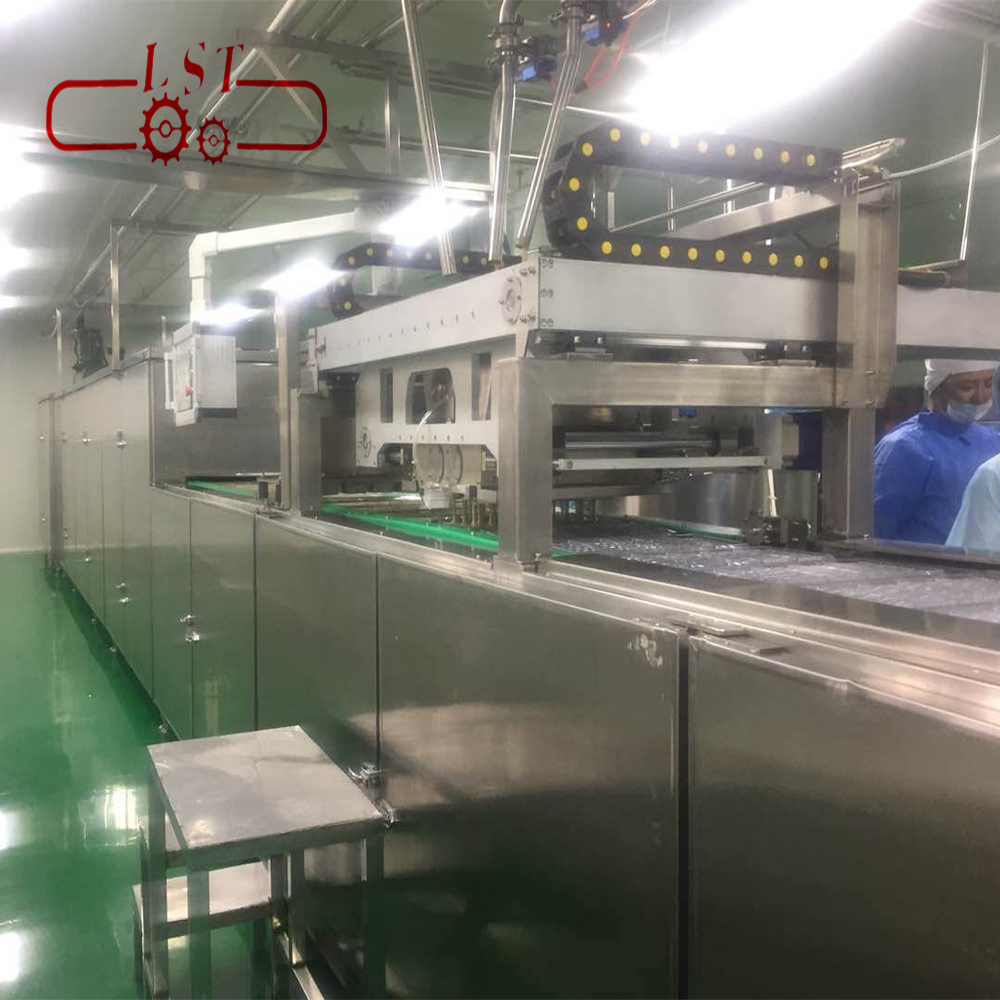

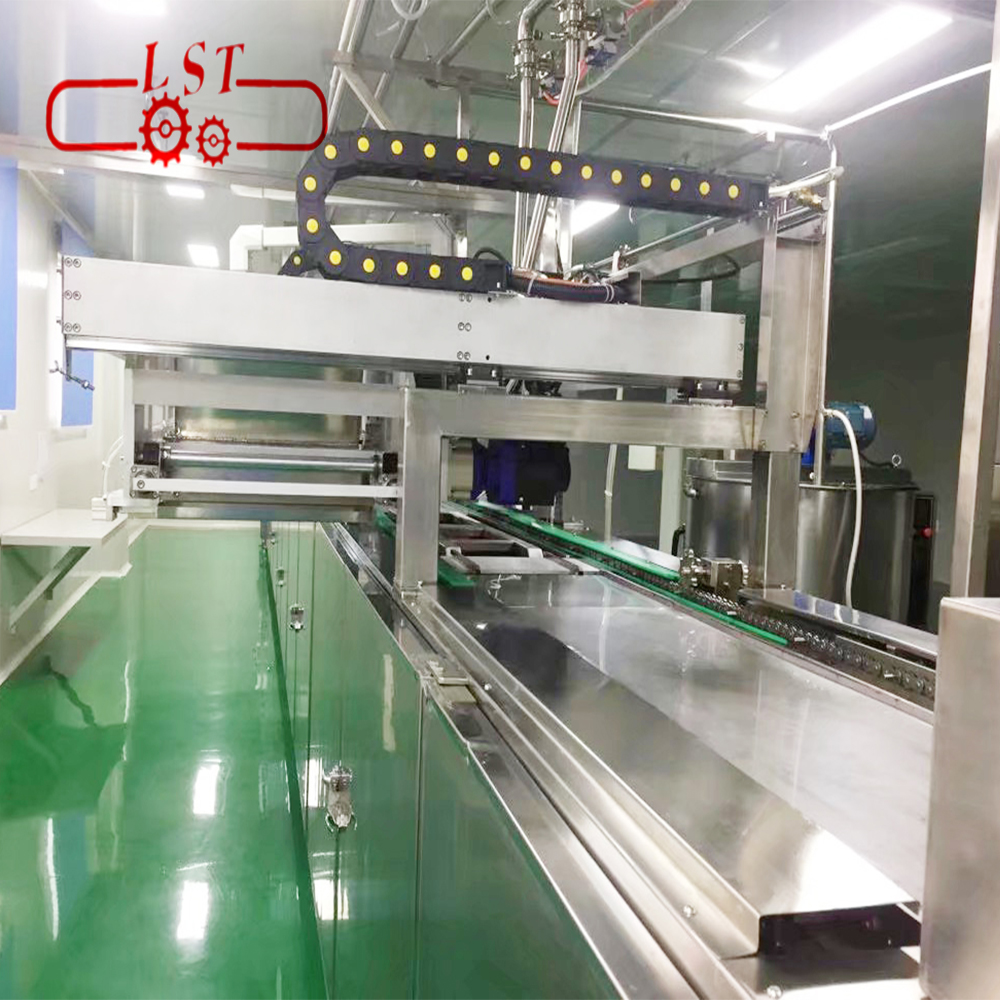

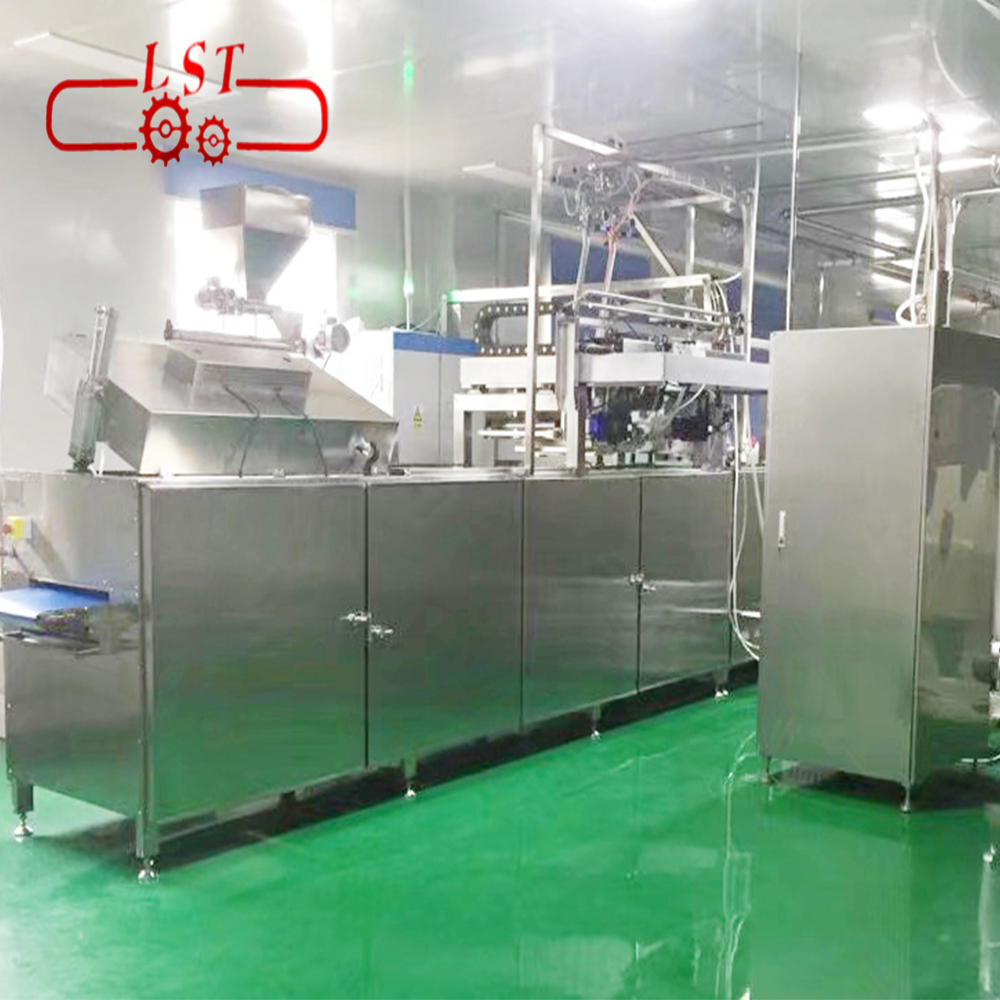

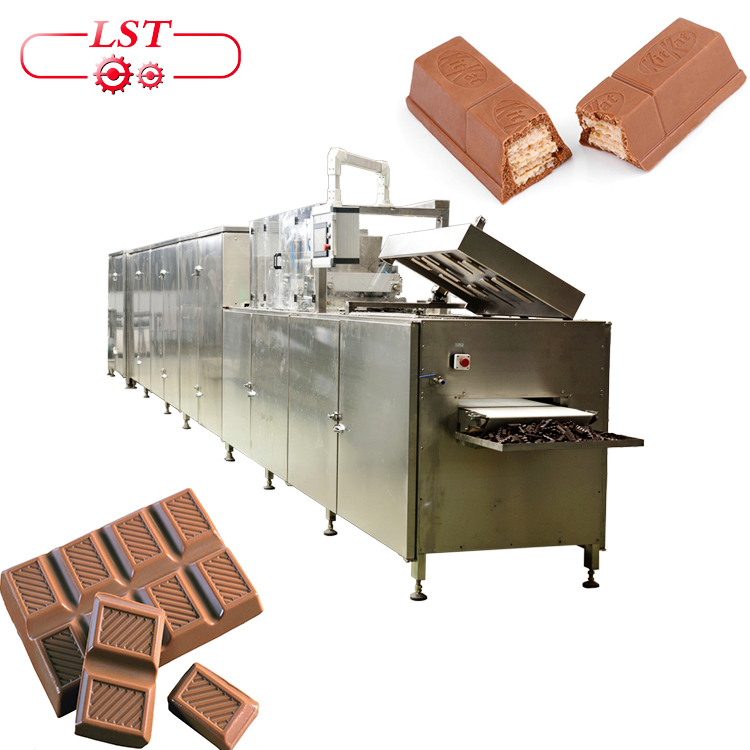

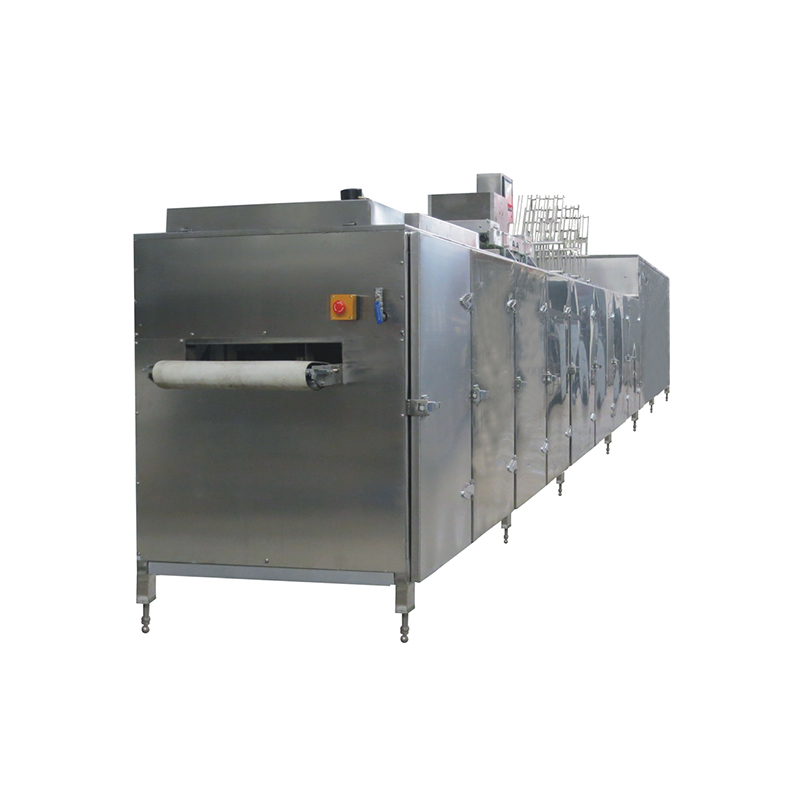

This Chocolate depositing line is a high tech full automatic chocolate machine for chocolate molding. The production process include mould heating, chocolate depositing, mould vibrating, mould conveying, cooling and demolding. This line has been widely applied in production of pure solid chocolate, center filled chocolate, double-colored chocolate, particle mixed chocolate, biscuit chocolate,etc.

Main Features & Advantages

1.Full automatic PLC controlled,highly stable and reliable. Servo motor not only minimize the maintenance cost and contamination to products, but also realize a more stable and bigger center filling.

2.The Remote Control System from Germany enables us to modify system parameters,diagnosis & troubleshooting on line, which is not only easy and fast, but also cost-saving.

3.There are a lot of add-on devices can be attached to this production line, such as Auto Biscuits Feeder, Auto Wafer Feeder, Auto Sprinkler,etc. Customers can choose these add-on devices accordingly and add or change the add-on devices for new product whenever needed.

4.There are single depositor,double depositor or more to meet different product production need.

5.The mobile depositor enables the mobile mould-follow-depositing function, which greatly increase the output of the production line by 20%.

6.With plastic guide-rail protection, the chain will not contact with spilled chocolate,which meets the overall food hygiene requirements.

There are many other add-on devices,such as auto mould loader,sprinkler,biscuit feeder,Conche, tempering machine,decorating machine and many more. You can add whatever part you need to make it a full automatic production line and produce different kinds of products.

Hot Sale

Main category

Company INFO

Founded in 2009, Chengdu LST has professional R&D team and specialized equipment, specializes in manufacturing middle-high class of chocolate equipment, such as chocolate molding Machines, chocolate coating machines, chocolate enrobing machines, chocolate & grain mixture moulding machine, ball mill, etc.

Our chocolate equipment have been popular in the food industry. At the same time, the products produced by our equipment are also in the forefront of the candy industry as well. Besides the domestic market, our equipment have been widely sold to Germany, India,Vietnam, South Korea, Canada, Australia, Russia, Ecuador, Malaysia, Romania Israel,Peru and many other countries in the world.

We provide OEM service. At the same time, life-time after-sales service for our equipment are provided to world wide customer and we are looking forward to your visit.

Our Services

Pre-sale Services
1. We’ll guide you to choose the most suitable machines for your project.
2. When sign contract, we will notify the power supply voltage and frequency.
3. Strict with complete testing and well adjustment according to customers’ requirement before shipment.

After-sale Service
1. Technical service provided.
2. Installation and On-site training service provided. Debugger only debug and train 2 kinds of products. Extra charge apply for extra products.Technicians’ installation and commissioning charges include round-way tickets, inland traffic, lodging and boarding fee are on the Buyer’s account. A service charges of USD 60.00/day per technician applies.

3. One year warranty for standard operation. Life-time technical support provided.
Service charge applies for incorrect operation or artificial damage.

Delivery Clause
1. The Equipment will be collected from the Seller’s factory by Buyer, or will be delivered by Seller on agreed terms.
2. Leading time is usually 30-60 working days.
