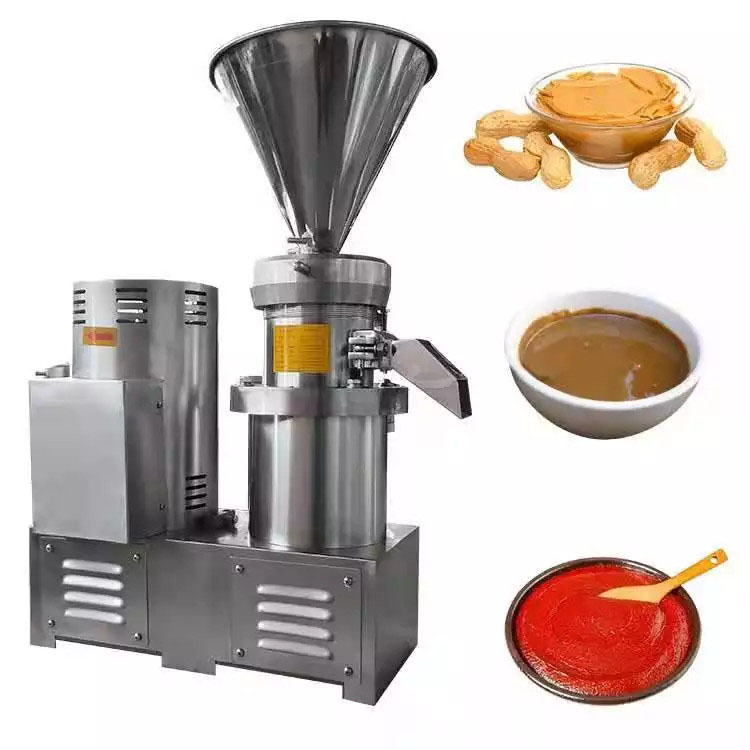

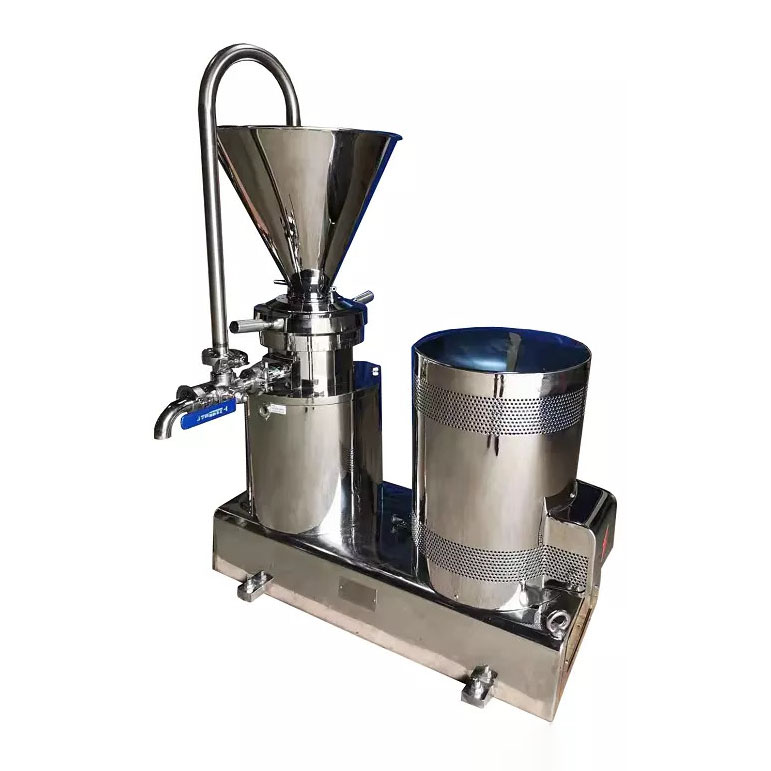

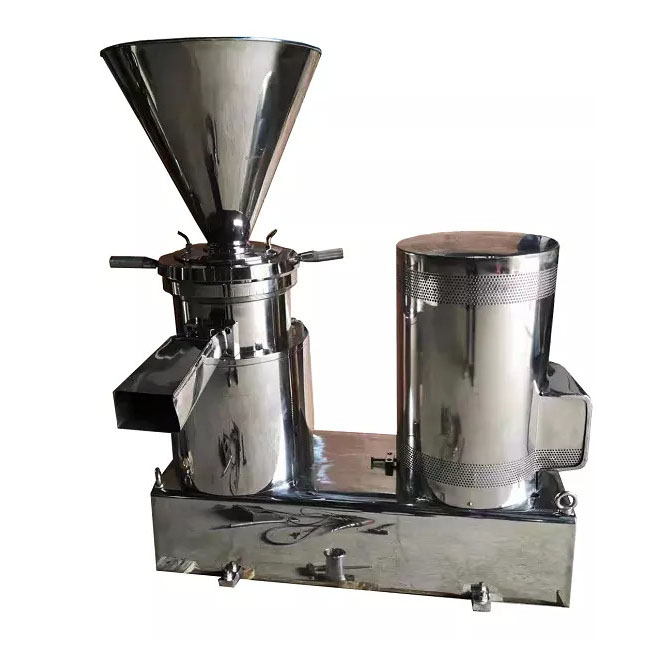

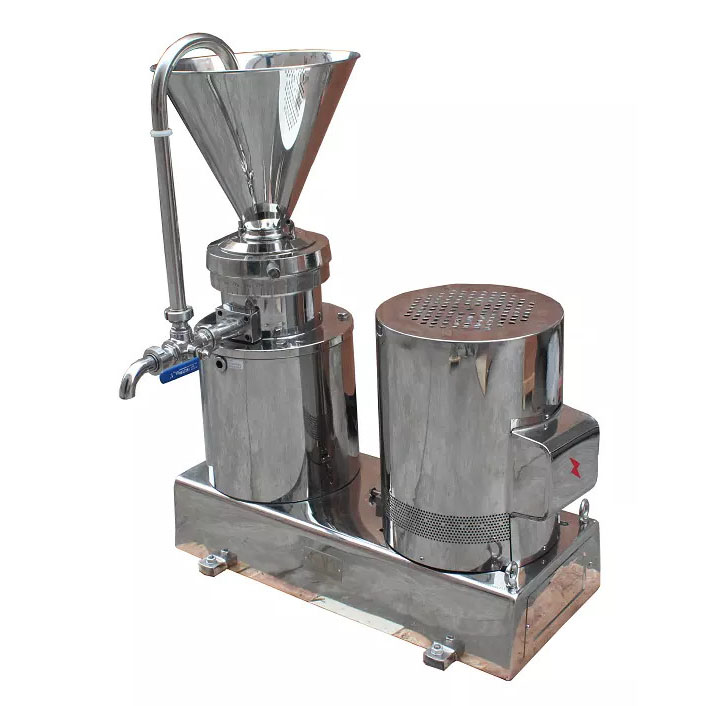

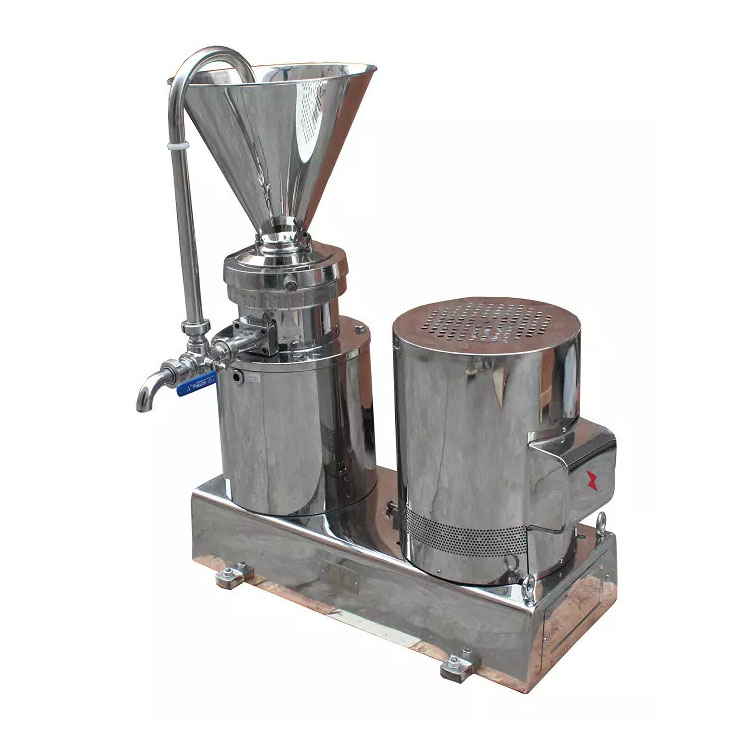

chocolate mass colloid mill peanut butter grinding machine

Short Description:

It is mainly used for superfine pulverization of wet materials in food, pharmaceutical, chemical and other industries. It can crush, emulsify, homogenize and mix various semi-fluid and milky substances.


  • Item No: LST-CM
  • Capacity: 150-500kg/h
  • Dimensions: 680×380×880mm
  • Certification: CE
  • Customization: for 1 set
  • EXW Price: /
  • Product Detail

    Product Tags


    ●Product Introduction


    Through the relative movement of different geometric shapes of rotor grinding teeth and stator grinding teeth under high-speed rotation the processed materials are subjected to strong shearing under the action of self-gravity, centrifugal force and other compound forces through the adjustable annular gap. Force, friction and high-frequency vibration to achieve the purpose of dispersion crushing, emulsification, homogenization and mixing.


    Application


    application
    application
    application

    Parameter


    Model Fineness Productivity Motor Power Motor Speed Dimension(cm)
    JMS-85 2-50 um 80--300kg/h 5.5 kw 2930 r/min 68x38x88
    JMS-130 2-50 um 150--500kg/h 11kw Adjustable 99x44x110
    JMS-130 2-100um 150--500kg/h 18.5 kw Adjustable 99x44x110
    JMS-180 2-50 um 250--1000kg/h 18.5kw Adjustable 100x50x120
    JMS-260 2-50 um   37 kw Adjustable 133x65x135

    Samples


    samples
    samples
