China Chengdu mini automatic dragee coating pan machine

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Condition:
New
Place of Origin:
Sichuan, China
Brand Name:
LST
Voltage:
220V
Power(W):
100/4500
Weight:
95/280
Dimension(L*W*H):
530*630*850mm/1200*1250*1630mm
Certification:
CE Certificate
Warranty:
1 Year
Product name:
dragee coating pan machine
Usage:
chocolate sugar
Matched machine:
chocolate making machine
Function:
coating ,polishing ,spraying chocolate food
Capacity:
as your requirements
Material:
304 Stainless Steel
Refrigerant:
matched with coating pan
Type:
auto machine
Color:
SS color
Service:
all supports
Application:
CANDY
After-sales Service Provided:
Engineers available to service machinery overseas

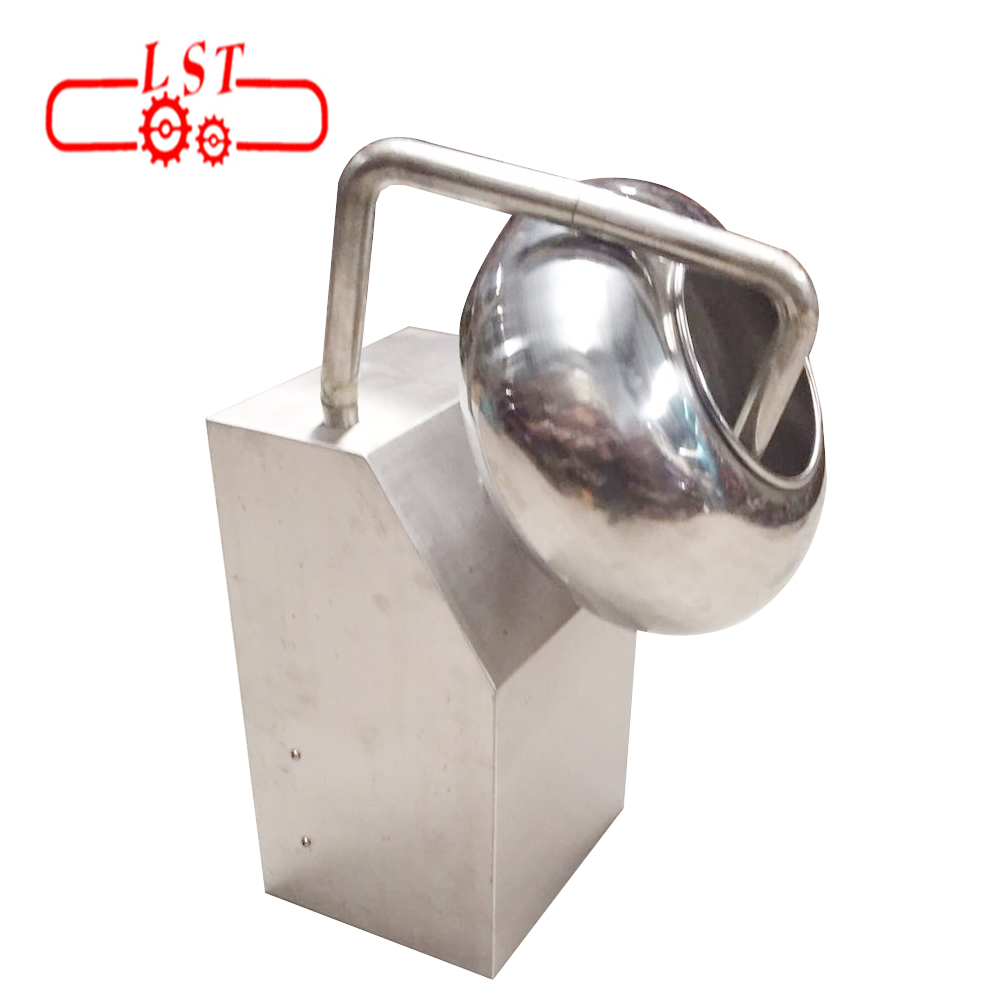

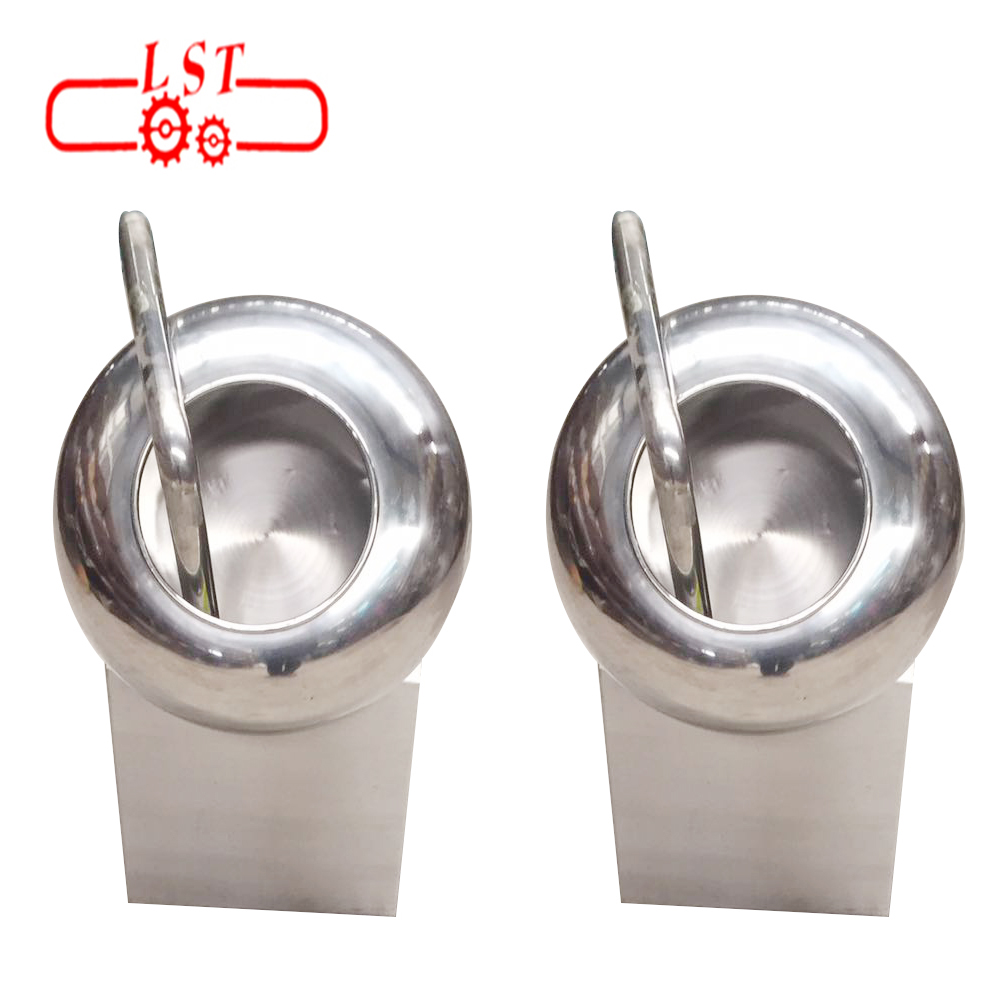

product display

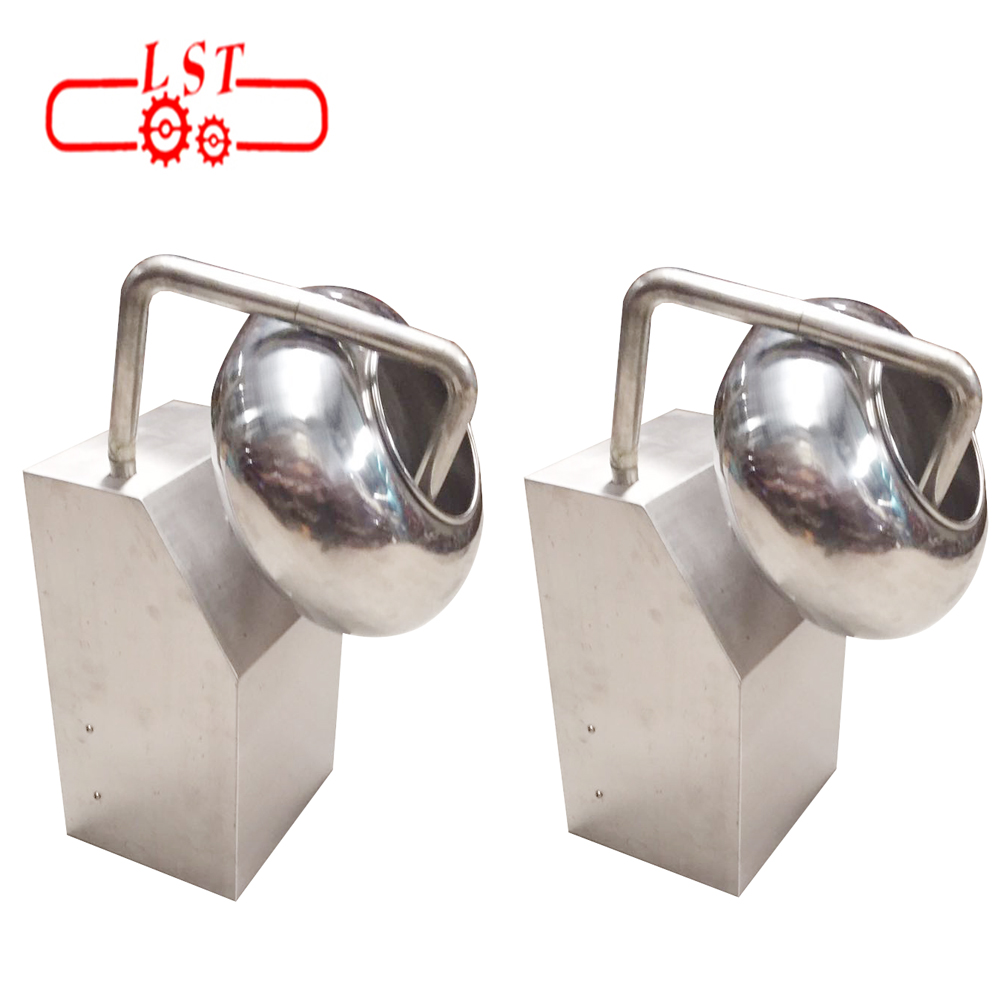

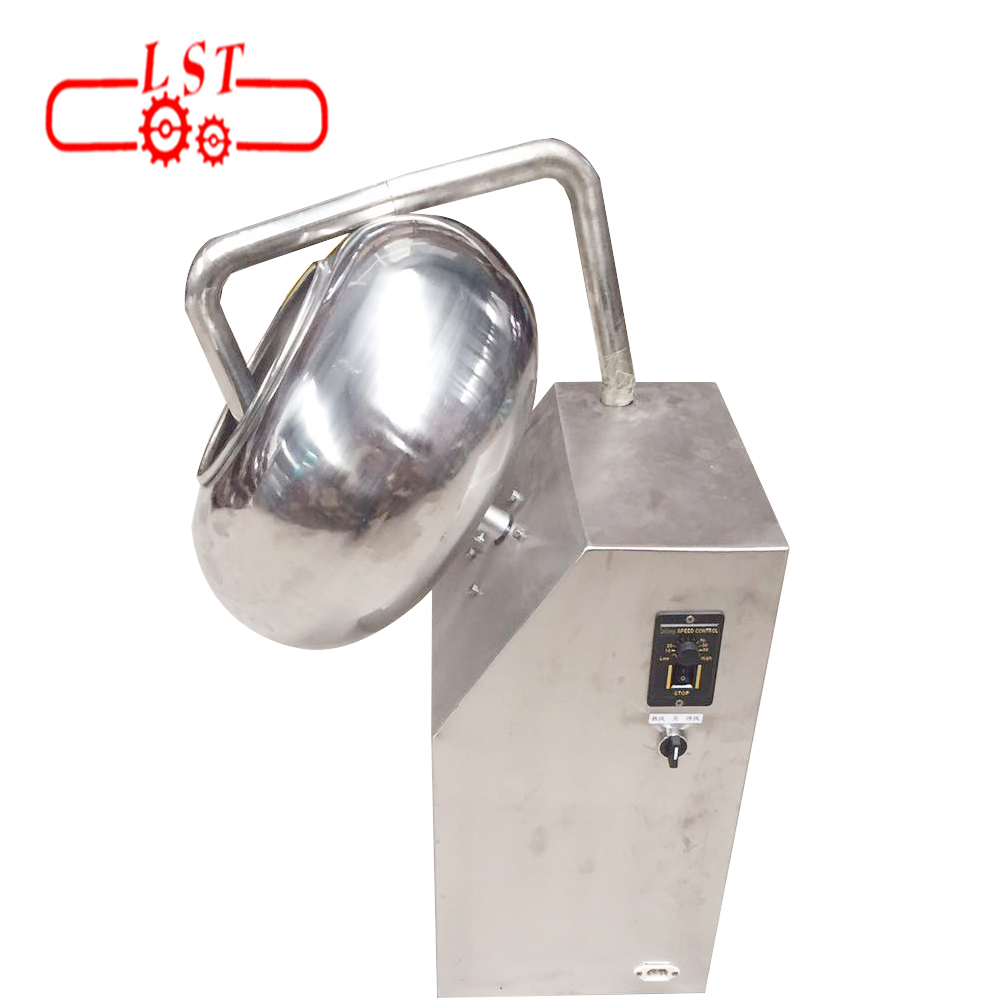

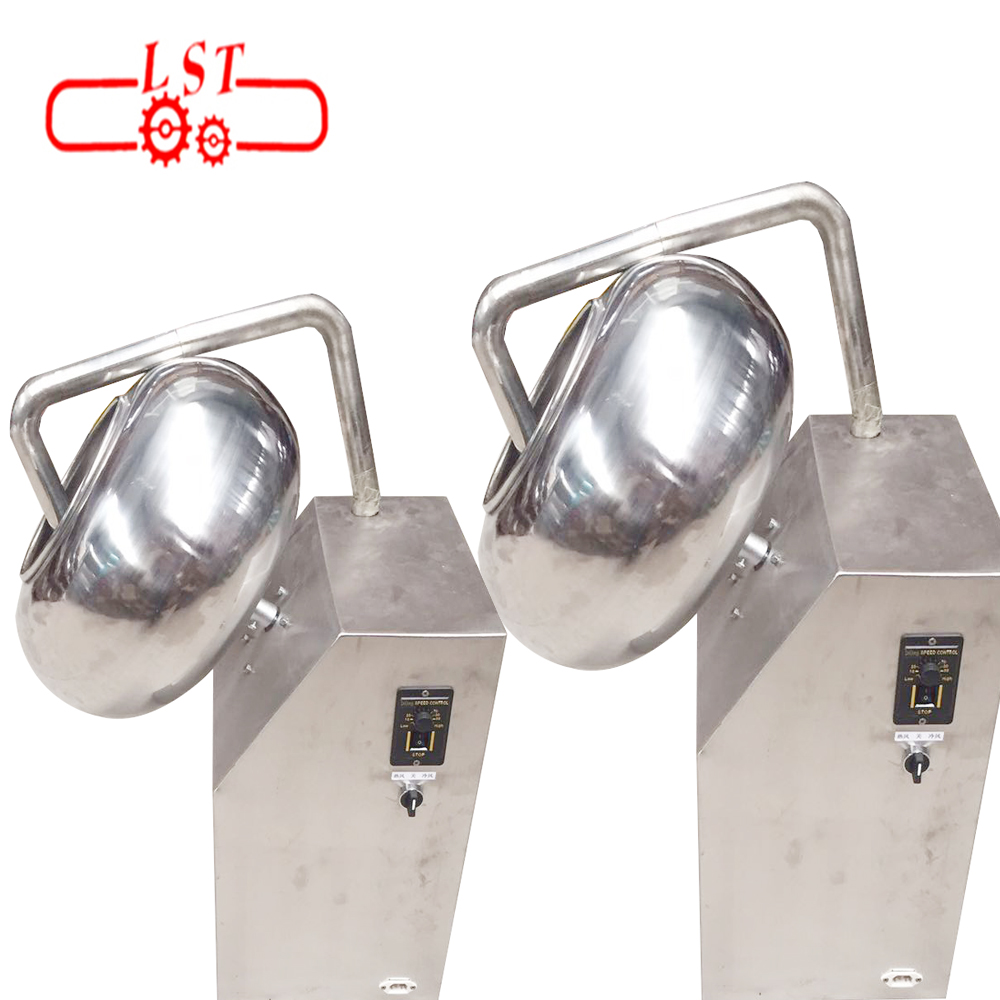

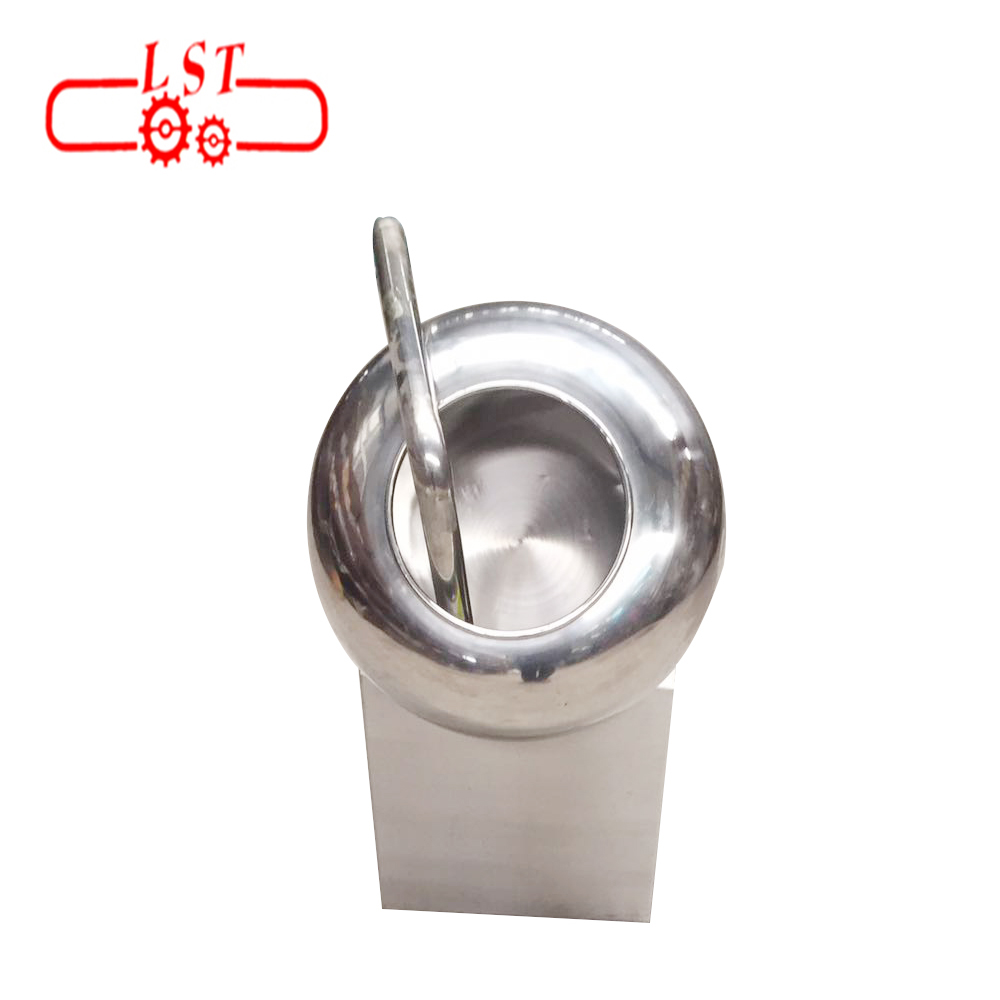

China Chengdu mini automatic dragee coating pan machine

1.Main Performance and Structural Features

This machine is used for sugarcoat tablets and pills for pharmaceutical and food industries.It also can be used for roll-fry beans,nuts or seeds.The leaning angle is adjustable, and electrical stove or gas stove can be placed underneath as heating device.

Attached device include:

a.Single electrothermal blower, the wind outlet pipe(adjustable wind volume) can be put into the pot as heating or cooling.

b.Heat(temperature) can be adjusted.

c.Speed-adjustable motor


2.Scope of Application

This machine can be used for polishing chocolates with various shapes,such as round, oblate, oval,sunflower seed shaped,cylindrical etc, making it glossy,and shining with lustre on the surface. Moreover, chocolates shall look more delicate after being polished.The cylindrical chocolates are usually wrapped by multi-colored aluminum foil,the wrapping paper fits better with the chocolate after being polished,the geometrical structure becomes clearer. This polishing pot also applies for enrobing nubbly products such as flour-coated peanuts, hard/soft candies,bubble gums,pills,etc.

3.Main Technical Parameters

Name

PGJ-400A

PGJ-600A

PGJ-800A

PGJ-1000A

PGJ-1250A

PGJ-1500

Pot Diameter

400

600

800

1000

1250

1500

Rotating Speed

32

32

28

28

28

28

Main Motor Power

0.55

0.75

1.1

1.5

3

5.5

Blower Power

60

60

250

250

250

250

Heating wire power

1

1

2

2

3

6

Productivity

6kg/batch

15kg/batch

30-50kg/batch

50-70kg/batch

70-120kg/batch

100-200kg/batch

Dimension

600*550*880

700×700×1100

925*900*1500

1100*1100*1600

1200*1250*1800

1200*1500*2000

Net Weight

80

120

230

250

300

350

Company INFO


China Chengdu mini automatic dragee coating pan machine

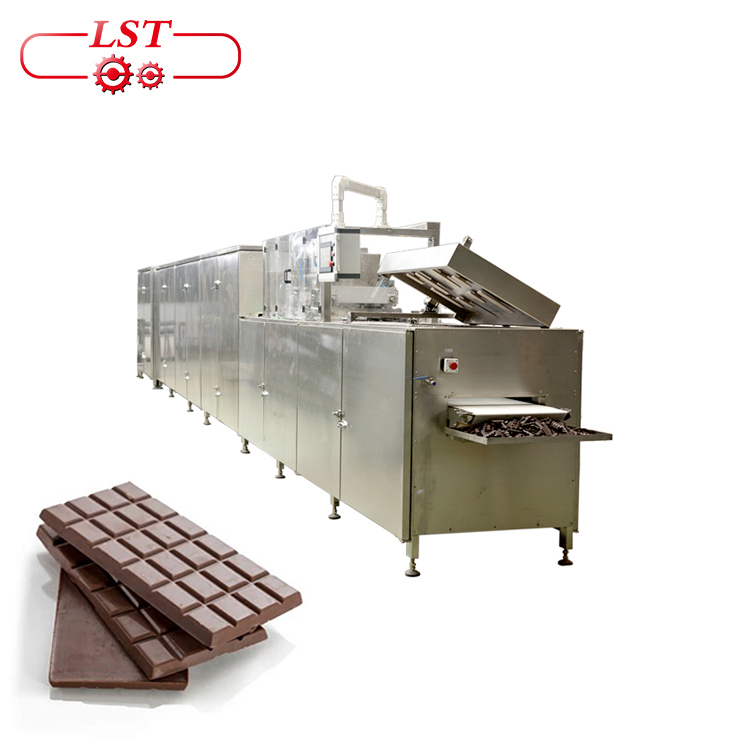

Founded in 2009, Chengdu LST has professional R&D team and specialized equipment, specializes in manufacturing middle-high class of chocolate equipment, such as chocolate molding Machines, chocolate coating machines, chocolate enrobing machines, chocolate & grain mixture moulding machine, ball mill, etc.
