Automatic chocolate glaze dragee machine chocolate candy coating pan

Short Description:

Send email to us Download as PDF

Product Detail

Product Tags

Overview

Quick Details

Condition:: New, New

Applicable Industries:: Food & Beverage Factory

After Warranty Service:: Video technical support, Online support

Local Service Location:: None

Showroom Location:: None

Brand Name:: LST

Place of Origin:: Sichuan, China

Voltage:: 220V

Power(W):: 100/4500

Dimension(L*W*H):: 530*630*850mm/1200*1250*1630mm

Weight:: 95/280

Certification:: CE Certificate

Warranty:: 1 year

After-sales Service Provided:: Field installation, commissioning and training, Engineers available to service machinery overseas

Application fields:: Snack food factory

Machinery Function:: coating

Raw material:: Corn, Nuts, chocolate

Output product name:: chocolate

Key Selling Points:: Multifunctional

Application:: CANDY

Material:: 304 Stainless Steel

Usage:: chocolate sugar

MOQ:: 1 Set/sets

Keywords:: chocolate coating pan

Type:: Semi-automatic

Operation:: Easily

LOGO:: Customer's

Automatic chocolate glaze dragee machine chocolate candy coating pan

product display

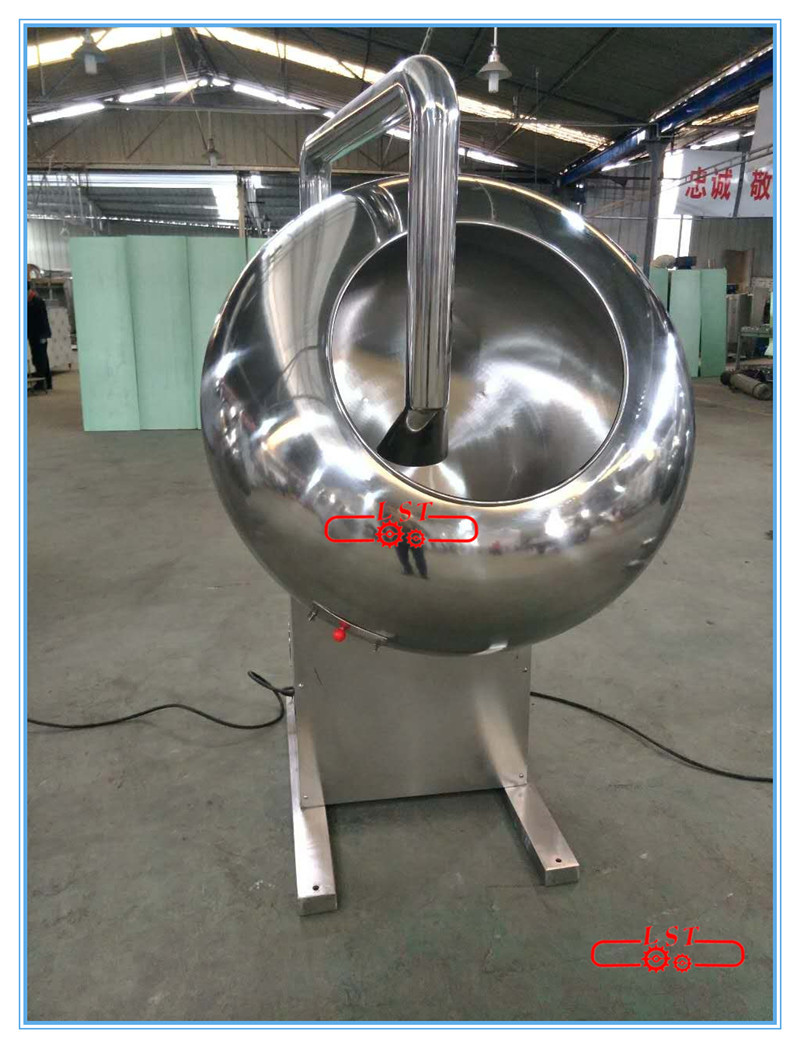

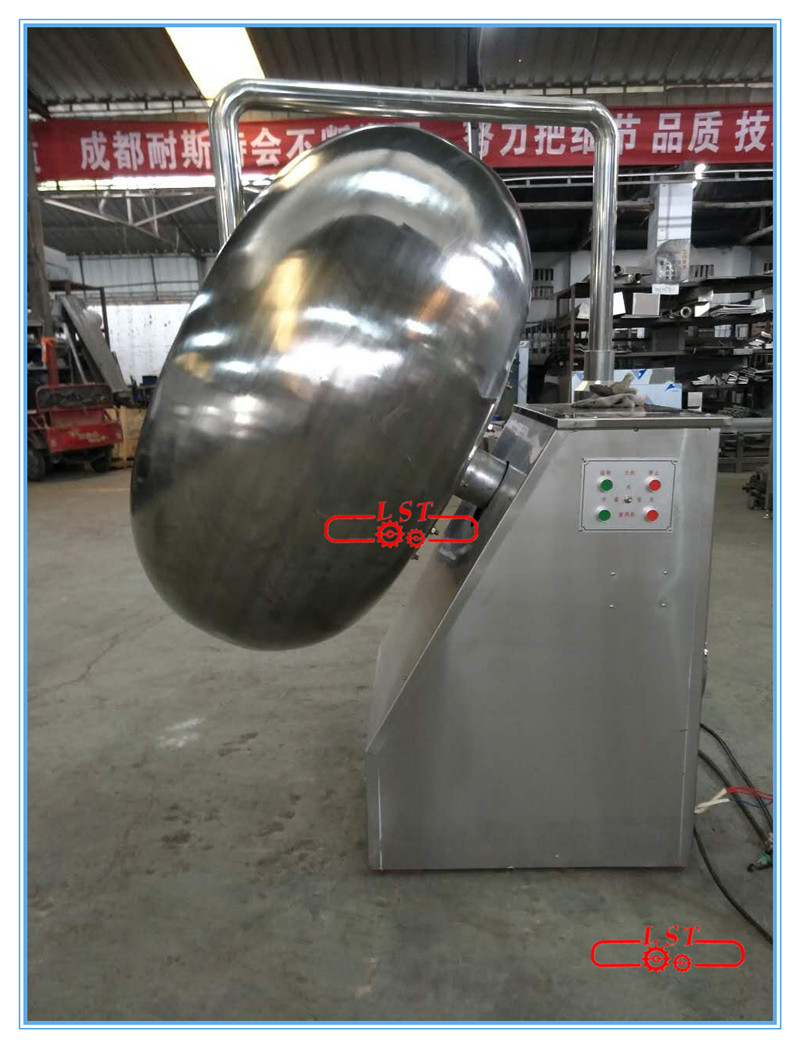

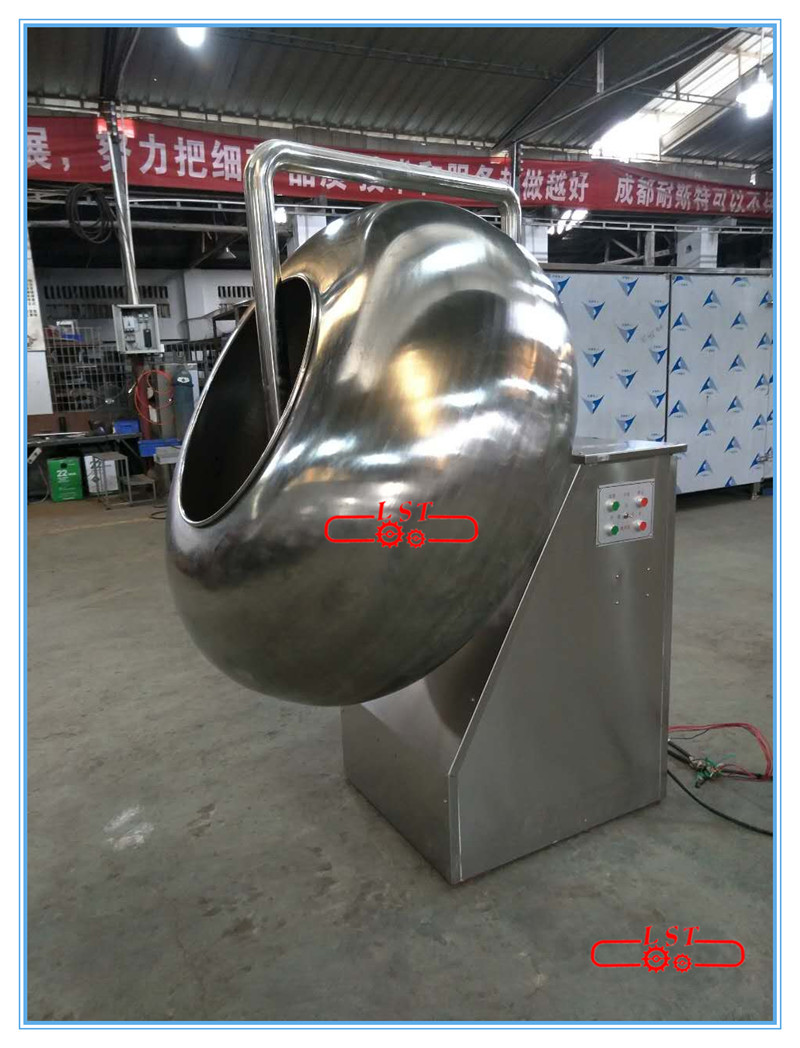

1.Main Performance and Structural Features:

This machine is used for sugarcoat tablets and pills for pharmaceutical and food industries.It also can be used for roll-fry beans,nuts or seeds.The leaning angle is adjustable, and electrical stove or gas stove can be placed underneath as heating device.

Attached device include:

a.Single electrothermal blower, the wind outlet pipe(adjustable wind volume) can be put into the pot as heating or cooling.

b.Heat(temperature) can be adjusted.

c.Speed-adjustable motor

2.Scope of Application:

This machine can be used for polishing chocolates with various shapes,such as round, oblate, oval,sunflower seed shaped,cylindrical etc, making it glossy,and shining with lustre on the surface. Moreover, chocolates shall look more delicate after being polished.The cylindrical chocolates are usually wrapped by multi-colored aluminum foil,the wrapping paper fits better with the chocolate after being polished,the geometrical structure becomes clearer. This polishing pot also applies for enrobing nubbly products such as flour-coated peanuts, hard/soft candies,bubble gums,pills,etc.

3.Main Technical Parameters

Name	PGJ-400A	PGJ-600A	PGJ-800A	PGJ-1000A	PGJ-1250A	PGJ-1500
Pot Diameter	400	600	800	1000	1250	1500
Rotating Speed	32	32	28	28	28	28
Main Motor Power	0.55	0.75	1.1	1.5	3	5.5
Blower Power	60	60	250	250	250	250
Heating wire power	1	1	2	2	3	6
Productivity	6kg/batch	15kg/batch	30-50kg/batch	50-70kg/batch	70-120kg/batch	100-200kg/batch
Dimension	600550880	700×700×1100	9259001500	110011001600	120012501800	120015002000
Net Weight	80	120	230	250	300	350

HOT SALE

Main category

Company INFO

Founded in 2009, Chengdu LST has professional R&D team and specialized equipment, specializes in manufacturing middle-high class of chocolate equipment, such as chocolate molding Machines, chocolate coating machines, chocolate enrobing machines, chocolate & grain mixture moulding machine, ball mill, etc.

Our chocolate equipment have been popular in the food industry. At the same time, the products produced by our equipment are also in the forefront of the candy industry as well. Besides the domestic market, our equipment have been widely sold to Germany, India,Vietnam, South Korea, Canada, Australia, Russia, Ecuador, Malaysia, Romania Israel,Peru and many other countries in the world.

We provide OEM service. At the same time, life-time after-sales service for our equipment are provided to world wide customer and we are looking forward to your visit.

Our Services

Pre-sale Services
1. We’ll guide you to choose the most suitable machines for your project.
2. When sign contract, we will notify the power supply voltage and frequency.
3. Strict with complete testing and well adjustment according to customers’ requirement before shipment.

After-sale Service
1. Technical service provided.
2. Installation and On-site training service provided. Debugger only debug and train 2 kinds of products. Extra charge apply for extra products.Technicians’ installation and commissioning charges include round-way tickets, inland traffic, lodging and boarding fee are on the Buyer’s account. A service charges of USD 60.00/day per technician applies.

3. One year warranty for standard operation. Life-time technical support provided.
Service charge applies for incorrect operation or artificial damage.
