Auto chocolate cocoa ball mill 1 ton per hour manuafactures

Short Description:

Send email to us Download as PDF

Product Detail

Product Tags

Overview

Quick Details

Condition:: New, New

Applicable Industries:: Food & Beverage Factory

After Warranty Service:: Online support

Local Service Location:: None

Showroom Location:: None

Brand Name:: LST

Place of Origin:: Sichuan, China

Voltage:: 380V/50HZ/Three Phase

Power(W):: 55Kw

Dimension(L*W*H):: 6000*3500*2600mm

Weight:: 7000kg

Certification:: CE

Warranty:: 1 year

After-sales Service Provided:: Field installation, commissioning and training, Engineers available to service machinery overseas

Application fields:: Snack food factory

Machinery Function:: refine

Raw material:: chocolate, chocolate food

Output product name:: chocolate

Key Selling Points:: Low Noise Level

Application:: Chocolate

Product name:: chocolate ball mill

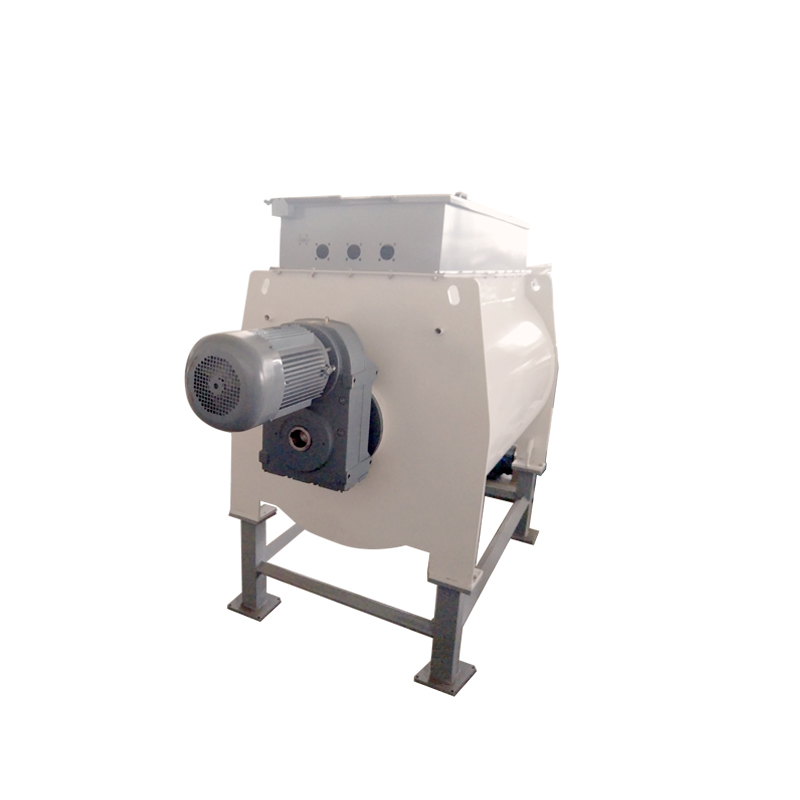

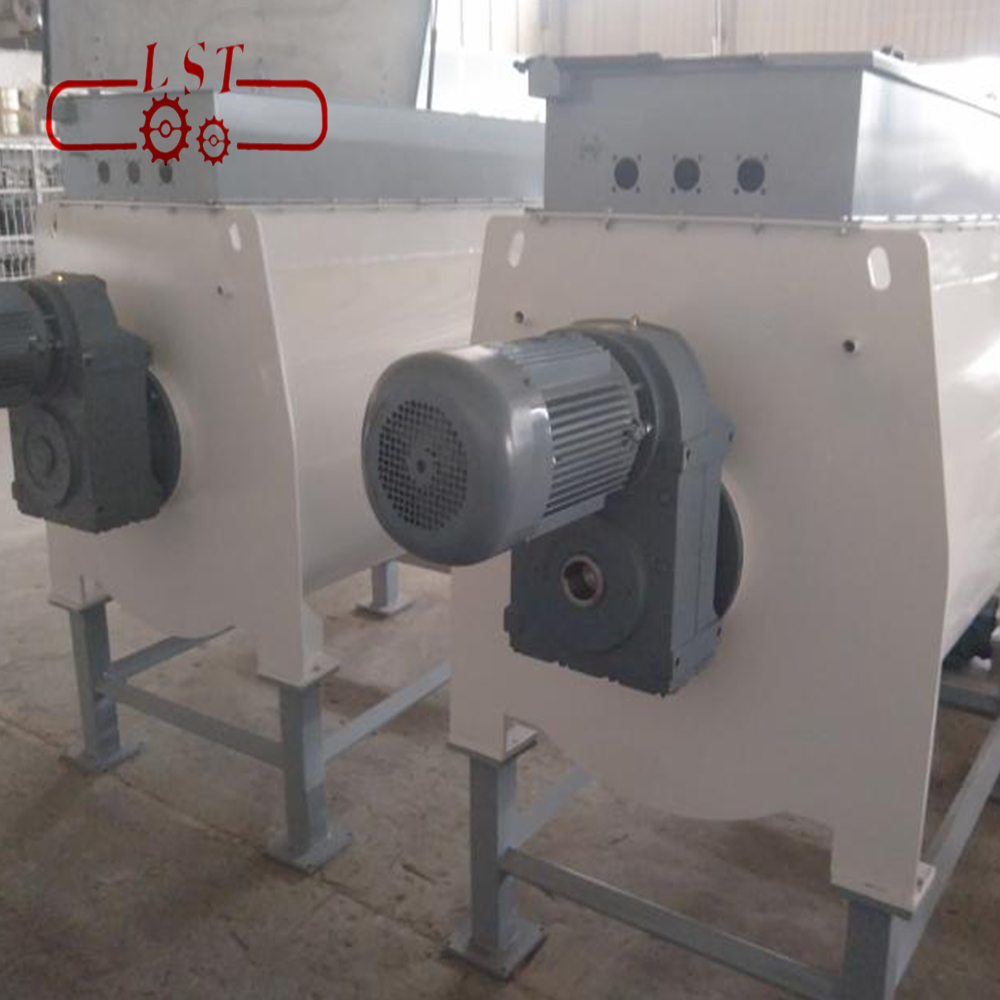

Matched machine:: chocolate mixing melting machine

Usage:: chocolate/candy/food milling refining

Feature:: Vertical type

Color:: as your requirements

Clients range:: Industrial range

Product Description

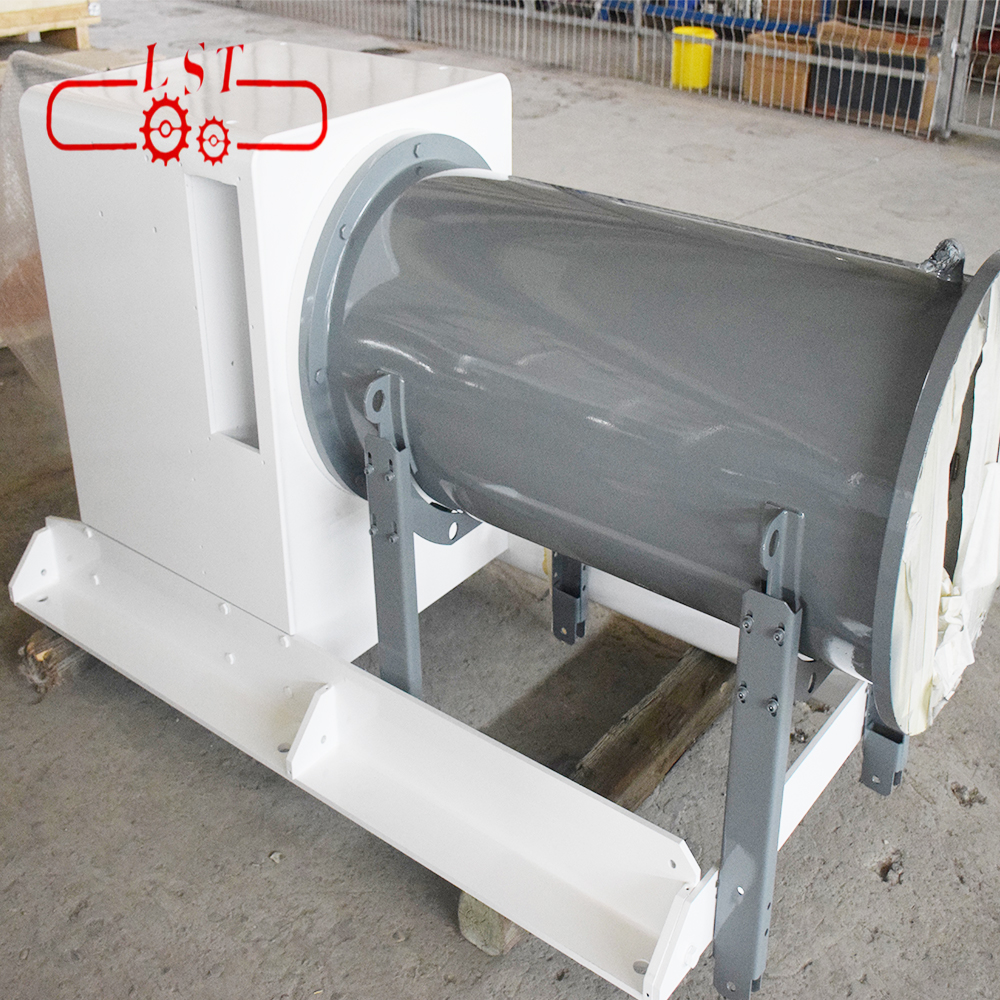

Auto chocolate cocoa ball mill 1 ton per hour manuafactures

Comparing with refiner, ball mill has been improved with the advantages of low energy consumption, high productivity, low noise, super low metal content, easy to clean, one-touch operation, etc. In this way, it has shortened 8-10 times of milling time and saved 4-6 times of energy consumption. With leading advanced technology and imported accessories with original packing, equipment performance and products’ quality is guaranteed.

LST500/1000 ball mill is jointly developed by a group of technical personnel from different companies and uses special components processed by Chengdu military-civilian enterprises. At the same time, it has adopted the advantages of many horizontal ball mill such as German BUHLER, Naichi, and Lehman, and also cold and hot water internal circulation automatic temperature control system. Delta PLC and Schneider low-voltage electrical appliances. All these makes this ball-mill fully meet the international advanced level.

Main Parameters

Name	Motor Power	PLC	Mixer	Grinding Time		Grinding Fineness	Water Chiller	Mixer Tank
			Tank					Capacity
				Sugar Powder	Granulated Sugar
LST-BM1000	37KW*2	DELTA	17.7kw	1-1.5h	1.5-2h	18~25μm	7HP	1000KG
Ball Mill
LST-BM500	30KW	5.5kw*2	600KG	1-1.5h	1.5-2h	18~25μm	5HP	67KW/h
Ball Mill

Working Process

Load raw material into Mixer tank→Melting and Mix→First Ball Mill→Transit Tank→Second Ball Mill→Strong Magnetic Strainer→Out
