Auto center filled small chocolate manufacturing machines

Short Description:

Send email to us Download as PDF

Product Detail

Product Tags

Overview

Quick Details

Condition:: New, New

Applicable Industries:: Food & Beverage Factory

After Warranty Service:: Online support

Local Service Location:: None

Showroom Location:: None

Brand Name:: LST

Place of Origin:: Sichuan, China

Voltage:: 380V/50HZ/Three Phase

Power(W):: 24Kw

Dimension(L*W*H):: 18000*1500*1900mm

Weight:: 4000kg

Certification:: CE

Application fields:: Snack food factory

Machinery Function:: depositing

Raw material:: Nuts, chocolate

Output product name:: Filled chocolate

Key Selling Points:: Automatic

Application:: Chocolate

After-sales Service Provided:: Engineers available to service machinery overseas

Product name:: chocolate manufacturing machines

Matched machine:: chocolate depositing machine

Usage:: chocolate/candy/food moulding/depositing

Capacity:: 6-12 moulds per min

Compressor:: 0.4Mpa

Feature:: 1D/2D/3D depositing

Color:: As your requirements

Warranty:: 1 year

Product Description

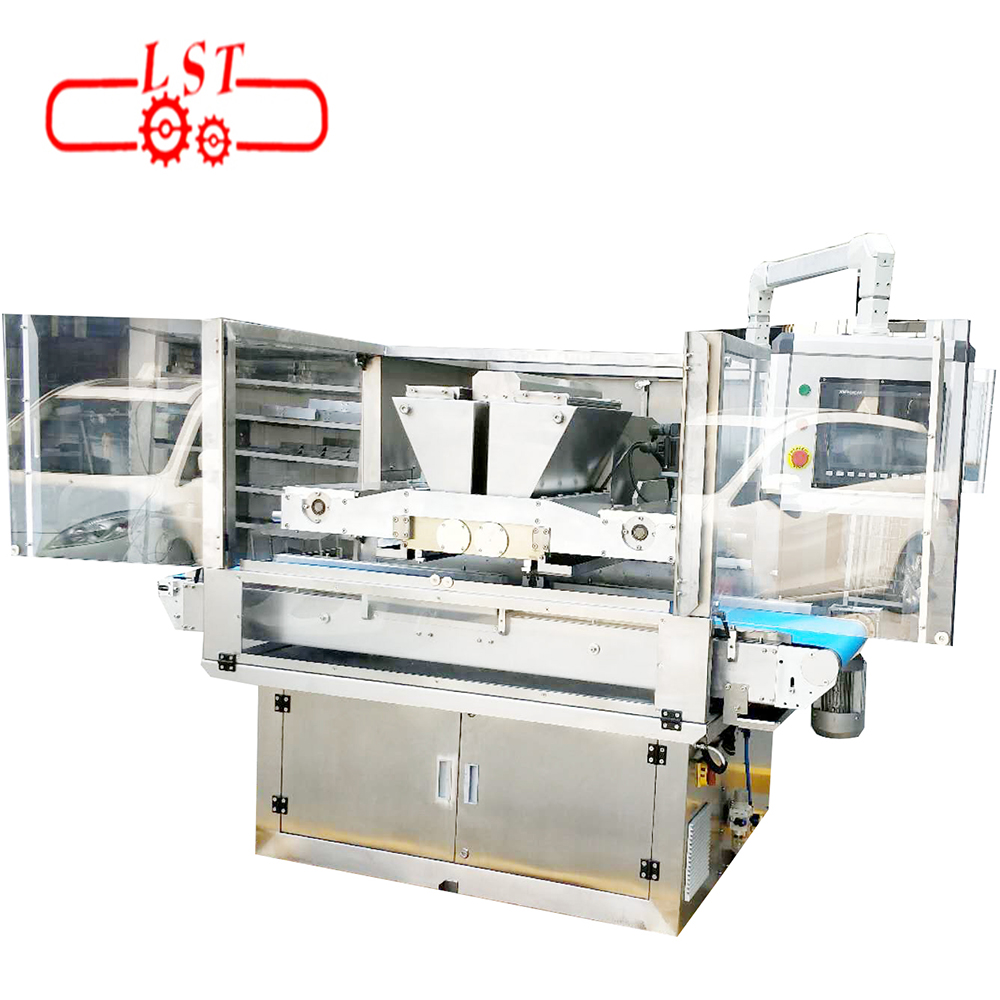

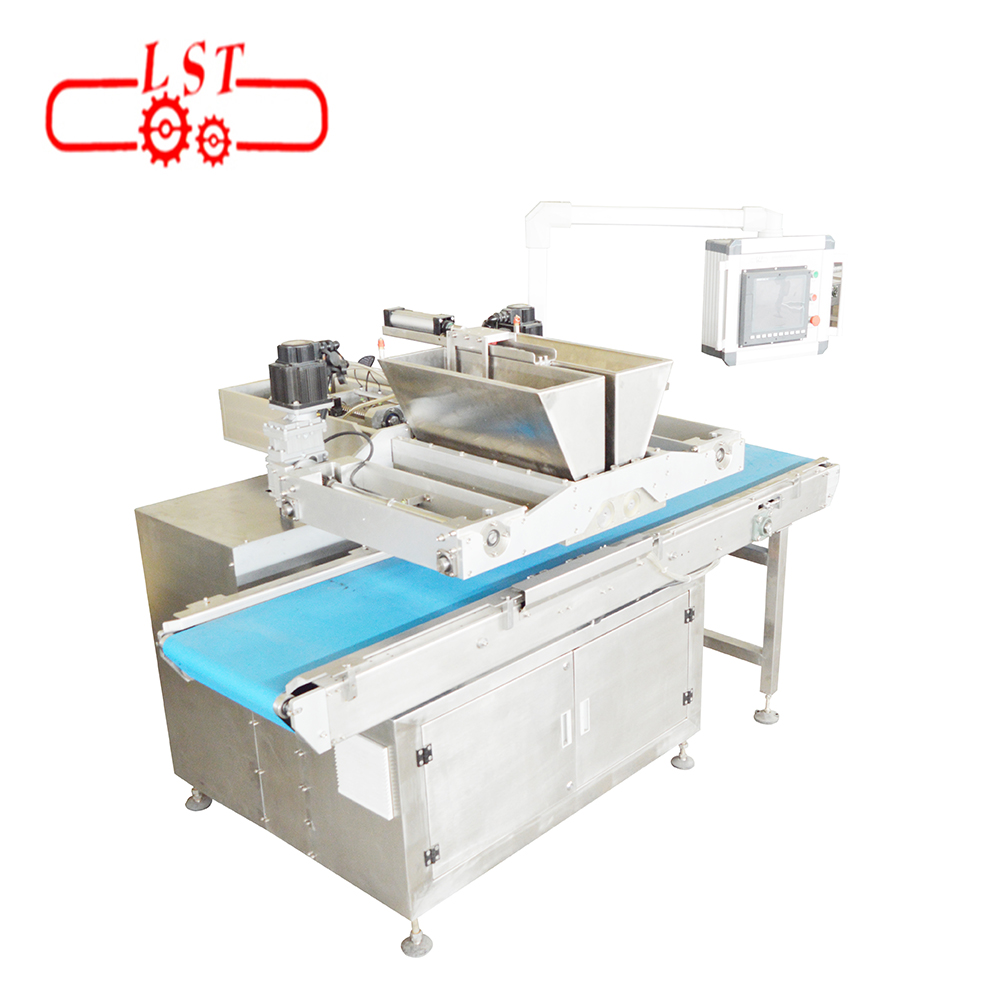

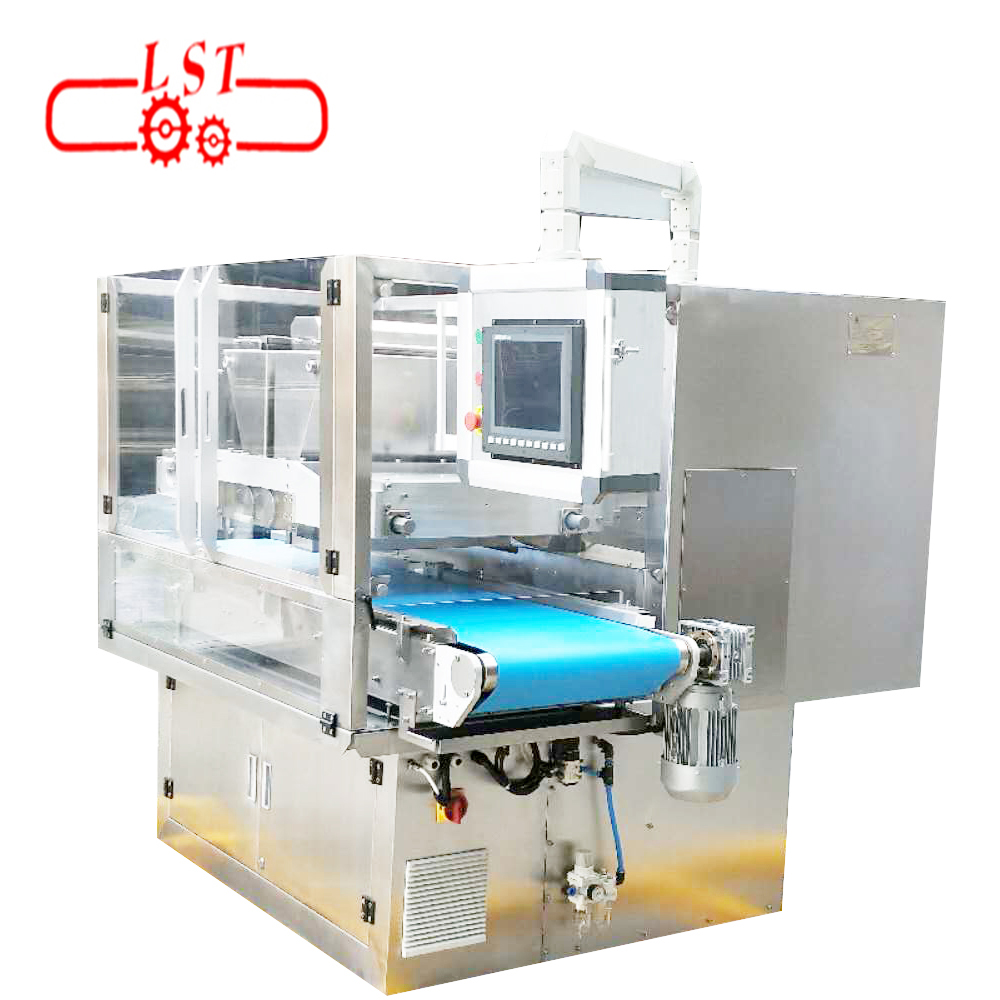

Auto center filled small chocolate manufacturing machines

Productivity	Nozzles	Power	Air supply	Power supply	Net Weight	Dimension
8-18 moulds/min	48/72/96*2	22kw	4MP	Customized	500kg	4900-1680-1800mm

Product Feature

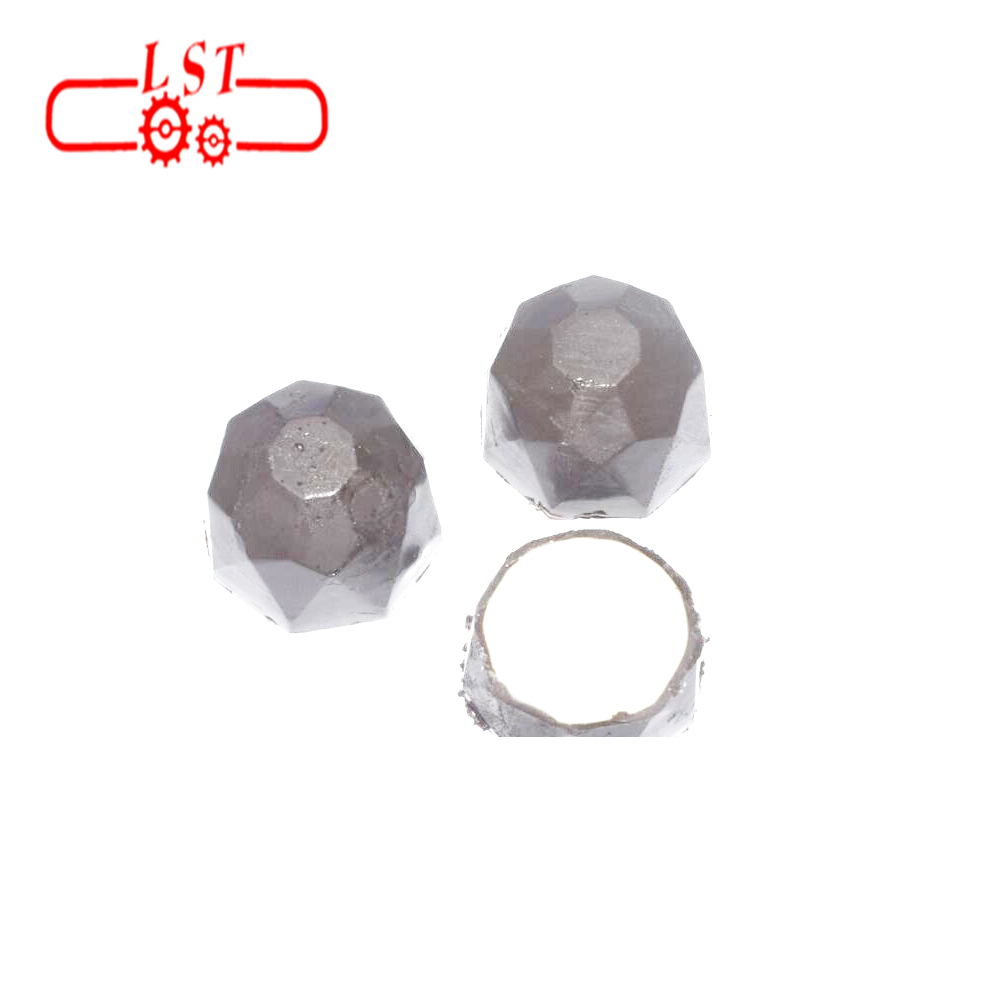

This Chocolate depositing line is a high tech full automatic chocolate machine for chocolate molding. The production process include mould heating, chocolate depositing, mould vibrating, mould conveying, cooling and demolding. This line has been widely applied in production of pure solid chocolate, center filled chocolate, double-colored chocolate, particle mixed chocolate, biscuit chocolate, etc.

The most special features of this line is the flexibilityas every parts of this line can be used as a separate part and combine with some other machine.

Features of new version

1.Depositor is with shell, these shell is not only for hygienic purpose, but also for safety protection.

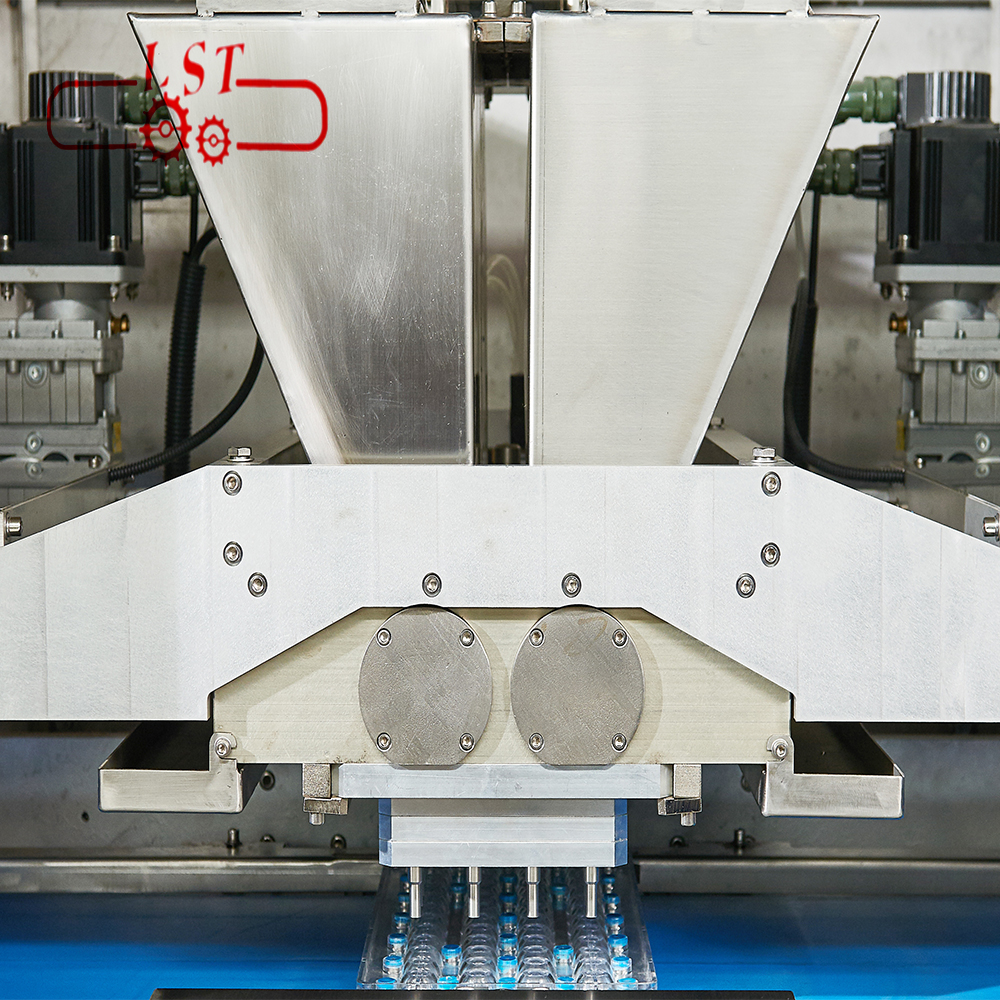

2.The depositing head is with completely new mechanism, which enables fast assemble and disassemble of the depositing head, depositing plate, etc. This design made it very fast and convenient for depositing plate change or depositor cleaning.

Difference between 2 D and 3D Depositor

2D one-shot depositor: One-shot depositor, single color, two colors, center filling, chocolate ball, center filled chocolate ball, etc.

3D one-shot decorating depositor: Has all the function of 2D one-shot depositor, specialized in decorating depositing function. Depositor is able to move to any direction necessary. It is even able to draw picture.

Production process

CMould heating-chocolate depositing-mould vibrating-mould conveying-chocolate cooling-mould vibrating
