400mm Real Chocolate Enrobing Line

Short Description:

400mm Real Chocolate Enrobing Line not only guarantees exceptional coating results but also maximizes efficiency and productivity. Its user-friendly interface ensures ease-of-use, while its robust construction ensures durability and longevity. Additionally, the compact design allows it to fit seamlessly into any production line, optimizing space utilization.

Item No: LST

Certification: CE

Customization: for 1 set

EXW Price: /

Send email to us Download as PDF

Product Detail

Product Tags

●Product Introduction

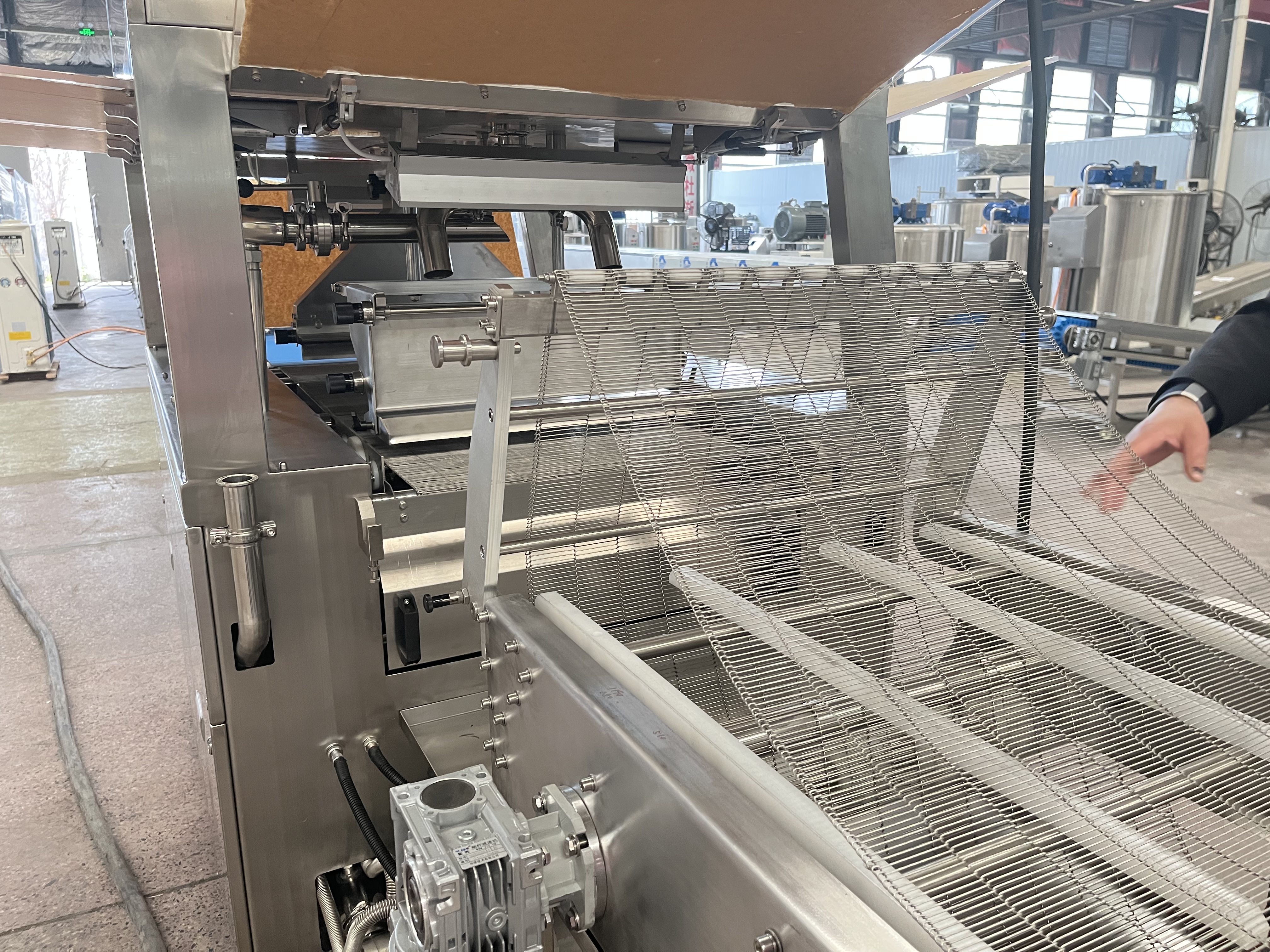

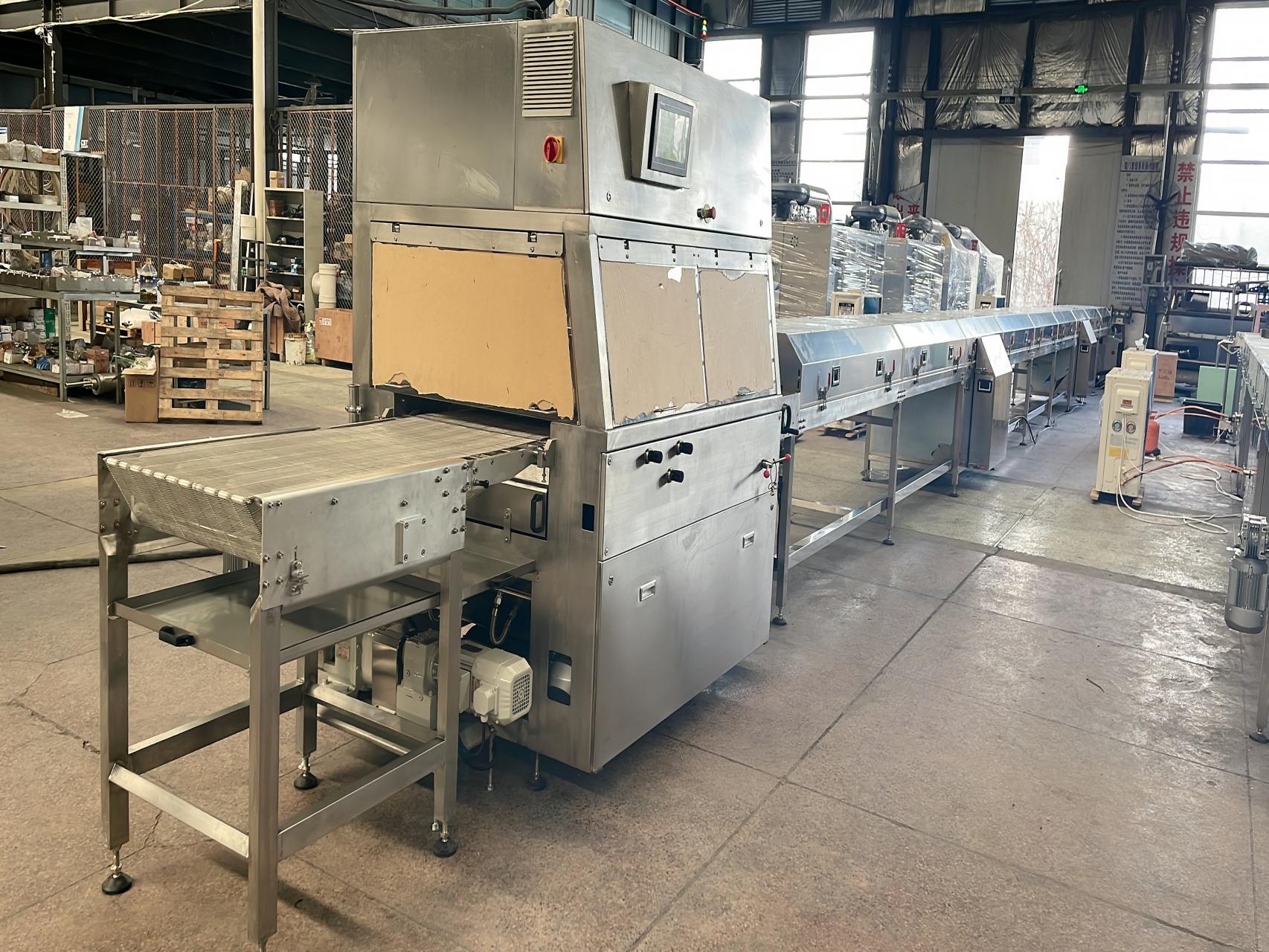

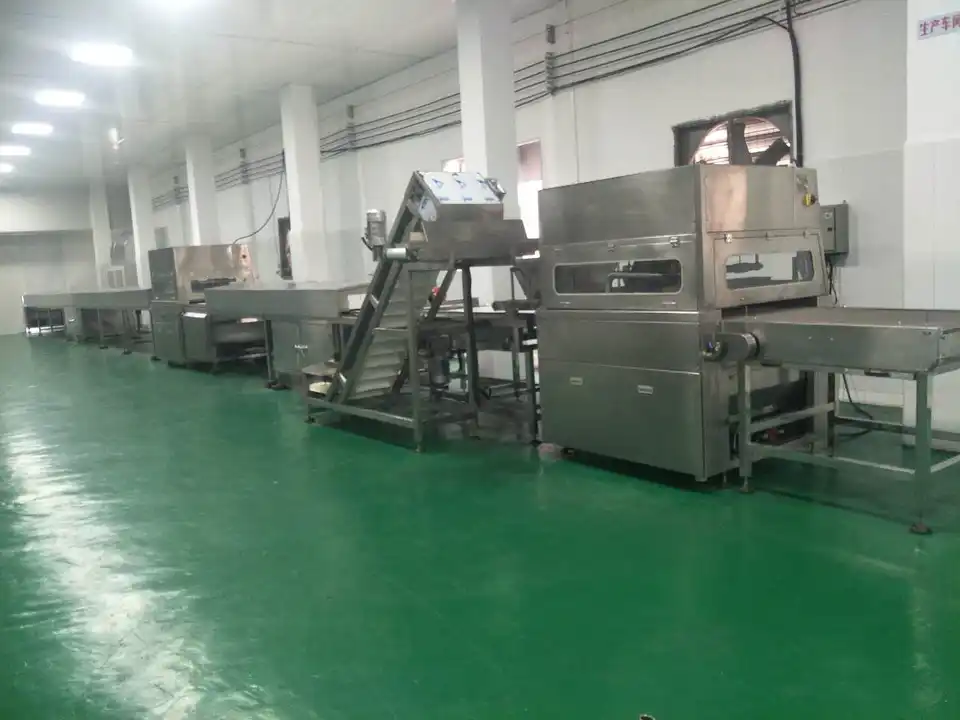

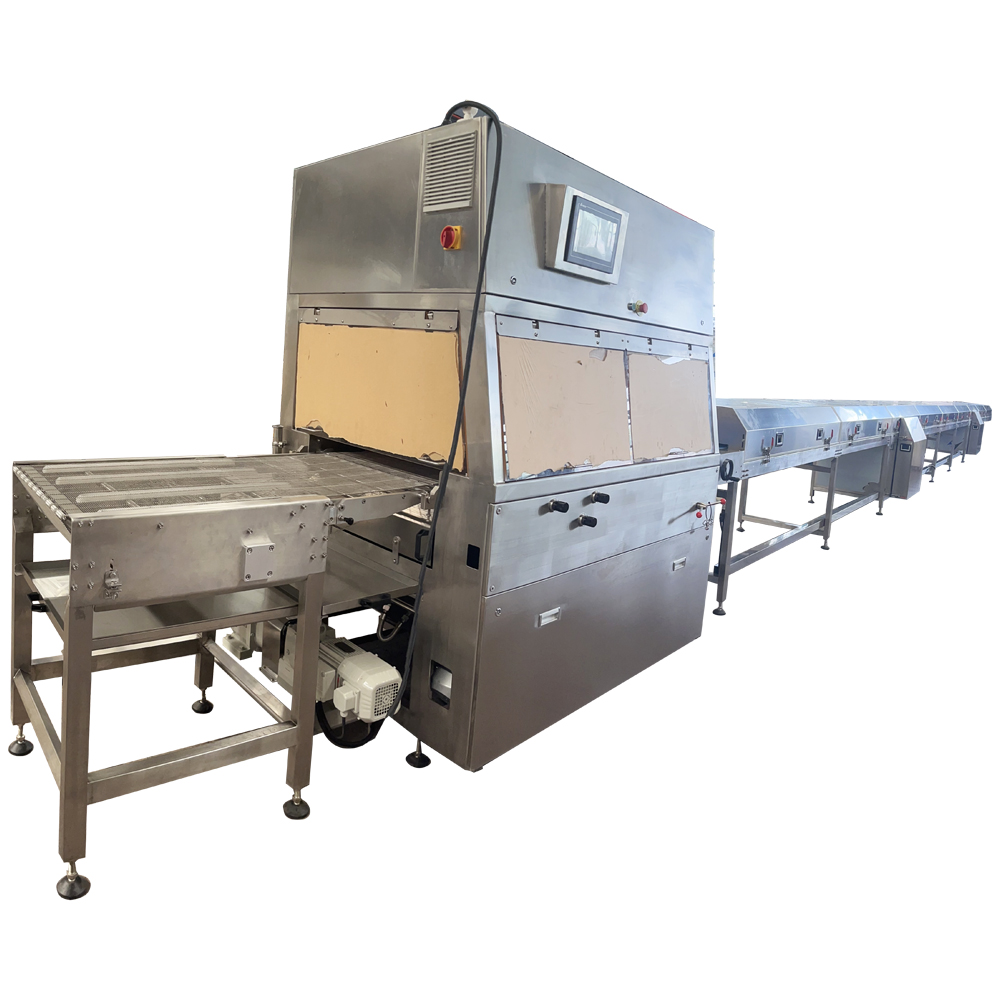

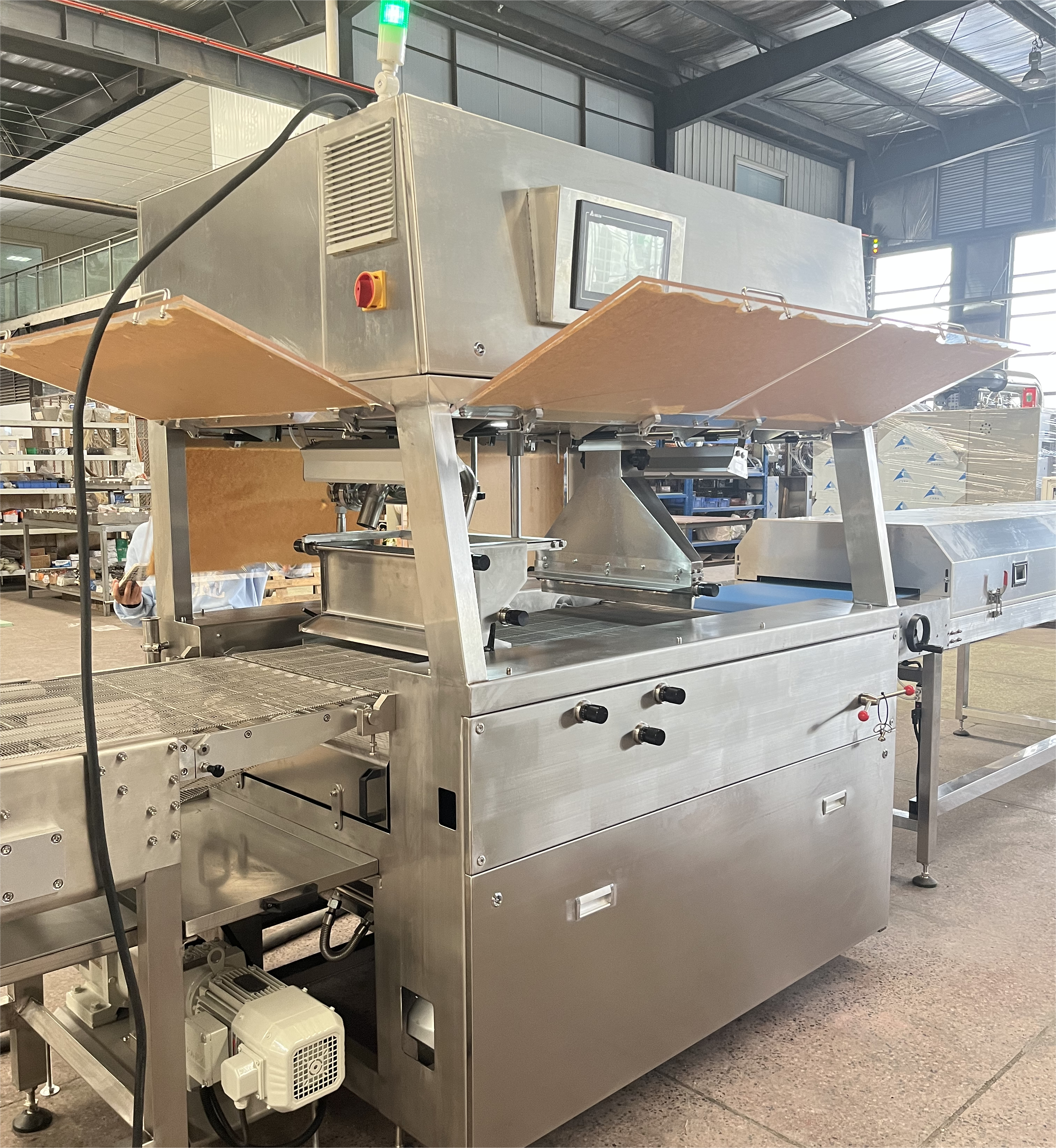

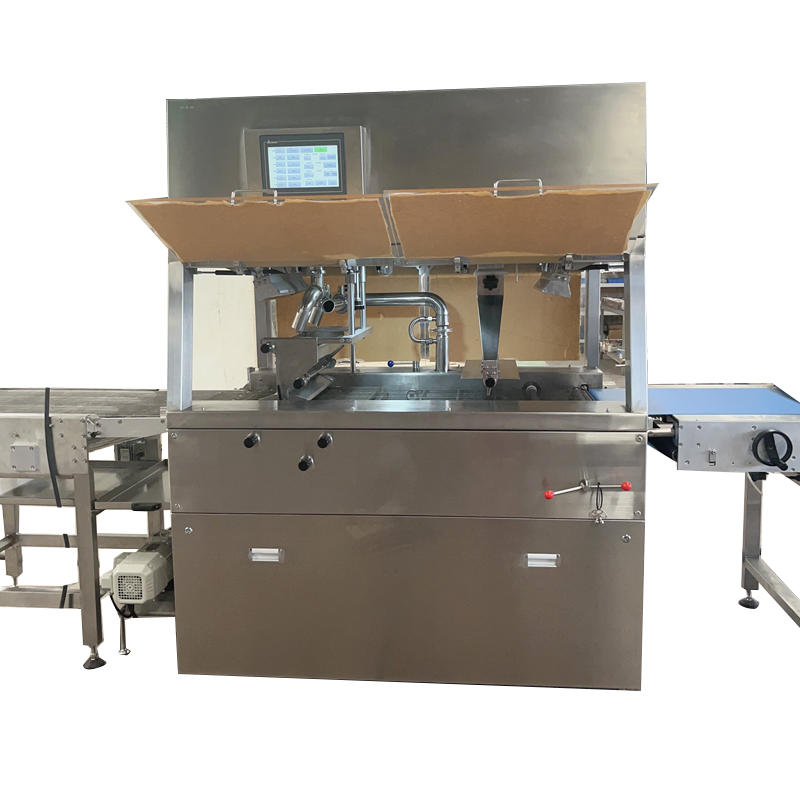

Chocolate Enrober

Such as candy,cake,biscuit,wafers,egg rolls,fruit and snacks etc.It can coat chocolate on all sides of food or coat chocolate on bottom-side for your option.

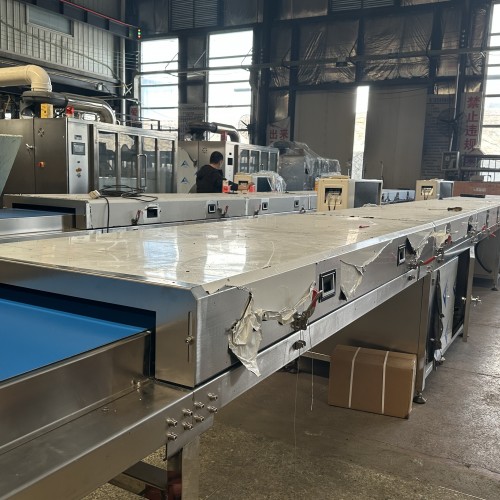

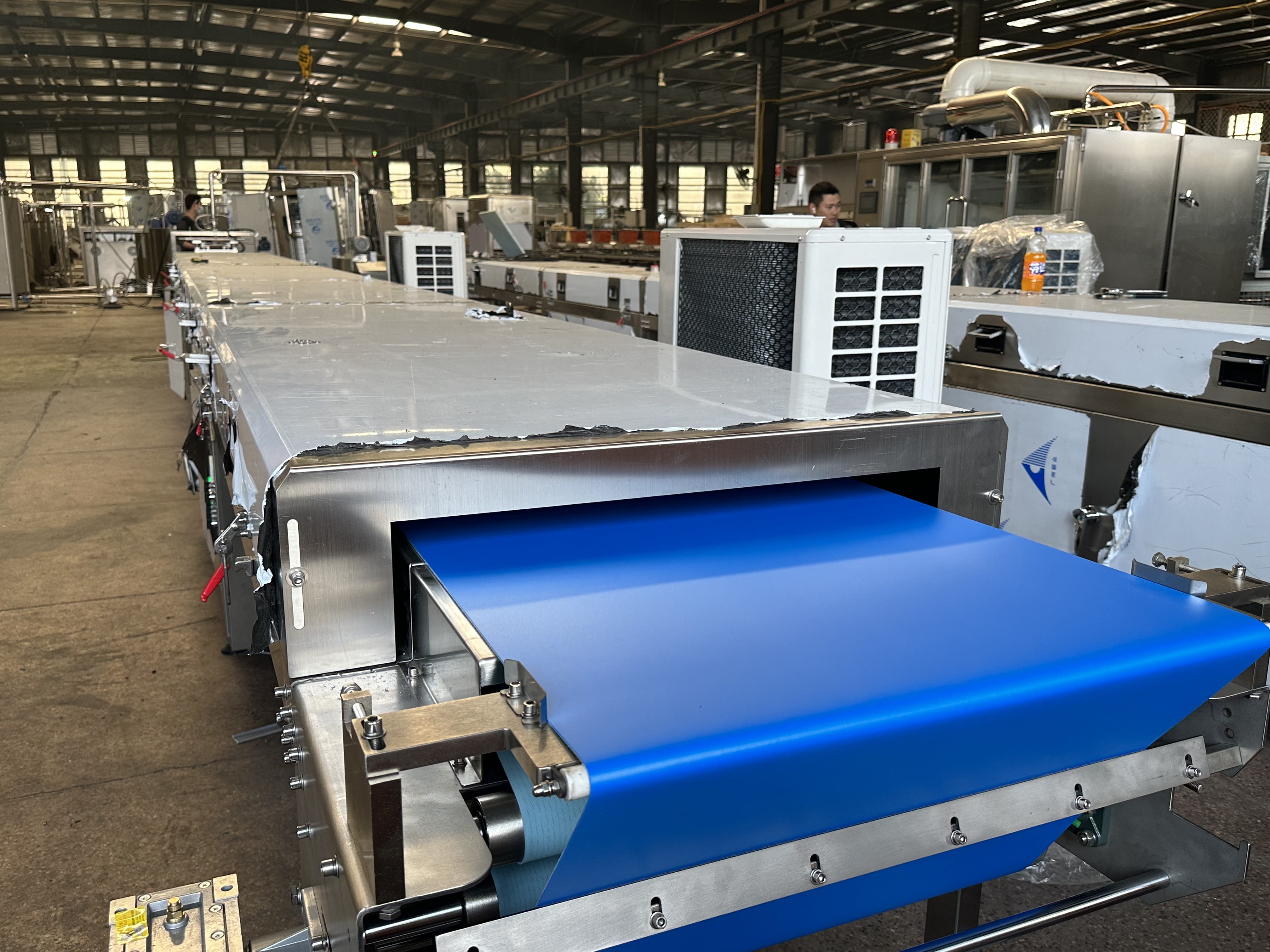

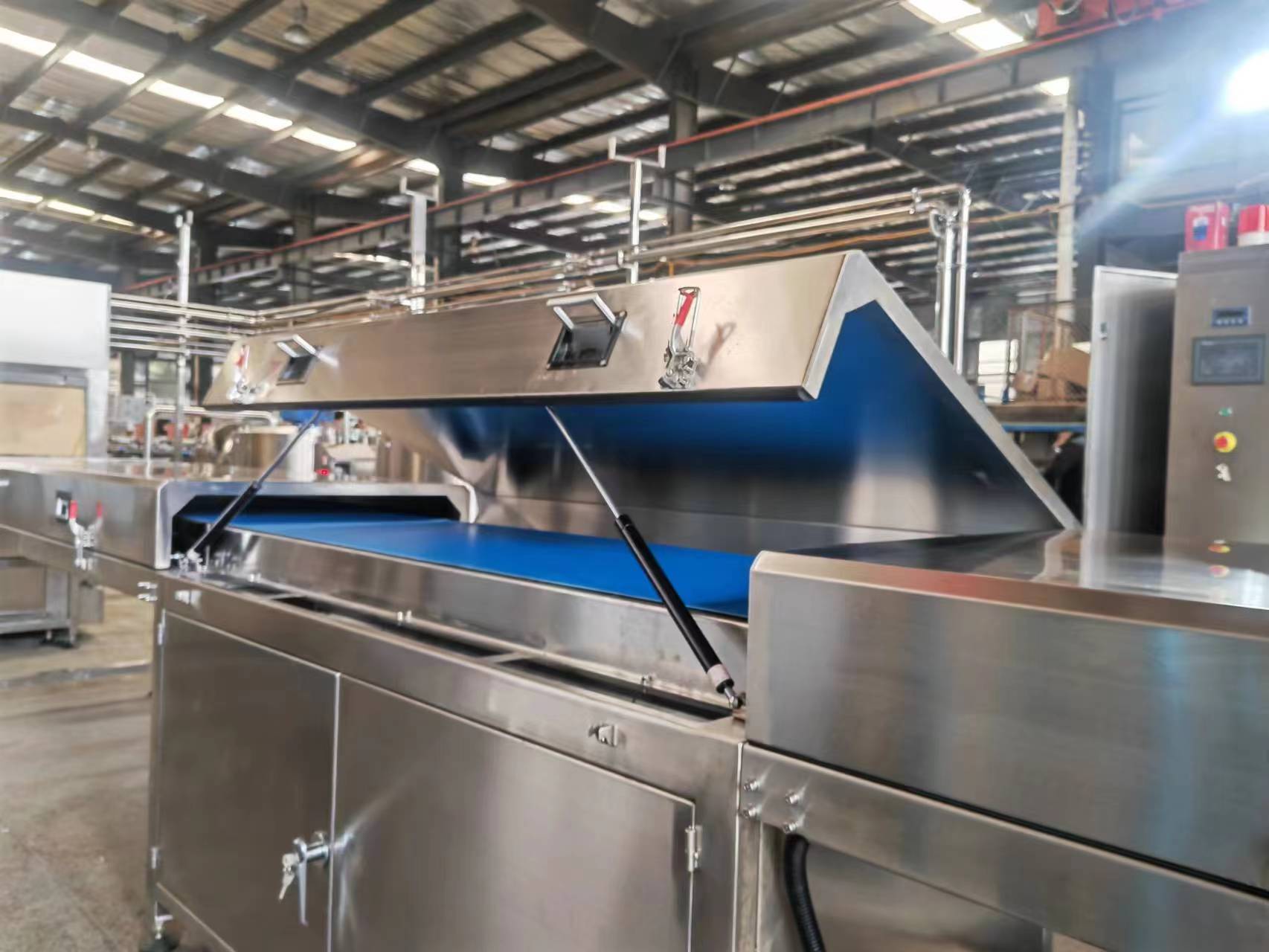

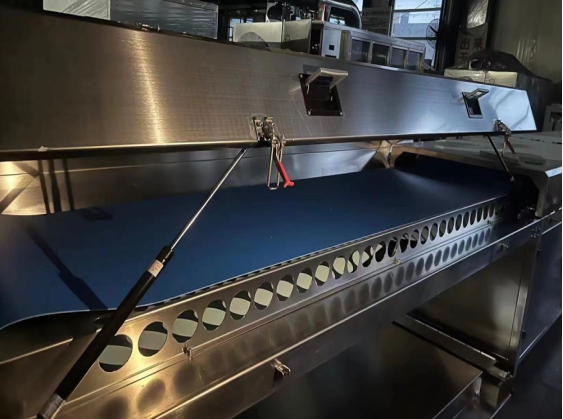

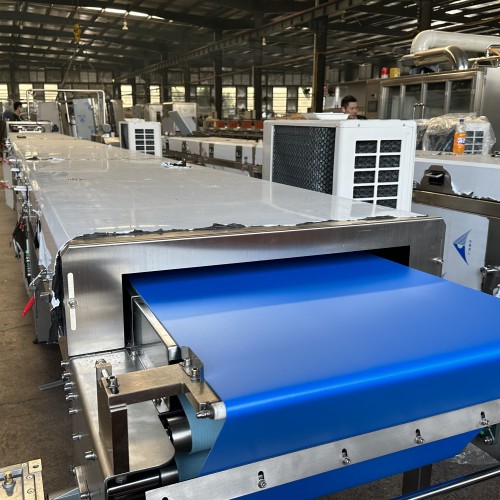

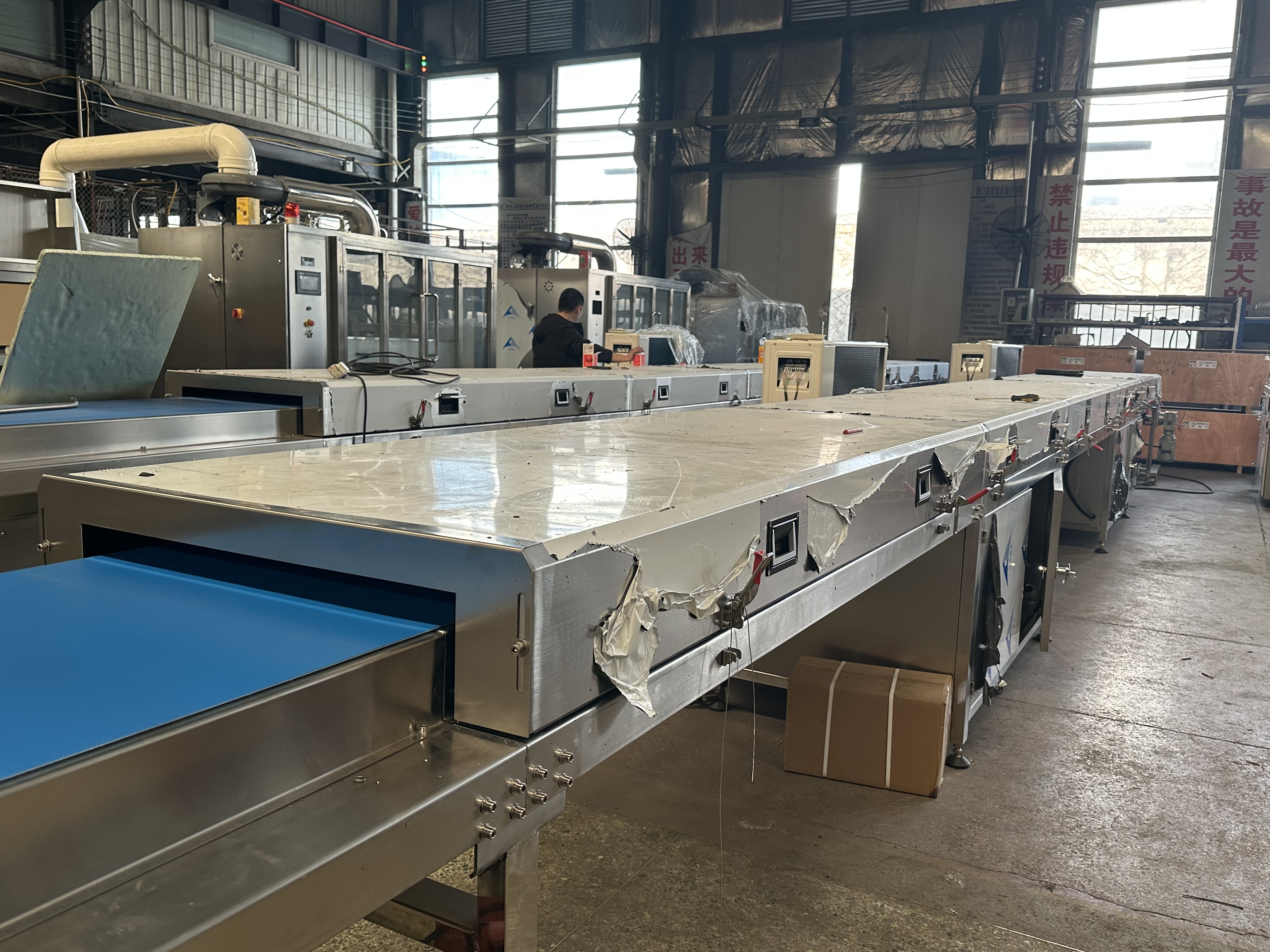

Chocoalte Cooling Tunnel

Air cooling tunnels are universally used for product cooling after molding. Such as filled candy, hard candy, taffy candy, chocolate and many other confectionery products. After conveying to cooling tunnel, products will be cooled by special cooling air. Cooling effect is stable and the whole process is clean. Import compressor from USA and frequency converter greatly improves the stability and durability of this device.

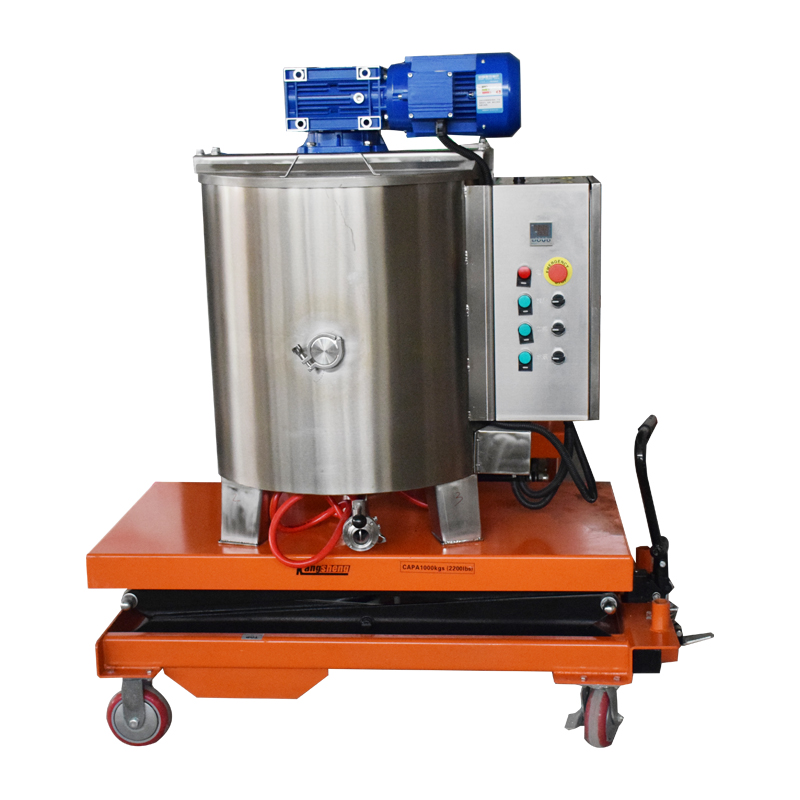

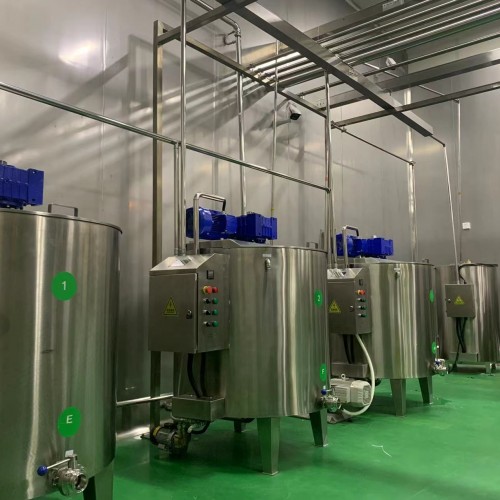

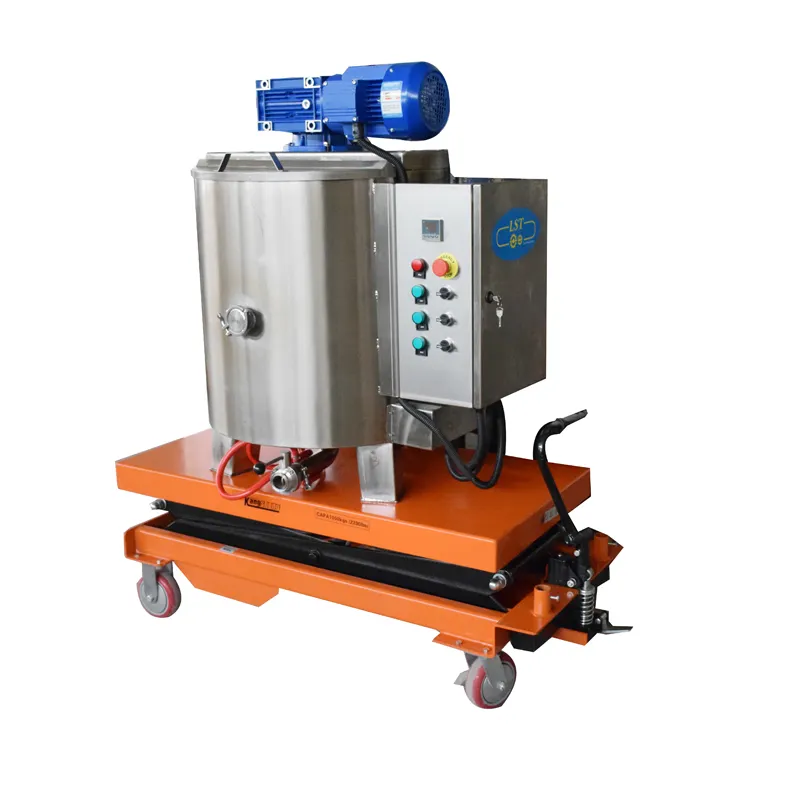

Chocolate Holding Tank

This tank is to store the fine grind chocolate mass with constant temperature controlled by automatic temperature control system. The chocolate thermal cylinder is an important equipment in the chocolate production process, mainly used as heat preservation container to store the after-grinding chocolate syrup,in order to meet the technological requirement and continuous production request.

The machine not only can realize temperature decrease, elevation of temperature, heat preservation, but also has the function of degasification, air sweetening, dehydration as well as to prevent pulp fat separation and so on .

●Application

●Parameter

Chocolate Enrober：

Model	Belt width	Belt speed	Total power	Dismension(outside)
TC-E400Q	400mm	0-8m/min	16kw	17008001600mm
TC-E600Q	600mm	0-8m/min	16kw	180011001600mm
TC-E900Q	900mm	0-8m/min	16kw	240015501800mm
TC-E1200Q	1200mm	0-8m/min
TC-E1500Q	1500mm	0-8m/min

400mm*10m Chocoalte Cooling Tunnel:

Model	LQ-C 400	LQ-C 900	LQ-C 1000	LQ-C 1500
Conveyor width	400mm	900mm	1000mm	1500mm
Conveyor speed	0-8m/min	0-8m/min	0-8m/min	0-8m/min
Total power	12kw 380V/400V	15kw 380V/400V	15kw 380V/400V	15kw 380V/400V
Net weight	2100kg	2400kg	2500kg	3000kg
Material	201	201	201	201
Cooling unit	1*3P	2*5P	2*5P	4*5P
Main motor	2.2KW	3KW	3KW	5KW
Belt type	1.5mm thickness White PU belt	1.5mm thickness White PU belt	1.5mm thickness White PU belt	1.5mm thickness White PU belt
Cooling temperature	5℃-10℃	5℃-10℃	5℃-10℃	5℃-10℃
Temperature decrease	20℃-40℃	20℃-40℃	20℃-40℃	20℃-40℃

Chocolate Holding Tank:

Model	Capacity	Heating Power	Motor Power	Gross Weight	Dimension	Volume
BWG-50	50L	3KW	0.75KW	103KG	760600750MM	0.342m³
BWG-150	150L	6KW	1.1KW	300KG	ᶲ770 110010001900mm	2.09m³
BWG-100+300	100+300L	6KW	1.1KW	400KG	ᶲ830 140011001600mm	2.5m³
BWG-500	500L	6KW	2.2KW	560KG	ᶲ900 137011601800mm	2.9m³
BWG-1000	1000L	6KW	2.2KW	650KG	ᶲ1200 160013002050mm	4.3m³
BWG-2000	2000L	12KW	5.5KW	800KG	ᶲ1600 198016002200mm	7m³
BWG-3000	3000L	12KW	5.5KW	960KG	200017002200MM	7.48m³
